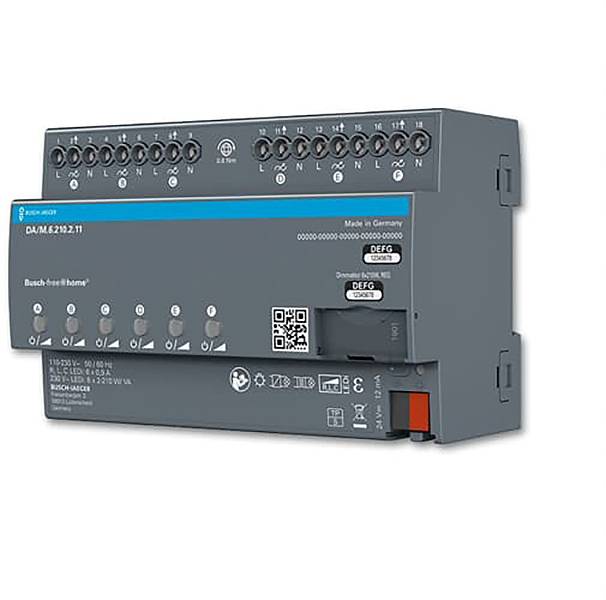

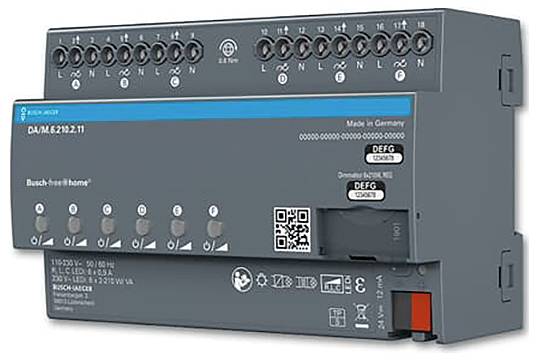

Busch-Jaeger 2CKA006220A0730 Dimmer acutator Suitable for light bulbs: LED bulb, Energy saving bulb, Light bulb, Halogen
EAN:
Part number:
Item no:
Technical specifications
- Design: Dimming actuator
- Mounting type: REG
- Protection class (IP) IP20
- Width in division units: 8
- Mains frequency: 50/60 Hz.
- KNX bus system: No.
- Bus system LON: No.
- Bus system Powernet: No.
- Other bus systems: Other
- Bus system KNX radio: No.
- Bus system wireless bus: No.
- Bidirectional radio: Yes
- On-site/manual operation: Yes
- With LED indicator: No.
- Output power 210..600 W
- With bus connection: No.
- Bus module removable: No.
- Min Depth of the device socket 58 mm
- Number of outputs: 6
- Load start: Universal
- Voltage 110..230 V
- Product type
Dimmer acutator
- Operating voltage
230 V
- Power rating (min.)
2 W
- Power rating (max.)
800 W
- Suitable for light bulbs
LED bulb
Energy saving bulb
Light bulb
Halogen lamp
- Switching capacity (LED)
800 W
- Switching capacity (light bulbs)
800 W
- Factory colour
Multicolour
- Dim
(W x H x D) 100 x 100 x 150 mm
- Width
100 mm
- Height
100 mm
- Depth
150 mm
- Mounting type
REG
- Weight
1000 g
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3547872 Busch-Jaeger 2CKA006220A0730 Dimmer acutator Suitable for light bulbs: LED bulb, Energy saving bulb, Light bulb, Halogen
Description
Multi-channel universal dimming actuator optimized for dimming retrofit LED lamps (Ledi).
Also suitable for dimming light bulbs, low voltage halogen lamps with conventional or electronic transformers, 230 V halogen lamps and dimmable halogen energy saving lamps.
Automatic load detection (can be deactivated).
Separate N-connection per channel.
Parallel connection of the outputs for increasing the output power possible.
Outputs can be switched in parallel as desired.
Minimum load: 2W
Manual operation on the device is also possible without bus voltage or in unprogrammed state.
The device can also be programmed without a 230 V supply voltage supplied (only supplied bus voltage).
With integrated bus coupler.
Rated power at 230 V~ Mains voltage:
-230 V~ Light bulbs and halogen lamps 6 x 210 W/VA to 1 x 800 W/VA.
-Dimmable 230 V~ Ledi:6 x 210 W/VA to 1 x 800 W/VA in phase section, 6 x 80 W/VA to 1 x 240W/VA in phase section.
-Inductive L-transformers with LED/low-voltage halogen lamp: 6 x 210 W/VA up to 1 x 800 W/VA.
-Electronic C-transformers with LED/low-voltage halogen lamp: 6 x 210 W/VA to 1 x 800 W/VA.
-Electronic LC-transformers with LED/low-voltage halogen lamp: 6 x 80 W/VA up to 1 x 240W/VA.
Programming only when the bus voltage is applied via the System Access Point Web interface.
Recommended: Always use light bulbs of one type and manufacturer.
Product line: Busch-free@home®
