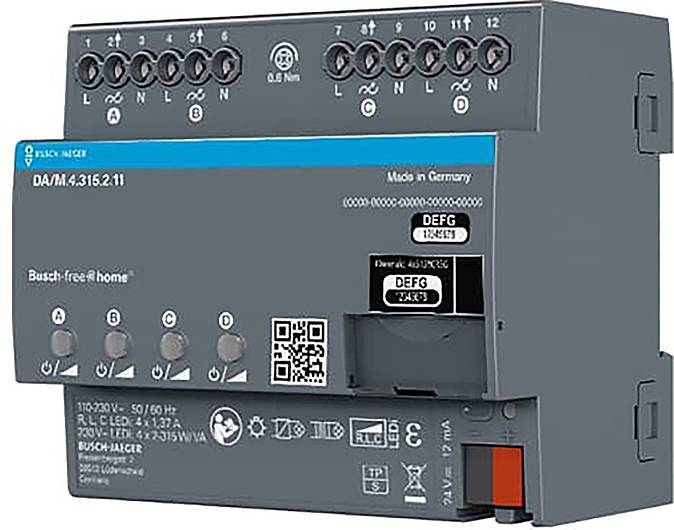

Image similar
Busch-Jaeger 2CKA006220A0837 Dimmer acutator Suitable for light bulbs: Light bulb, Energy saving bulb, Halogen lamp, LED
EAN:
Part number:
Item no:
Technical specifications
- Design: Dimming actuator
- Mounting type: REG
- Protection class (IP) IP20
- Width in division units: 8
- Mains frequency: 50/60 Hz.
- KNX bus system: No.
- Bus system LON: No.
- Bus system Powernet: No.
- Other bus systems: Other
- Bus system KNX radio: No.
- Bus system wireless bus: No.
- On-site/manual operation: Yes
- With LED indicator: No.
- With bus connection: No.
- Bus module removable: No.
- Min Depth of the device socket 58 mm
- Number of outputs: 4
- Load start: Universal
- Voltage 110..230 V
- Product type
Dimmer acutator
- Power rating (min.)
2 W
- Suitable for light bulbs
Light bulb
Energy saving bulb
Halogen lamp
LED bulb
- Factory colour
Multicolour
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3548403 Busch-Jaeger 2CKA006220A0837 Dimmer acutator Suitable for light bulbs: Light bulb, Energy saving bulb, Halogen lamp, LED
Description
Multi-channel universal dimming actuator optimized for dimming retrofit LED lamps (Ledi).
Also suitable for dimming light bulbs, low voltage halogen lamps with conventional or electronic transformers, 230 V halogen lamps and dimmable halogen energy saving lamps.
Automatic load detection (can be deactivated).
Separate N-connection per channel.
Parallel connection of the outputs for increasing the output power possible.
Outputs can be connected in groups in parallel.
Minimum load: 2W
Manual operation on the device is also possible without bus voltage or in unprogrammed state.
The device can also be programmed without a 230 V supply voltage supplied.
With integrated bus coupler.
Rated power at 230 V~ Mains voltage 230 V~:
-Glow and halogen lamps: 4 x 315 W/VA up to 2 x 500 W/VA in phase section, 4 x 120 W/VA up to 2 x 200 W/VA in phase section.
-Dimmable 230 V~ Ledi:4 x 315 W/VA to 2 x 500 W/VA in phase section, 4 x 120 W/VA to 2 x 200 W/VA in phase section.
-Inductive L-transformers with LED/low voltage halogen lamp: 4 x 315 W/VA up to 2 x 500W/VA.
-Electronic C-transformers with LED/low-voltage halogen lamp: 4 x 315 W/VA to 2 x 500 W/VA.
-Electronic LC transformers with LED/low voltage halogen lamp: 4 x 120 W/VA to 2 x 200 W/VA.
8TE/1 TE ? 18 mm.
Recommended: Always use light bulbs of one type and manufacturer.
Product line: Busch-free@home®
This text is machine translated.
