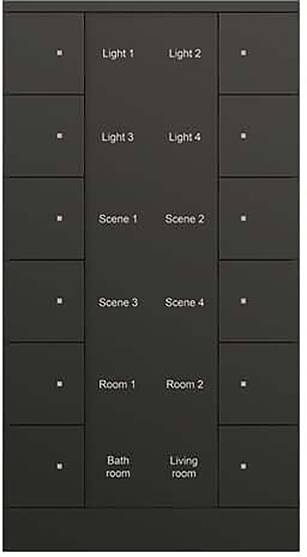

Busch-Jaeger 2CKA006330A0079 Console SB/U12.0.1-885
EAN:
Part number:
Item no:
Technical specifications
- Mounting type: Flush-mounted
- Material: Plastic
- Colour, black
- Protection class (IP) IP20
- Surface protection: Painted
- Design of surface: Matt
- KNX bus system: Yes
- Bus system LON: No.
- Bus system Powernet: No.
- Bus system wireless bus: No.
- With LED display: Yes
- With bus connection: Yes
- Material quality: Thermoplastic
- RAL number (similar): 9005
- With marking field: Yes
- With theft/dismantling protection: Yes
- Number of operating points: 12
- With display: No.
- With room thermostat: No.
- With infrared sensor: No.
- Product type
Console
- Data transfer (Smart Home)
Wired
- Mounting type
Flush mount
- Hub
Not required, optional for remote access
- Features
Dimmer function
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3548404 Busch-Jaeger 2CKA006330A0079 Console SB/U12.0.1-885
Description
With integrated KNX bus coupler. With labeling field. Support for KNX functions with innovative color concept (yellow=illumination, blue=blind, orange=RTR, magenta=scene and white=neutral/no function assignment) or standard lighting red/green. Button function: Switch / dim / blind / send value / light scenes etc. With integrated temperature sensor. Number of bus nodes: 1
