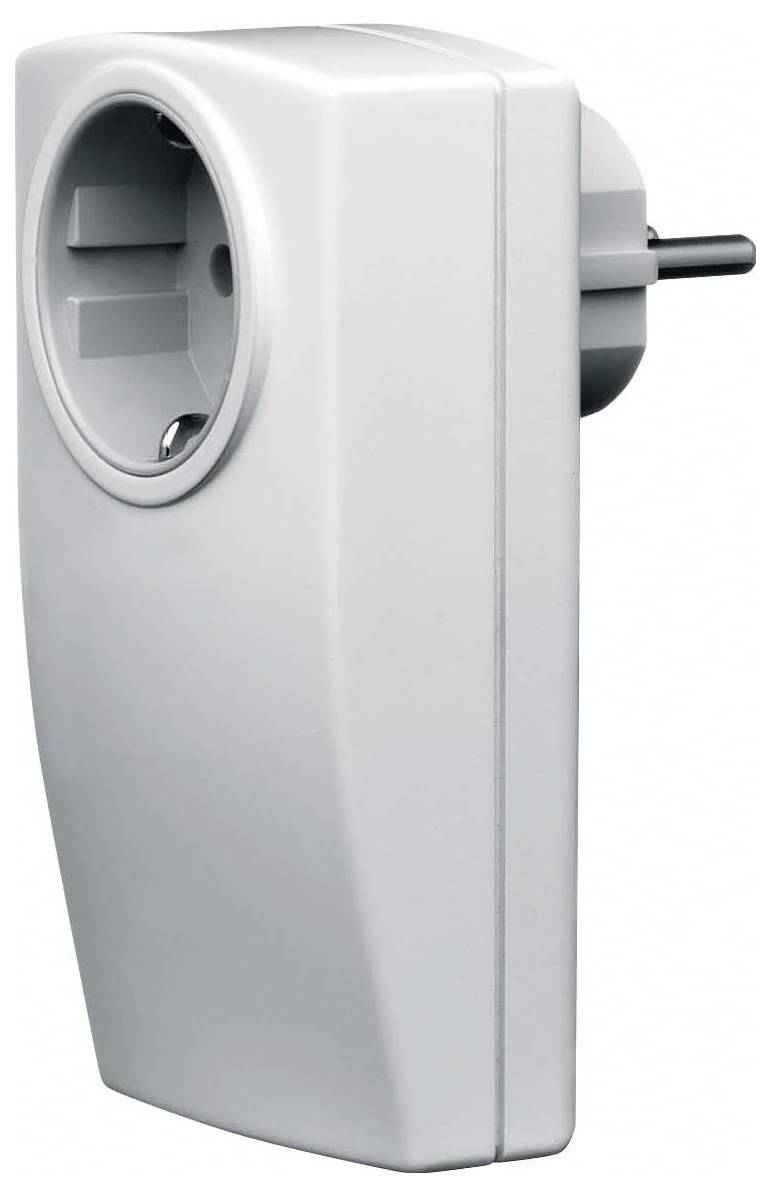

Busch-Jaeger 2CKA006710A0004 Wireless in-line socket + built-in switch
EAN:
Part number:
Item no:
Technical specifications
- Mounting type: Surface-mounted
- Material: Plastic
- Colour: white
- Surface protection: Untreated
- Transparent: No.
- Surface design: Glossy
- Halogen-free: Yes
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- Material quality: Thermoplastic
- Mounting method: Clamp mounting
- RAL number (similar): 9016
- Suitable for protection class (IP): IP20
- Suitable for switches: Yes
- Suitable for dimmer: No.
- Suitable for shutter switch no.
- Suitable for pulse pressure: No.
- Suitable for shutter switch no.
- Suitable for blinds/shutter switch: No.
- In the case: Yes
- In the tube base housing: No.
- As module/board: No.
- Power supply 230 V AC
- Scan mode: Yes
- Switching operation: Yes
- With radio transmitter: No.
- With radio code: No.
- With wireless switch: Yes
- Radio frequency: 2.4 MHz
- Rolling code system: No.
- Number of relays: 1
- Product type
Wireless in-line socket
- Features
+ built-in switch
- Operating voltage
230 V AC
- Power rating
1.380 W
- Length
77 mm
- Width
65 mm
- Height
122 mm
- Dim
(L x W x H) 77 x 65 x 122 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3548066 Busch-Jaeger 2CKA006710A0004 Wireless in-line socket + built-in switch
Description
Plug-in device to switch electric consumers up to 1,380 W/VA. Thermal actuators can be controlled to control heating. Not for electro-heating devices. Connected load can be switched on/off via a micro-switch. Transmission/reception frequency 2.4 GHz Range approx. 100 m (in open air) Nominal voltage 230 V~, + 10 % / - 10 % Outputs: 1 NO, isolated. Output voltage: 230 V Rated current: 6 AX rated power: 1,380 W/VA (non-LED loads). Rated power 100 W/VA (LED loads). Rated frequency: 50 Hz / 60 Hz Power loss: 1 W Protection type Device: IP 20 Temperature range Device: -5 °C - 45 °C Dimensions (H x W x D): 122 mm x 65 mm x 77 mm
