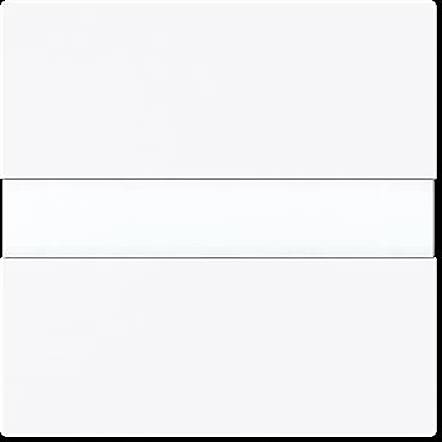

Image similar
Busch-Jaeger 2CKA006800A3144 Flush mount Motion detector Relay Non-stop lighting mode
EAN:
Part number:
Item no:
Technical specifications
- Design: Motion detector
- Mounting type: Flush-mounted
- Colour: white
- Halogen-free: No.
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- Material quality: Thermoplastic
- RAL number (similar): 9016
- Suitable for protection class (IP): IP20
- Max. Range to one side: 3 m.
- Max. Range: Front 5 m
- Horizontal coverage angle: 10..170°
- Min Switch-on time 60 seconds
- Max. duty cycle 10 min
- With orientation light: No.
- Product type
Motion detector
- Mounting type
Flush mount
- Contact type
Relay
- Similar RAL
9016
- Height
21 mm
- features
Non-stop lighting mode
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3548957 Busch-Jaeger 2CKA006800A3144 Flush mount Motion detector Relay Non-stop lighting mode
Description
Motion detector key switch combination.
For brightness and movement-dependent switching of lights.
Push button function is possible at any time
Detection with animal trail.
With indicator LED for when manual operation is required.
Compatible with all Flex inserts.
Adjusting elements on the rear.
2 Control for setting the brightness switching threshold and lag time.
Extension of the detection area by main/extension combination.
Switch on/off option via button input on flush mounting
Adjustable operating mode: Semi-automatic, manual switching on, automatic (time- and movement-controlled) switching off.
With continuous/continuous-off function.
Monitoring density: 9 sectors with 28 switching segments.
Switch-off delay: Approx. 1 min. - 10 minutes
For relay insert Flex, 1-way, 64811 U.
For e-Contact-use Flex, 1-way, 64814 U.
For relay insert Flex, 2-way, 64821 U.
For LED push-button dimmer use Flex, 1-way, 64851 U.
For extension use Flex, 64891 U.
Mounting height 21 mm
Please order the appropriate UP-insert separately.
The range specifications refer to an ambient temperature of 21 °C.
Design line: Busch-art linear®
Design line Variant: Busch-art linear®, Busch-art linear® - with decorative ring, Busch-art linear® - real material
Product line: Busch-Flextronics®
