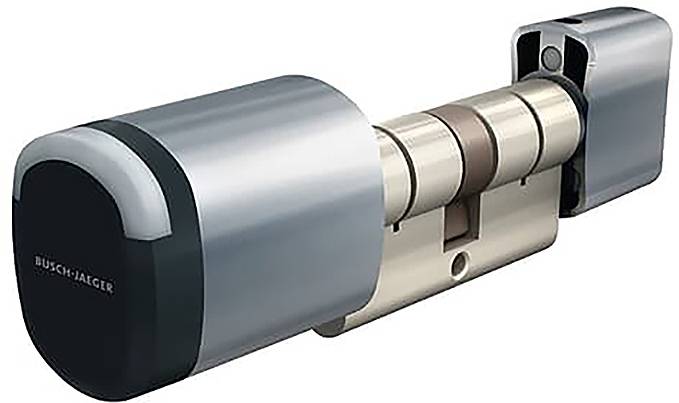

Busch-Jaeger 2CKA008300A0697 Electronic tumbler
EAN:
Part number:
Item no:
Technical specifications
- Height: 38.4 mm
- Width 31.5 mm
- Depth: 202 mm
- Design: Reader
- Mounting type: Other
- Material: Metal
- Colour, black
- Protection class (IP) IP66
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- Interface type: Other
- Network compatible: Yes
- Stand-alone: No.
- PC connection: No.
- Max. Number of doors: 1
- Reading procedure: Data carrier
- Signal output: Light signal
- Operating temperature 35 °C .55 °C
- Power over Ethernet (PoE): No
- VdS class: Without
- Product type
Electronic tumbler
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3548969 Busch-Jaeger 2CKA008300A0697 Electronic tumbler
Description
Cylinder available for different door thicknesses.
Profile type: Euro standard profile cylinder with internal knob.
Special variant for doors with drill and pulling protection.
Battery life-span: Up to 130,000 openings.
Supported transponder types: Mifare DESFire transponder (order no. D081WH-03, D081GY-03 AND D081BK-03).
In addition to the Smart Access Point Pro, the maintenance card (article no. D080MC-03), and the mounting tool (order no. D080MT-03) is required.
Encrypted communication with the Busch-AccessControl transponder (no. D081xx-03) as well as the construction site and maintenance cards (Article No. D080MC-03 and D080CC-03).
Integrated LED status indication with acoustic feedback
Colour of the cylinder head: Satin chrome black.
Radio range (outdoors): 10 m.
Extension of the radio range by use of RF/IP gateways (Art. No. D04031-03) or the RF repeater (Part No. D04021-03).
Measured-open knob 22.3 mm x 47 mm x 39 mm.
Cylinder base dimensions: 30 mm to 140 mm (depending on the type ordered).
Battery included.
: Busch AccessControl
