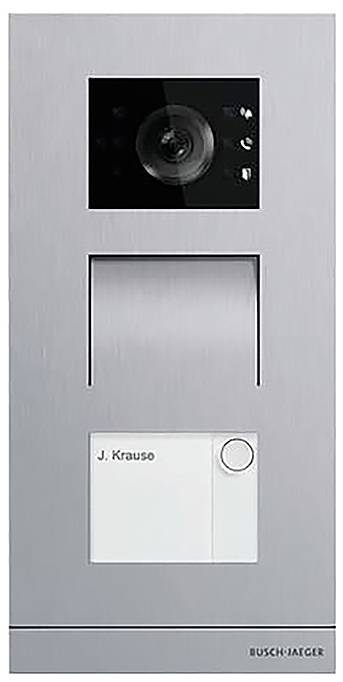

Busch-Jaeger 2TMA130010X0019 Camera LAN Camera Stainless steel
EAN:
Part number:
Item no:
Technical specifications
- Height: 277 mm
- Width 135 mm
- Depth: 29 mm
- With cover: No.
- Installation depth: 18 mm
- Mounting type: Flush-mounted
- Colour: Stainless steel
- Protection class (IP) IP54
- Mounting width 135 mm
- Mounting height 277 mm
- Impact strength: IK07
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- Surface treatment: Brushed
- Installation technology: Network technology
- Aperture angle for camera: 139°
- Manually adjustable camera: No.
- Number of call/ring buttons: 1
- Operating mode: Push button
- Modular design: Yes
- With information plate: Yes
- With digital door code: No.
- With audio induction loop: Yes
- Anti-vandalism protection: Yes
- With camera: Yes
- Material front: Stainless steel
- Front panel height 277 mm
- Front panel width 135 mm
- Product type
Camera
- Component
Camera
- Transfer type
LAN
- Mounting type (interior)
Flush mount
- Mounting type (outdoor)
Flush mount
- Material (external)
Non-corrosive steel
- Factory colour
Stainless steel
- Max. viewing angle hor.
111°
- Vertical viewing angle
73°
- Width
135 mm
- Height
277 mm
- Depth
29 mm
- Suitable for
Außenstation
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3551039 Busch-Jaeger 2TMA130010X0019 Camera LAN Camera Stainless steel
Description
Video camera with automatic day/night switchover and infrared LEDs for illumination of the night recordings.
HD camera (1280 x 720 pixels)
Angle of view diagonal/horizontal/vertical: 139°/111°/73°.
Integrated status display via LED symbols (meets DIN 18040).
Button module is backlit.
With integrated voice feedback (can be deactivated).
For surface mounting with 41383S-x-03.
For flush mounting with 41383F-x-03.
For mounting in concealed facades also with 41383PB-03.
Power supply via Power over Ethernet (PoE) 802.3af.
Alternative power supply 24 V DC, 330 mA.
Connection option for an electric door opener (18 V, 4 A pulse, max. 250 mA continuous).
Potential-free door opener output (230 V AC, 3 A or 30 V DC, 3 A).
Alternative door opener function with REG IP switch actuator (H8304-03).
Connection option for external door sensor to detect the state of the door after a door opening.
Front plate made of 3 mm stainless steel or aluminum.
Enclosed labeling foil and removal tool.
Product line: Busch-Welcome® IP
This text is machine translated.
HD camera (1280 x 720 pixels)
Angle of view diagonal/horizontal/vertical: 139°/111°/73°.
Integrated status display via LED symbols (meets DIN 18040).
Button module is backlit.
With integrated voice feedback (can be deactivated).
For surface mounting with 41383S-x-03.
For flush mounting with 41383F-x-03.
For mounting in concealed facades also with 41383PB-03.
Power supply via Power over Ethernet (PoE) 802.3af.
Alternative power supply 24 V DC, 330 mA.
Connection option for an electric door opener (18 V, 4 A pulse, max. 250 mA continuous).
Potential-free door opener output (230 V AC, 3 A or 30 V DC, 3 A).
Alternative door opener function with REG IP switch actuator (H8304-03).
Connection option for external door sensor to detect the state of the door after a door opening.
Front plate made of 3 mm stainless steel or aluminum.
Enclosed labeling foil and removal tool.
Product line: Busch-Welcome® IP
This text is machine translated.
