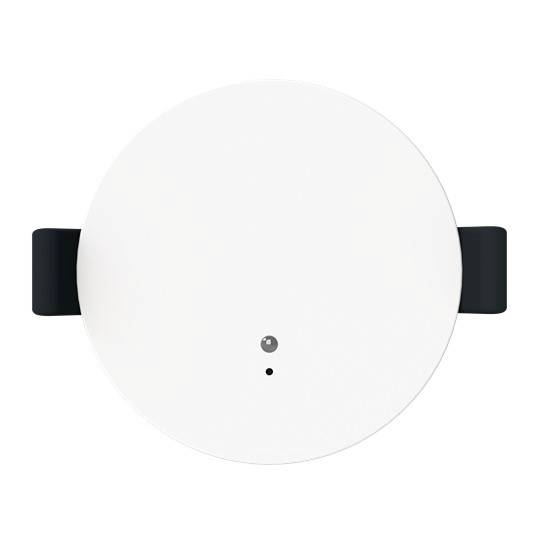

Busch-Jaeger 2TYZ510505G0611 Motion detector
EAN:
Part number:
Item no:
Technical specifications
- KNX bus system: Yes
- KNX-RF bus system (radio): No.
- KNX Secure bus system: No.
- KNX Secure RF bus system (radio): No.
- Bus system wireless bus: No.
- Bus system LON: No.
- Bus system Powernet: No.
- With bus connection: Yes
- Transparent: No.
- Min Depth of the device socket 40 mm
- Optimum mounting height 2 m.
- Max. Range to one side: 6 m.
- Max. Range: Front 5 m
- Installation depth: 40 mm
- Product type
Motion detector
- Similar RAL
9005
- Width
80 mm
- Height
80 mm
- Dim
(W x H x D) 80 x 80 x 40 mm
- Channels
4
- Depth
40 mm
- Recess depth
40 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3834476 Busch-Jaeger 2TYZ510505G0611 Motion detector
Description
Motion detector with integrated brightness sensor. Detector application with 2 switch-off levels and integrated monitoring function. Detection range (for mounting height 2.5 m, 3 m and 4 m): Circular, Ø: Max. 10 m, 12 m . 5.8 GHz HF-Technology. 2-channel Protection class IP55 Constant light switch with up to two independent channels. Constant light switch with max. 2 outputs for the brightness-dependent switching of two light bands in the area. With integrated KNX coupler. Suitable for suspended ceilings (hole size: Ø 68 mm), surface mounting in combination with PMA/A1.xx-88x or British Standard (PMA/K2.1-88x) or VDE flush mounted socket (PMA/K1.xx.-88x). Product line: KNX
