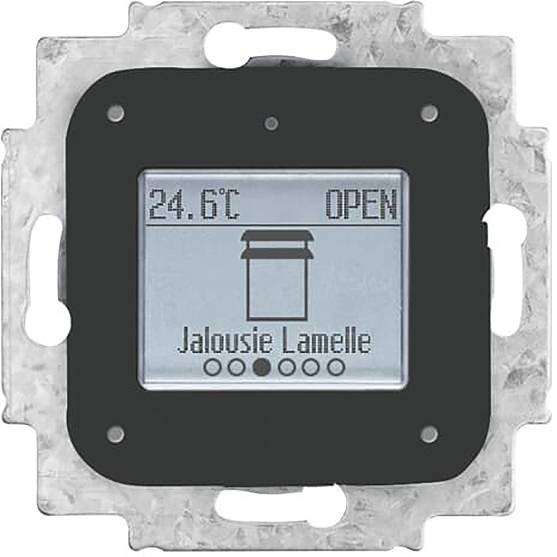

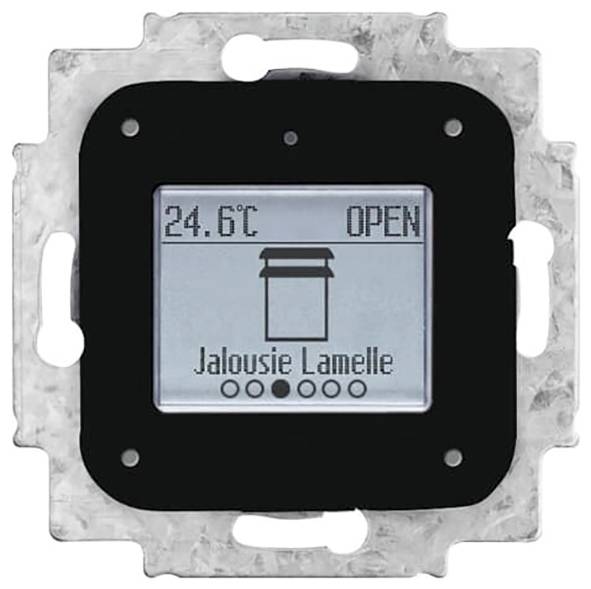

Busch-Jaeger KNX 2CKA006115A0453 Console 6108/60
EAN:
Part number:
Item no:
Technical specifications
- Mounting type: Flush-mounted
- Material: Plastic
- Colour, black
- Protection class (IP) IP20
- Surface protection: Untreated
- Design of surface: Matt
- KNX bus system: Yes
- Bus system LON: No.
- Bus system Powernet: No.
- Other bus systems: Without
- Bus system KNX radio: No.
- Bus system wireless bus: No.
- With LED indicator: No.
- With bus connection: No.
- Min Depth of the device socket 33 mm
- Material quality: Thermoplastic
- With marking field: Yes
- With theft/dismantling protection: No.
- Number of operating points: 4
- Number of keys: 1
- With display: Yes
- With infrared sensor: No.
- Product type
Console
- Series
KNX
- Data transfer (Smart Home)
Wired
- Channels
6
- Mounting type
Flush mount
- Hub
Not required, optional for remote access
- Features
Test function
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3551896 Busch-Jaeger KNX 2CKA006115A0453 Console 6108/60
Description
Control element with a maximum of 6 operating functions and an RTR extension (slave).
Primary function for calling the main function.
Status bar for displaying/displaying the operating or RTR function.
Operated via central disc 6108/61-xxx.
With an integrated temperature sensor.
With temperature display IST value.
With temperature display TARGET value.
Universal input with:
- Max. 5 binary inputs
- 4 binary inputs and 1 analog input for controlling sensors with external power supply 1-10V/0-10V
- 2 binary inputs and 1 analog input for controlling sensors with external power supply 1-10V/0-10V and an external temperature sensor PT1000 / 6226T / DP4-T-1.
The bus connection takes place via the supplied bus terminal.
From ETS4: Commissioning via native ETS application.
Design line: Platform 63, Busch-Duro 2000® SI, Reflex SI, Busch-balance® SI, future® linear, Busch-aXcent®, solo®, pure stainless steel, karat®, Busch-dynasty®, Alpha
Design line variant: Busch-Duro 2000® SI, Busch-Duro 2000® SI Linear, Reflex SI, Reflex SI Linear, future®, future® linear, Busch-aXcent®, pure Busch-aXcent®, Alpha nea®, Alpha exclusive®
Product line: KNX
This text is machine translated.
Primary function for calling the main function.
Status bar for displaying/displaying the operating or RTR function.
Operated via central disc 6108/61-xxx.
With an integrated temperature sensor.
With temperature display IST value.
With temperature display TARGET value.
Universal input with:
- Max. 5 binary inputs
- 4 binary inputs and 1 analog input for controlling sensors with external power supply 1-10V/0-10V
- 2 binary inputs and 1 analog input for controlling sensors with external power supply 1-10V/0-10V and an external temperature sensor PT1000 / 6226T / DP4-T-1.
The bus connection takes place via the supplied bus terminal.
From ETS4: Commissioning via native ETS application.
Design line: Platform 63, Busch-Duro 2000® SI, Reflex SI, Busch-balance® SI, future® linear, Busch-aXcent®, solo®, pure stainless steel, karat®, Busch-dynasty®, Alpha
Design line variant: Busch-Duro 2000® SI, Busch-Duro 2000® SI Linear, Reflex SI, Reflex SI Linear, future®, future® linear, Busch-aXcent®, pure Busch-aXcent®, Alpha nea®, Alpha exclusive®
Product line: KNX
This text is machine translated.
