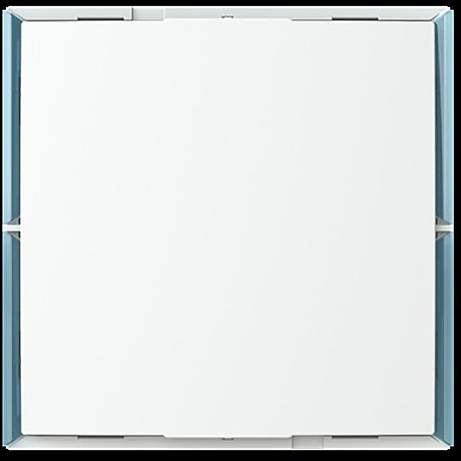

Image similar
Busch-Jaeger KNX 2CKA006115A0505 Console KK/U4.55.11
EAN:
Part number:
Item no:
Technical specifications
- Mounting type: Flush-mounted
- Material: Plastic
- Colour: white
- Protection class (IP) IP20
- KNX bus system: Yes
- Bus system LON: No.
- Bus system Powernet: No.
- Other bus systems: Without
- Bus system KNX radio: No.
- Bus system wireless bus: No.
- With LED display: Yes
- With bus connection: No.
- Min Depth of the device socket 33 mm
- Material quality: Thermoplastic
- With labeling field: No.
- Number of operating points: 4
- Number of keys: 4
- Product type
Console
- Series
KNX
- Data transfer (Smart Home)
Wired
- Channels
4
- Mounting type
Flush mount
- Factory colour
White
- Width
150 mm
- Height
50 mm
- Depth
150 mm
- Dim
(W x H x D) 150 x 50 x 150 mm
- Hub
Not required, optional for remote access
- Weight
1000 g
- Features
Touch function
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3547877 Busch-Jaeger KNX 2CKA006115A0505 Console KK/U4.55.11
Description
Operating element Busch-Trevi keypad.
Can be combined with:
- Busch-Flextronics® inserts
- KNX: BA/U1.0.XX.
- Free@home: BAU-F-0.xx
Busch-Flextronics® inserts:
In combination with Busch-Flextronics® inserts, the keypad is automatically configured as a fixed 1-way control element.
Exception: In the Flex 2-way relay insert, the device is set up as a 2-way control element.
The LED bars are fixed to the color "
White"
For orientation and "
Blue"
Parameterized for the status.
KNX/free@home:
Multi-functional keypad can be configured freely 1 - to 4-fold with acoustic feedback.
- Primary function
- Buzzer for acoustic feedback
- Support of functions/status through innovative RGB fiber optic concept
- Day/Night mode
- Orientation light
- Alarm function supported by optical fiber and acoustic feedback.
Operation by tapping or wiping the parameterized functions, e.g.:
- Switch
- Dim
- Blinds/shutters
- Scene.
Additional KNX functions:
- Built-in temperature sensor
- 5 pcs. Logic channels:
- Light scene actuator
- Logic gate
- Sequencer
- Staircase function.
Additional free@home functions:
- Built-in temperature sensor
- Built-in temperature controller
- Logic functions are provided via SysAP.
Design line: Busch-balance® SI, Busch-Trevion®
Product line: Busch-Flextronics®, Busch-free@home®, KNX
This text is machine translated.
