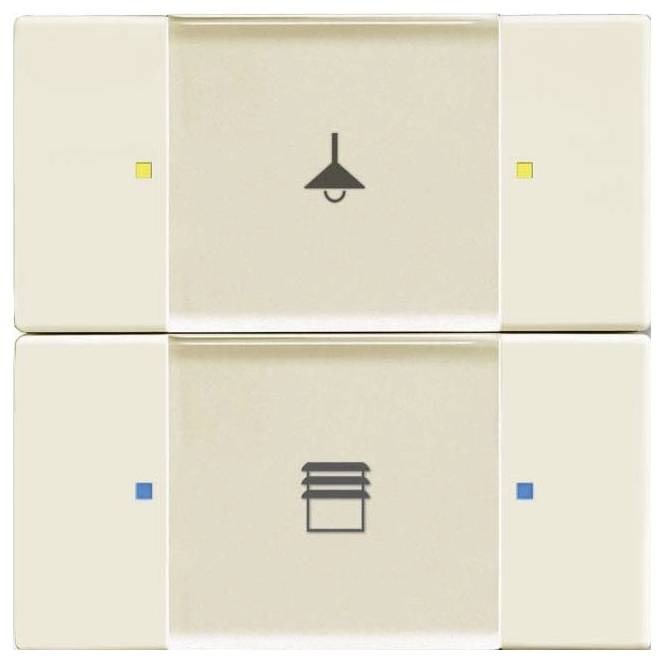

Busch-Jaeger KNX 2CKA006116A0207 Console 6126/02-82-500
EAN:
Part number:
Item no:
Technical specifications
- Mounting type: Flush-mounted
- Material: Plastic
- Colour: white
- Protection class (IP) IP20
- Surface protection: Untreated
- Surface design: Glossy
- KNX bus system: Yes
- Bus system Powernet: Yes
- Bus system wireless bus: No.
- With LED display: Yes
- Material quality: Thermoplastic
- RAL number (similar): 1013
- With marking field: Yes
- Number of operating points: 4
- With display: No.
- With room thermostat: No.
- With infrared sensor: No.
- Product type
Console
- Series
KNX
- Data transfer (Smart Home)
Wired
- Channels
10
- Mounting type
Flush mount
- Hub
Not required, optional for remote access
- Features
Dimmer function
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3549943 Busch-Jaeger KNX 2CKA006116A0207 Console 6126/02-82-500
Description
For Busch-Installation Bus® KNX 6120/12-101, 6120/13 and Busch-Powernet® KNX 6920/12, 6920/13 and 6920/40. With labeling field. Support for KNX functions with innovative color concept (yellow=illumination, blue=blind, orange=RTR, magenta=scene and white=neutral/no function assignment) or standard lighting red/green. Button function: Switch / dim / blind / send value / light scenes etc. Transparent labeling sheet with standard symbols included in the delivery. Incl. 10 logic channels (light scene actuator, sequence actuator, logic gate, etc.).
