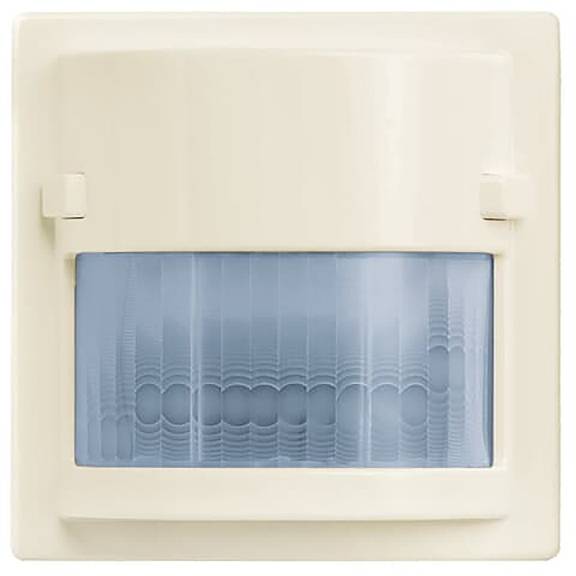

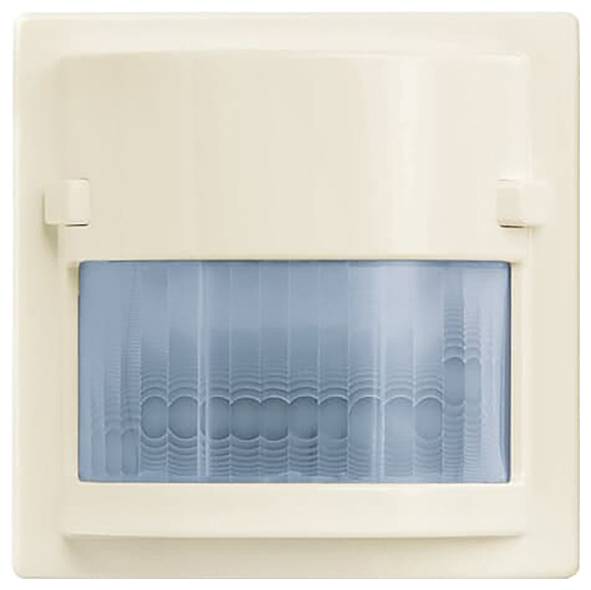

Image similar
Busch-Jaeger KNX 2CKA006132A0260 Monitoring sensor Max. range (open field) 10 m 6122/02-82
EAN:
Part number:
Item no:
Technical specifications
- Height: 63 mm
- Width 63 mm
- Depth: 40 mm
- Installation depth: 33 mm
- Design: Motion detector
- Mounting type: Flush-mounted
- Material: Plastic
- Colour: white
- Surface protection: Untreated
- Surface design: Glossy
- KNX bus system: Yes
- Bus system LON: No.
- Bus system Powernet: No.
- Other bus systems: Without
- Number of channels: 4
- Bus system KNX radio: No.
- Bus system wireless bus: No.
- With bus connection: No.
- Min Depth of the device socket 33 mm
- Material quality: Thermoplastic
- RAL number (similar): 1013
- Optimum mounting height 0.8 m.
- Max. Range to one side: 43953 m.
- Max. Range: Front 10 m
- Capturing field Diameter on floor: 6 m.
- Detection angle vertical: 40..-5°
- Horizontal coverage angle: 0..180°
- Operating mode switch: Yes
- Staircase monitoring: Yes
- Min Switch-on time 10 seconds
- Max. duty cycle 17 min
- Product type
Monitoring sensor
- Series
KNX
- Used at
Indoors
- Data transfer (Smart Home)
Wired
- Channels
4
10 m
- Mounting type
Flush mount
- Width
63 mm
- Height
63 mm
- Depth
40 mm
- Dim
(W x H x D) 63 x 63 x 40 mm
- Hub
Not required, optional for remote access
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3547843 Busch-Jaeger KNX 2CKA006132A0260 Monitoring sensor Max. range (open field) 10 m 6122/02-82
Description
For Busch-Installation Bus® KNX 6120/12-101, 6120/13 and Busch-Powernet® KNX 6920/12, 6920/13 and 6920/40. Motion detectors with up to 4 channels
Incl. 10 logic channels (light scene actuator, sequence actuator, logic gate, etc.).
For suitable cover frame see karat®, pure stainless steel, solo®, Busch-aXcent® or future® linear.
Design line: Platform 63, future® linear, solo®, karat®, Busch-dynasty®
Design line variant: Future®, future® linear
Product line: KNX
This text is machine translated.
Incl. 10 logic channels (light scene actuator, sequence actuator, logic gate, etc.).
For suitable cover frame see karat®, pure stainless steel, solo®, Busch-aXcent® or future® linear.
Design line: Platform 63, future® linear, solo®, karat®, Busch-dynasty®
Design line variant: Future®, future® linear
Product line: KNX
