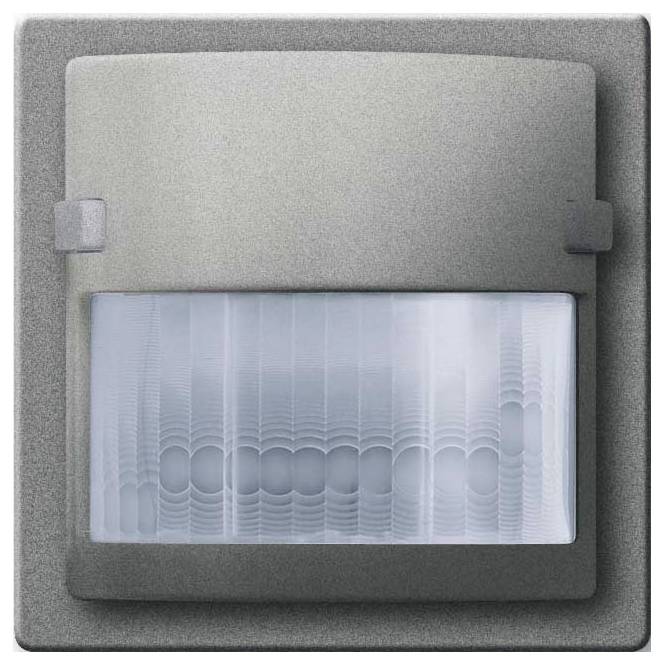

Busch-Jaeger KNX 2CKA006132A0290 Monitoring sensor 6122/02-803-500
EAN:
Part number:
Item no:
Technical specifications
- Design: Motion detector
- Mounting type: Flush-mounted
- Material: Plastic
- Colour: grey
- KNX bus system: Yes
- Bus system Powernet: Yes
- Number of channels: 4
- Material quality: Thermoplastic
- Optimum mounting height 43831 m.
- Max. Range to one side: 43953 m.
- Max. Range: Front 10 m
- Angle of coverage vertical -5°
- Horizontal coverage angle 0°
- Operating mode switch: Yes
- Staircase monitoring: Yes
- Min Switch-on time 10 seconds
- Max. duty cycle 17 min
- Product type
Monitoring sensor
- Series
KNX
- Data transfer (Smart Home)
Wired
- Channels
4
- Mounting type
Flush mount
- Hub
Not required, optional for remote access
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3550936 Busch-Jaeger KNX 2CKA006132A0290 Monitoring sensor 6122/02-803-500
Description
For Busch-Installation Bus® KNX 6120/12-101, 6120/13 and Busch-Powernet® KNX 6920/12, 6920/13 and 6920/40. Motion detectors with up to 4 channels Incl. 10 logic channels (light scene actuator, sequence actuator, logic gate, etc.).
