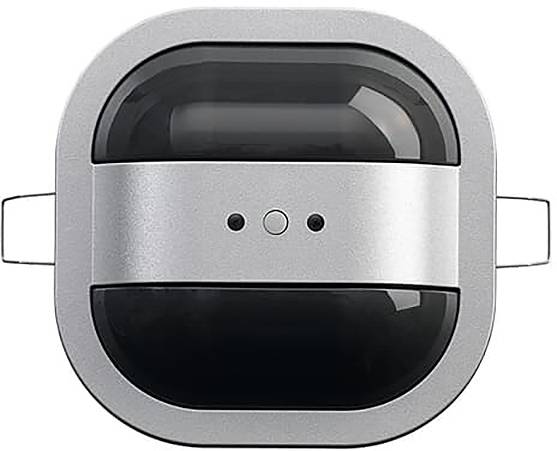

Busch-Jaeger KNX 2CKA006132A0334 Occupancy sensor Max. range (open field) 12 m 6131/30-183
EAN:
Part number:
Item no:
Technical specifications
- Height: 91 mm
- Width 91 mm
- Depth: 45 mm
- Mounting depth: 22 mm
- Design: Presence detectors
- Mounting type: Flush-mounted
- Material: Plastic
- Colour: Aluminium
- Surface protection: Painted
- Transparent: No.
- Design of surface: Matt
- KNX bus system: Yes
- Bus system LON: No.
- Bus system Powernet: No.
- Other bus systems: Without
- Number of channels: 2
- Bus system KNX radio: No.
- Bus system wireless bus: No.
- Wireless bidirectional: No
- With bus connection: No.
- Min Depth of the device socket 22 mm
- Material quality: Thermoplastic
- RAL number (similar): 9006
- Response brightness adjustable: Yes
- Optimum mounting height 2 m.
- Max. Range to one side: 12 m.
- Max. Range: Front 8 m
- Capturing field Diameter on floor: 12 m.
- Angle of coverage vertical 0°
- Horizontal coverage angle: 63.39999999..63.4°
- Operating mode switch: No.
- Staircase monitoring: Yes
- Min Switch-on time 10 seconds
- Max. duty cycle 1092 min
- Low-level detection/back field monitoring: Yes
- Teach-Function for Response Brightness: Yes
- Animal slope: No.
- Extension input: Yes
- Switch-off delay, self-learning: No.
- Switching capacity 0 W
- DALI-2 certified: No.
- Product type
Occupancy sensor
- Series
KNX
- Max. switching capacity
0 W
- Used at
Indoors
- Data transfer (Smart Home)
Wired
- Channels
2
12 m
- Mounting type
Flush mount
- Factory colour
Aluminium
- Width
91 mm
- Height
91 mm
- Depth
45 mm
- (Ø)
68 mm
- Dim
(Ø x H) 68 mm x 91 mm
- Hub
Not required, optional for remote access
- Data exchange
Bidirectional (bi)
- Features
Signal input
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3548383 Busch-Jaeger KNX 2CKA006132A0334 Occupancy sensor Max. range (open field) 12 m 6131/30-183
Description
Capturing range (at 2.5 m, 3 m and 4 m mounting height): Circular.
Sitting persons Ø: Max. 8 m, max. 10 m and max. 14 m.
Walking persons Ø: Max. 10 m, max. 12 m and max. 16 m.
Building height 23 mm With 2 channels.
For selective switch-on and switching of light bands depending on the ambient brightness.
Regulation is also possible depending on the movement.
Use of this device as a presence and/or motion detector.
Detector application with 2-level cut-off function.
Detector application with integrated surveillance functions.
Constant light switch with up to 2 independent channels.
Constant light switch with max. 2 outputs for the brightness-dependent switching of two light bands in the room.
With integrated KNX bus coupler.
Suitable for suspended ceilings with panel thickness of 9 to 25 mm.
Installation hole size: Ø 68 mm.
Suitable for surface mounting in combination with an AP housing. Does not fit in the British Standard and VDE flush-mounted socket. Recommendation: HaloX® 100 by Kaiser (article no. 1281-00) with appropriate cover (1281-01 or 1281-61 for exposed concrete) or IBtronic H120-68 from Spelsberg (Art.-No. 97600501).
Product line: KNX
This text is machine translated.
Sitting persons Ø: Max. 8 m, max. 10 m and max. 14 m.
Walking persons Ø: Max. 10 m, max. 12 m and max. 16 m.
Building height 23 mm With 2 channels.
For selective switch-on and switching of light bands depending on the ambient brightness.
Regulation is also possible depending on the movement.
Use of this device as a presence and/or motion detector.
Detector application with 2-level cut-off function.
Detector application with integrated surveillance functions.
Constant light switch with up to 2 independent channels.
Constant light switch with max. 2 outputs for the brightness-dependent switching of two light bands in the room.
With integrated KNX bus coupler.
Suitable for suspended ceilings with panel thickness of 9 to 25 mm.
Installation hole size: Ø 68 mm.
Suitable for surface mounting in combination with an AP housing. Does not fit in the British Standard and VDE flush-mounted socket. Recommendation: HaloX® 100 by Kaiser (article no. 1281-00) with appropriate cover (1281-01 or 1281-61 for exposed concrete) or IBtronic H120-68 from Spelsberg (Art.-No. 97600501).
Product line: KNX
