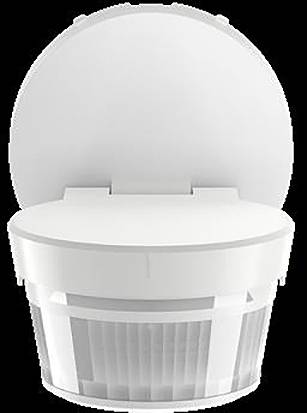

Image similar
Busch-Jaeger KNX 2CKA006132A0432 Motion detector Max. range (open field) 16 m BWA4#2CKA006132A0432
EAN:
Part number:
Item no:
Technical specifications
- Height: 124.4 mm
- Width 110 mm
- Depth: 157.75 mm
- Design: Motion detector
- Mounting type: Surface-mounted
- Material: Plastic
- Colour: white
- KNX bus system: Yes
- Bus system LON: No.
- Bus system Powernet: No.
- Other bus systems: Without
- Number of channels: 4
- Bus system KNX radio: No.
- Bus system wireless bus: No.
- With bus connection: No.
- Material quality: Thermoplastic
- RAL number (similar): 9016
- Optimum mounting height 2.5 m.
- Max. Range to one side: 16 m.
- Max. Range: Front 16 m
- Min Switch-on time 10 seconds
- Product type
Motion detector
- Series
KNX
- Transfer Standard (Smart Home)
Bluetooth Low Energy
- Operating voltage
24 V
- Data transfer (Smart Home)
Wired
- Channels
4
- Frequency
2.4 GHz
16 m
- Mounting type
Surface-mount
- Factory colour
Multicolour
- Width
110 mm
- Height
124.4 mm
- Depth
157.75 mm
- Dim
(W x H x D) 110 x 124.4 x 157.75 mm
- Hub
Not required, optional for remote access
n.rel.
- Weight
0
- Features
Test function
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3549435 Busch-Jaeger KNX 2CKA006132A0432 Motion detector Max. range (open field) 16 m BWA4#2CKA006132A0432
Description
Electronic motion detector for detecting thermal motion and triggering an external actuator (not included).
General:
Setting of the basic functions optionally via Poti or Busch-free@home® Next APP
Flexible mounting through three articulated joints
Optional "
Angular design"
Via Busch-Wächter® frame 6851/DR-xxx (not included)
1 twilight/brightness channel with 3 switching thresholds
1 temperature channel with 3 switching thresholds
Remote control via Bluetooth with Smartphone/Tablet APP
10 additional KNX functions can be controlled via the APP
Programmable status RGB LED (5 functions)
With integrated dismantling difficulty
The bus connection takes place via the supplied bus terminal
Programming only when the bus voltage is applied
Supply and bus voltage 24 V.
With integrated KNX bus coupler
Additional auxiliary voltage is not required
Native ETS application required
Detection:
- Profile lens for best detection
- Monitoring density: 106 sectors with 200
- Detection field left/front/right in 3 levels
- 4 movement channels
- Ground and back field monitoring
- Level compensation: +/- 30°
- Horizontal alignment of the detection system +90°/- 60°
- Vertical alignment of the detection system +/- 30°
Modes/functions:
- Brightness-independent test mode for determining the detection range
- Switch-off delay: Adjustable from 10 seconds to 18 hours
- Automatic range stabilization
- Automatic noise suppression.
- Automatic glare protection
APP functions:
Setting parameters using Busch-free@home® Next APP: Turn-on brightness, follow-up time, duration on, duration off.
Recording of the outdoor temperature and the ambient brightness on the device.
Measured values:
Twilight threshold 1 to 1,000 Lux
Brightness limit 1,000 to 80,000 Lux
Temperature range of sensor: -25°C to 55°C.
Installation:
One-point assembly is possible
Suitable for wall and ceiling mounting
For corner mounting in conjunction with corner adapter (6851/EA-xxx) (not included)
Multi cable entry at the back and side wall with sealing collars
Mounting on ISO switch box (68 mm) is possible.
Product line: KNX
This text is machine translated.
General:
Setting of the basic functions optionally via Poti or Busch-free@home® Next APP
Flexible mounting through three articulated joints
Optional "
Angular design"
Via Busch-Wächter® frame 6851/DR-xxx (not included)
1 twilight/brightness channel with 3 switching thresholds
1 temperature channel with 3 switching thresholds
Remote control via Bluetooth with Smartphone/Tablet APP
10 additional KNX functions can be controlled via the APP
Programmable status RGB LED (5 functions)
With integrated dismantling difficulty
The bus connection takes place via the supplied bus terminal
Programming only when the bus voltage is applied
Supply and bus voltage 24 V.
With integrated KNX bus coupler
Additional auxiliary voltage is not required
Native ETS application required
Detection:
- Profile lens for best detection
- Monitoring density: 106 sectors with 200
- Detection field left/front/right in 3 levels
- 4 movement channels
- Ground and back field monitoring
- Level compensation: +/- 30°
- Horizontal alignment of the detection system +90°/- 60°
- Vertical alignment of the detection system +/- 30°
Modes/functions:
- Brightness-independent test mode for determining the detection range
- Switch-off delay: Adjustable from 10 seconds to 18 hours
- Automatic range stabilization
- Automatic noise suppression.
- Automatic glare protection
APP functions:
Setting parameters using Busch-free@home® Next APP: Turn-on brightness, follow-up time, duration on, duration off.
Recording of the outdoor temperature and the ambient brightness on the device.
Measured values:
Twilight threshold 1 to 1,000 Lux
Brightness limit 1,000 to 80,000 Lux
Temperature range of sensor: -25°C to 55°C.
Installation:
One-point assembly is possible
Suitable for wall and ceiling mounting
For corner mounting in conjunction with corner adapter (6851/EA-xxx) (not included)
Multi cable entry at the back and side wall with sealing collars
Mounting on ISO switch box (68 mm) is possible.
Product line: KNX
This text is machine translated.
