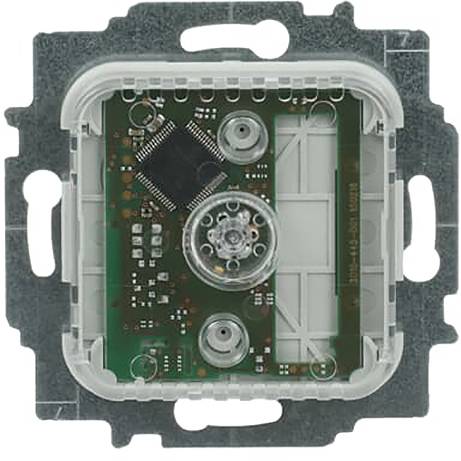

Busch-Jaeger KNX 2CKA006134A0312 Room thermostat 6109/08
EAN:
Part number:
Item no:
Technical specifications
- Mounting type: Flush-mounted
- Material: Plastic
- Colour, black
- Protection class (IP) IP20
- Surface protection: Other
- Design of surface: Matt
- KNX bus system: Yes
- Bus system LON: No.
- Bus system Powernet: No.
- Other bus systems: Without
- Bus system KNX radio: No.
- Bus system wireless bus: No.
- With LED indicator: No.
- With bus connection: No.
- Min Depth of the device socket 33 mm
- Material quality: Thermoplastic
- Number of digital inputs: 5
- With display: Yes
- Assembly: Base element with adapter plate
- With on-site operation: Yes
- External sensor: Yes
- Manual setpoint adjustment: Yes
- Parallel operation possible: Yes
- Temperature controller class: I.
- Product type
Room thermostat
- Series
KNX
- Data transfer (Smart Home)
Wired
- Mounting type
Flush mount
- Hub
Not required, optional for remote access
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3547859 Busch-Jaeger KNX 2CKA006134A0312 Room thermostat 6109/08
Description
Room temperature controller without >on-site operation< inclusive of socket for central cooling part
Universal input with:
- Max. 5 binary inputs
- 4 binary inputs and 1 analog input for controlling sensors with external power supply 1-10V/0-10V
- 2 binary inputs and 1 analog input for controlling sensors with external power supply 1-10V/0-10V and an external temperature sensor PT1000 / 6226T / DP4-T-1.
Can only be used with a central disc 2114-xxx or 6541-xxx, except 6541-20, -21,-260 and -266.
With an integrated temperature sensor.
Master-/slave operation.
With base load operation
The bus connection takes place via the supplied bus terminal.
Temperature controller class: 1
Contribution to room heating energy efficiency: 1.0%.
From ETS4: Commissioning via native ETS application
Design line: Platform 63, Busch-Duro 2000® SI, Reflex SI, Busch-balance® SI, future® linear, Busch-aXcent®, solo®, pure stainless steel, karat®, Busch-dynasty®
Design line variant: Busch-Duro 2000® SI, Busch-Duro 2000® SI Linear, Reflex SI, Reflex SI Linear, future®, future® linear, Busch-aXcent®, pure Busch-aXcent®
Product line: KNX
This text is machine translated.
Universal input with:
- Max. 5 binary inputs
- 4 binary inputs and 1 analog input for controlling sensors with external power supply 1-10V/0-10V
- 2 binary inputs and 1 analog input for controlling sensors with external power supply 1-10V/0-10V and an external temperature sensor PT1000 / 6226T / DP4-T-1.
Can only be used with a central disc 2114-xxx or 6541-xxx, except 6541-20, -21,-260 and -266.
With an integrated temperature sensor.
Master-/slave operation.
With base load operation
The bus connection takes place via the supplied bus terminal.
Temperature controller class: 1
Contribution to room heating energy efficiency: 1.0%.
From ETS4: Commissioning via native ETS application
Design line: Platform 63, Busch-Duro 2000® SI, Reflex SI, Busch-balance® SI, future® linear, Busch-aXcent®, solo®, pure stainless steel, karat®, Busch-dynasty®
Design line variant: Busch-Duro 2000® SI, Busch-Duro 2000® SI Linear, Reflex SI, Reflex SI Linear, future®, future® linear, Busch-aXcent®, pure Busch-aXcent®
Product line: KNX
This text is machine translated.
