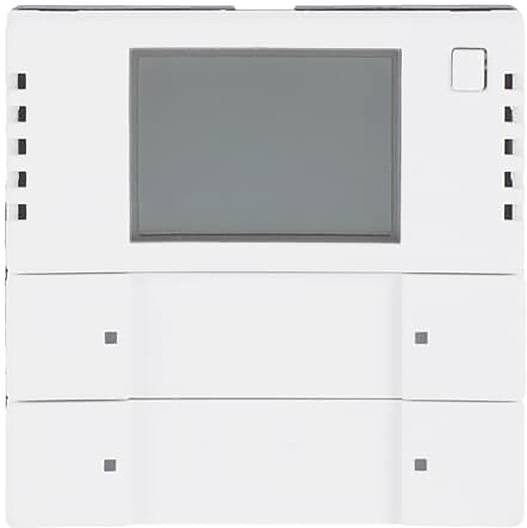

Image similar
Busch-Jaeger KNX 2CKA006134A0328 Console 6128/28-884
EAN:
Part number:
Item no:
Technical specifications
- Mounting type: Flush-mounted
- Material: Plastic
- Colour: white
- Protection class (IP) IP20
- Surface protection: Painted
- Transparent: No.
- Design of surface: Matt
- KNX bus system: Yes
- Bus system LON: No.
- Bus system Powernet: No.
- Other bus systems: Without
- Bus system KNX radio: No.
- Bus system wireless bus: No.
- With LED display: Yes
- With bus connection: No.
- Min Depth of the device socket 22 mm
- Material quality: Thermoplastic
- RAL number (similar): 9016
- With theft/dismantling protection: Yes
- With display: Yes
- Assembly: Operating element
- With on-site operation: No.
- External sensor: No.
- Manual setpoint adjustment: Yes
- Presence switch: Yes
- Parallel operation possible: Yes
- Temperature controller class: I.
- Product type
Console
- Series
KNX
- Used at
Indoors
- Data transfer (Smart Home)
Wired
- Mounting type
Flush mount
- Hub
Not required, optional for remote access
- Data exchange
Bidirectional (bi)
- Features
Dimmer function
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3548895 Busch-Jaeger KNX 2CKA006134A0328 Console 6128/28-884
Description
For Busch-Installation Bus® KNX Bus Coupler 6120/12-101, 6120/13 and Busch-Powernet® KNX Network Connection 6920/12, 6920/13.
With labeling field.
Support for KNX functions with innovative color concept (yellow=illumination, blue=blind, orange=RTR, magenta=scene and white=neutral/no function assignment) or standard lighting red/green.
Push-button function (switch/dim/blind/send value/light scenes/ventilation function) Master-/slave mode.
With base load operation
The controller is a constant room temperature controller for fan convection heaters (Fan Coil) in 2 and 4-tube systems and conventional heating or cooling systems.
The fan stage can be switched manually or into automatic mode.
Transparent label sheet with standard symbols included in the delivery.
Temperature controller class: 1
Contribution to room heating energy efficiency: 1.0%.
ETS programming only as of ETS 3.0f
Design line: Platform 63, future® linear, Busch-aXcent®, karat®
Design line variant: Future® linear - matt, Busch-aXcent®, Busch-aXcent® pure
Product line: KNX
