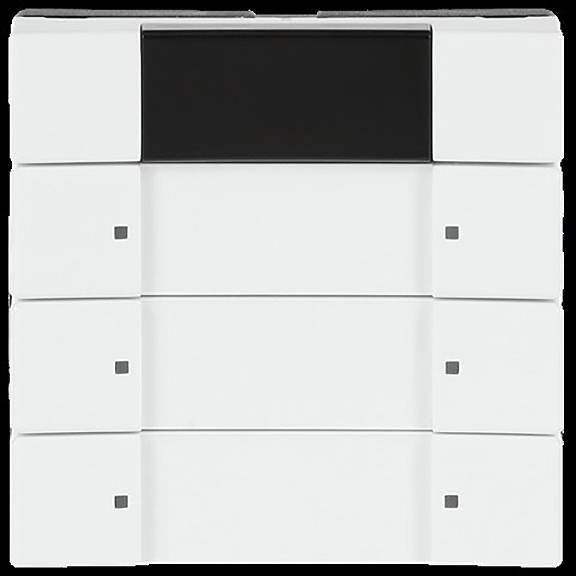

Busch-Jaeger KNX 2CKA006135A0145 Pushbutton 6129/01-84
EAN:
Part number:
Item no:
Technical specifications
- Mounting type: Flush-mounted
- Material: Plastic
- Colour: Studio white
- Protection class (IP) IP20
- Surface protection: Untreated
- Surface design: Glossy
- KNX bus system: Yes
- Bus system LON: No.
- Bus system Powernet: No.
- Other bus systems: Without
- Bus system KNX radio: No.
- Bus system wireless bus: No.
- With LED indicator: No.
- With bus connection: No.
- Min Depth of the device socket 33 mm
- Material quality: Thermoplastic
- RAL number (similar): 9016
- With labeling field: No.
- With theft/dismantling protection: Yes
- Number of operating points: 6
- Number of keys: 3
- With infrared sensor: Yes
- Product type
Pushbutton
- Series
KNX
- Data transfer (Smart Home)
Wired
- Channels
10
- Mounting type
Flush mount
- Hub
Not required, optional for remote access
- Features
Dimmer function
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3550424 Busch-Jaeger KNX 2CKA006135A0145 Pushbutton 6129/01-84
Description
For Busch-Installation Bus® KNX 6120/12-101, 6120/13 and Busch-Powernet® KNX 6920/12, 6920/13 and 6920/40.
With labeling field.
Support for KNX functions with innovative color concept (yellow=illumination, blue=blind, orange=RTR, magenta=scene and white=neutral/no function assignment) or standard lighting red/green.
Button function: Switch / dim / blind / send value / light scenes etc.
For control by Busch-Ferncontrol® IR hand-held transmitter 6010-25 or 6020-.../6021... .
Transparent label sheet with standard symbols included in the delivery.
Incl. 10 logic channels (light scene actuator, sequence actuator, logic gate, etc.).
Design line: Platform 63, future® linear, Busch-aXcent®, solo®, karat®
Design line Variant: Future®, future® linear, Busch-aXcent®, Busch-aXcent® pure
Product line: KNX
This text is machine translated.
With labeling field.
Support for KNX functions with innovative color concept (yellow=illumination, blue=blind, orange=RTR, magenta=scene and white=neutral/no function assignment) or standard lighting red/green.
Button function: Switch / dim / blind / send value / light scenes etc.
For control by Busch-Ferncontrol® IR hand-held transmitter 6010-25 or 6020-.../6021... .
Transparent label sheet with standard symbols included in the delivery.
Incl. 10 logic channels (light scene actuator, sequence actuator, logic gate, etc.).
Design line: Platform 63, future® linear, Busch-aXcent®, solo®, karat®
Design line Variant: Future®, future® linear, Busch-aXcent®, Busch-aXcent® pure
Product line: KNX
This text is machine translated.
