Busch-Jaeger KNX 2CKA006138A0004 Room thermostat 6138/11-83
EAN:
Part number:
Item no:
Technical specifications
- Mounting type: Surface-mounted
- Material: Plastic
- Colour: Aluminium silver
- Protection class (IP) IP20
- Surface protection: Painted
- Transparent: No.
- Design of surface: Matt
- KNX bus system: Yes
- Bus system LON: No.
- Bus system Powernet: No.
- Other bus systems: Without
- Bus system KNX radio: No.
- Bus system wireless bus: No.
- Wireless bidirectional: No
- With LED indicator: No.
- With bus connection: No.
- Min Depth of the device socket 0 mm
- Material quality: Thermoplastic
- RAL number (similar): 9006
- With theft/dismantling protection: Yes
- With display: Yes
- Assembly: Operating element
- With on-site operation: Yes
- External sensor: No.
- Manual setpoint adjustment: Yes
- Presence switch: Yes
- Parallel operation possible: Yes
- Temperature controller class: I.
- Product type
Room thermostat
- Series
KNX
- Data transfer (Smart Home)
Wired
- Mounting type
Surface-mount
- Factory colour
Aluminium silver
- Hub
Not required, optional for remote access
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3552410 Busch-Jaeger KNX 2CKA006138A0004 Room thermostat 6138/11-83
Description

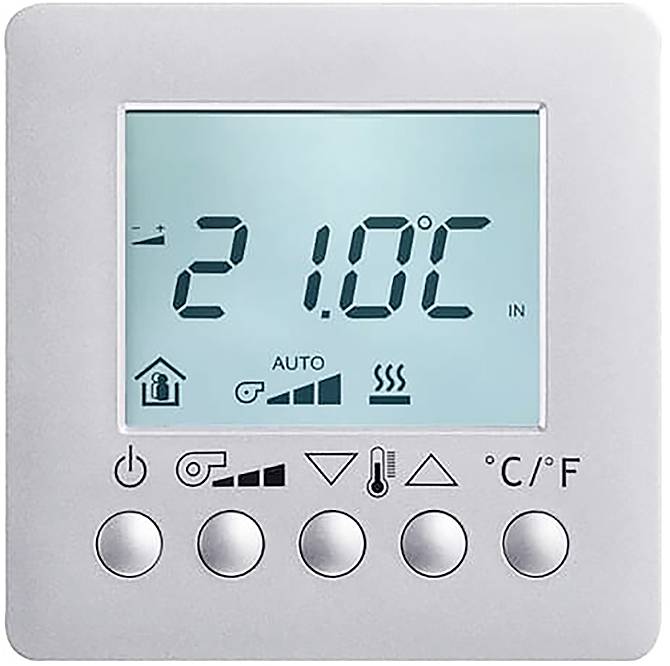

Control element for room temperature regulation with LC-display and 5 operating keys.
Serves for single room temperature control in heating and air-conditioning technology.
The controller is a constant room temperature controller for fan convection heaters (Fan Coil) in 2 and 4-tube systems and conventional heating or cooling systems.
The room temperature controller works in heating and cooling mode.
The fan stage can be switched manually or into automatic mode.
Temperature controller class: 1
Contribution to room heating energy efficiency: 1.0%.
Complete unit, without using frames.
Product line: KNX
