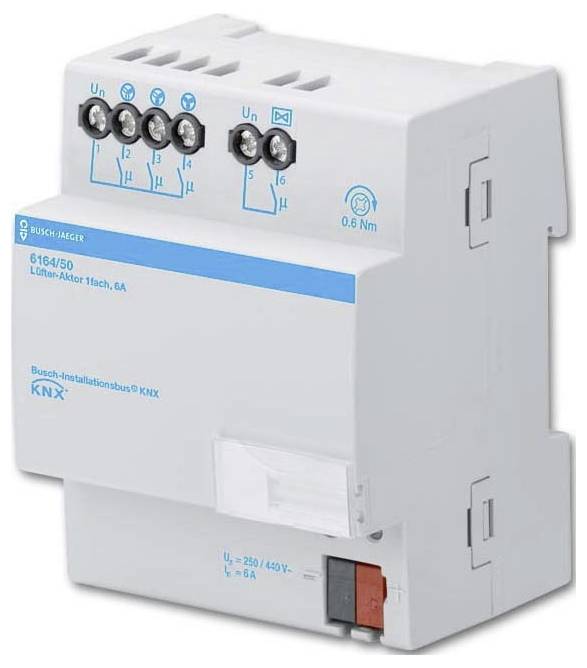

Busch-Jaeger KNX 2CKA006151A0241 Actuator 6164/50
EAN:
Part number:
Item no:
Technical specifications
- Mounting type: REG
- Protection class (IP) IP20
- Width in division units: 4
- Switching voltage: 230 V
- KNX bus system: Yes
- Bus system LON: No.
- Bus system Powernet: No.
- Other bus systems: Without
- Bus system KNX radio: No.
- Bus system wireless bus: No.
- Wireless bidirectional: No
- With bus connection: No.
- Bus module removable: No.
- Min Depth of the device socket 65 mm
- Number of outputs: 1
- Manipulated variable: Yes
- Switching variable: Yes
- Valve protection function: Yes
- Manual control: Yes
- Max. Switching current (ohmic load) 6 A
- Max. output current 6 A
- Product type
Actuator
- Series
KNX
- Operating voltage
230 V
- Data transfer (Smart Home)
Wired
- Channels
1
- Mounting type
DIN rail
- Hub
Not required, optional for remote access
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3552421 Busch-Jaeger KNX 2CKA006151A0241 Actuator 6164/50
Description
For controlling a 3-stage fan via a stage or change control. A valve or electrical consumer can be controlled through the free switching output. The free output can be used for controlling 2-wire fan-coil systems with a heating or cooling circuit or with a changing heating/cooling circuit via Busch installation bus KNX. Forced guidance and 4 modes of operation adjustable for fan and valve. If required, please refer to the current online catalog for the software and description. 1 TE ? 18 mm.
