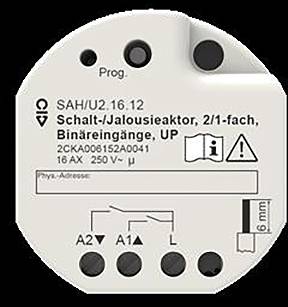

Busch-Jaeger KNX 2CKA006152A0041 Blinds actuator SAH/U2.16.12
EAN:
Part number:
Item no:
Technical specifications
- Rated current 8 A
- Mounting type: Flush-mounted
- Protection class (IP) IP20
- KNX bus system: Yes
- Bus system LON: No.
- Bus system Powernet: No.
- Other bus systems: Without
- Bus system KNX radio: No.
- Bus system wireless bus: No.
- With LED indicator: No.
- Max. Number of switching outputs: 2
- Max. switching current 6 A
- Different phases can be connected: Yes
- With bus connection: No.
- Bus module removable: No.
- Modular expansion option: No.
- Min Depth of the device socket 40 mm
- Product type
Blinds actuator
- Series
KNX
- Data transfer (Smart Home)
Wired
- Channels
2
- Mounting type
Flush mount
- Hub
Not required, optional for remote access
- Features
Motor-operated
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3548921 Busch-Jaeger KNX 2CKA006152A0041 Blinds actuator SAH/U2.16.12
Description
For controlling window blind or marquee motors.
Switch/blind actuator 2f/1f.
The bus connection takes place via the supplied bus terminal.
Outputs: 1
Switch contacts/NO, potential-bound
Product line: KNX
This text is machine translated.
Switch/blind actuator 2f/1f.
The bus connection takes place via the supplied bus terminal.
Outputs: 1
Switch contacts/NO, potential-bound
Product line: KNX
This text is machine translated.
