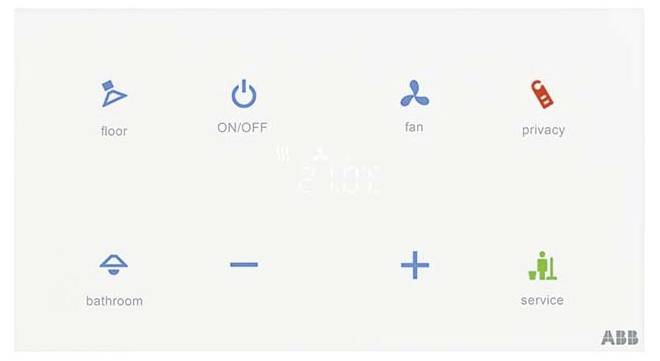

Busch-Jaeger KNX 2CKA006300A1546 Touchscreen module TBR/U4.8.1-CG
EAN:
Part number:
Item no:
Technical specifications
- Mounting type: Flush-mounted
- Protection class (IP) IP20
- KNX bus system: Yes
- With LED display: Yes
- With bus connection: Yes
- With theft/dismantling protection: Yes
- With display: Yes
- Assembly: Operating element
- With on-site operation: Yes
- External sensor: Yes
- Manual setpoint adjustment: Yes
- Presence switch: Yes
- Parallel operation possible: Yes
- Product type
Touchscreen module
- Series
KNX
- Operating voltage
24 V
- Data transfer (Smart Home)
Wired
- Mounting type
Flush mount
- Hub
Not required, optional for remote access
- Features
Touch function
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3549948 Busch-Jaeger KNX 2CKA006300A1546 Touchscreen module TBR/U4.8.1-CG
Description
Freely configurable multifunctional control element. The configuration of symbols and/or texts is done via a web configuration tool: tacteo-configurator.my.busch-jaeger.de Support of the KNX functions by innovative color concept (yellow=illumination, blue=blind, orange=RTR, magenta=scene and white=neutral/no function assignment) or standard lighting red/green. With integrated proximity function. Button function (switching/dimming/blind sending/value/light scenes/ventilation function) The controller is a constant room temperature controller for fan convection heaters (fan coil) in 2 and 4-tube systems and conventional heating or cooling systems The fan stage can be switched manually or into automatic mode Class of the temperature controller: 1 Contribution to the room heating energy efficiency: 1.0%. With integrated KNX bus coupler. Number of bus nodes: 1 with separate 24 V additional power supply
