Busch-Jaeger KNX 2CKA006300A1570 Outdoor sensor TLM/U.1.11-CG
EAN:
Part number:
Item no:
Technical specifications
- Design: Chip card
- Mounting type: Flush-mounted
- Material: Glass
- Colour: Other
- Protection class (IP) IP20
- Surface protection: Untreated
- Transparent: No.
- Surface design: Glossy
- KNX bus system: Yes
- Bus system LON: No.
- Bus system Powernet: No.
- Other bus systems: Other
- Bus system KNX radio: No.
- Bus system wireless bus: No.
- With bus connection: Yes
- Material quality: Other
- Product type
Outdoor sensor
- Series
KNX
- Used at
Outdoors
- Operating voltage
24 V
- Data transfer (Smart Home)
Wired
- Mounting type
Flush mount
- Hub
Not required, optional for remote access
- Features
Dimmer function
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3547856 Busch-Jaeger KNX 2CKA006300A1570 Outdoor sensor TLM/U.1.11-CG
Description

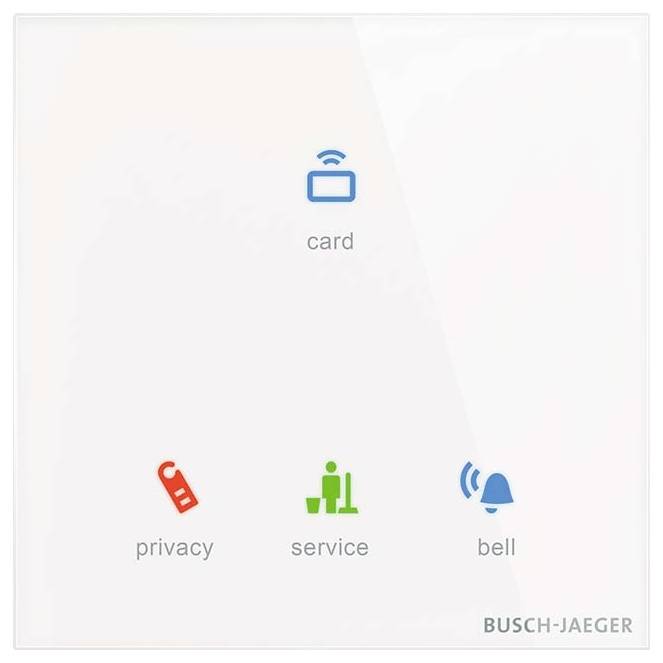

Ordering is only possible in conjunction with the Design ID. The configuration of symbols and/or texts is done via a web configuration tool: tacteo-configurator.my.busch-jaeger.de Freely programmable >Do not disturb<, >Bell< and >Make up room<. For reading mifare RF cards. Button function: Switch / dim / blind / send value / light scenes etc. Support of the KNX functions by innovative color concept (yellow=illumination, blue=blind, orange=RTR, magenta=scene and white=neutral/no function assignment) or standard lighting red/green. With integrated KNX bus coupler. The bus connection takes place via the supplied bus terminal. Number of bus nodes: 1 with separate 24 V additional power supply These individually produced devices are excluded from replacement. Figure shows configured device. Order only possible in conjunction with the specified design ID or the generated design ID from the configurator.
