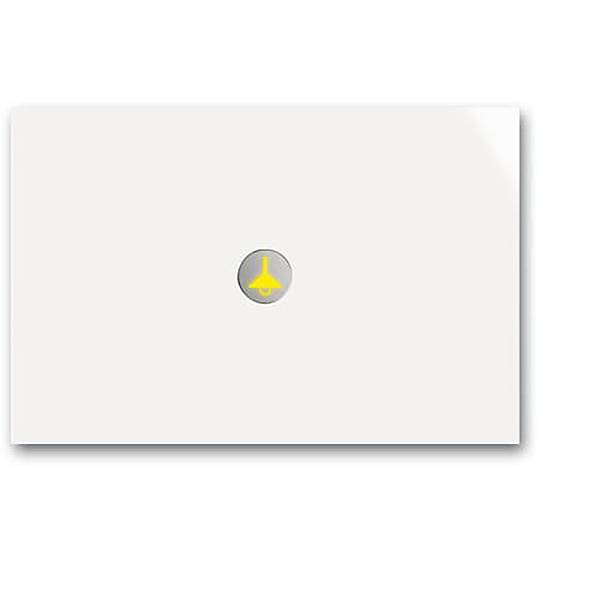

Busch-Jaeger KNX 2CKA006310A0105 Console 6340-24G-101
EAN:
Part number:
Item no:
Technical specifications
- Mounting type: Flush-mounted
- Material: Plastic
- Colour: Studio white
- Protection class (IP) IP20
- Surface protection: Untreated
- Surface design: Glossy
- KNX bus system: Yes
- Bus system LON: No.
- Bus system Powernet: No.
- Other bus systems: Without
- Bus system KNX radio: No.
- Bus system wireless bus: No.
- With LED indicator: No.
- With bus connection: No.
- Min Depth of the device socket 33 mm
- Material quality: Thermoplastic
- RAL number (similar): 9016
- With marking field: Yes
- With theft/dismantling protection: Yes
- Number of operating points: 1
- Number of keys: 2
- With display: No.
- With room thermostat: No.
- With infrared sensor: No.
- Product type
Console
- Series
KNX
- Data transfer (Smart Home)
Wired
- Mounting type
Flush mount
- Hub
Not required, optional for remote access
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3547841 Busch-Jaeger KNX 2CKA006310A0105 Console 6340-24G-101
Description
Multifunctional control element that can be freely programmed.
For installation in the 1-way base frame, 2-way and 3-way (6346/10-101, 6346/11-101 and 6346/12-101).
Support for KNX functions with innovative color concept (yellow=illumination, blue=blind, orange=RTR, magenta=scene and white=neutral/no function assignment) or standard lighting red/green.
The enclosed symbol can be replaced by the symbols for lighting (6353/20-xxx), blinds (6353/30-xxx), RTR (6353/40-xxx) and scene (6353/50-xxx).
ETS programming only required from ETS 3.0f additional software PowerTool.
Design line: Busch-Prion®
Product line: KNX
