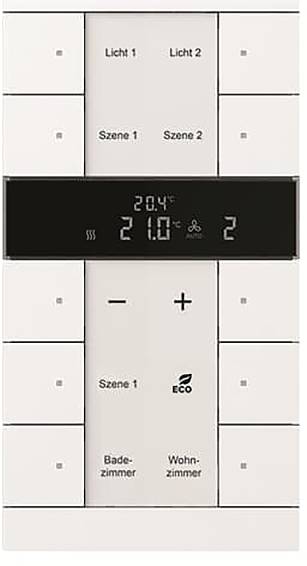

Busch-Jaeger KNX 2CKA006330A0007 Room thermostat SBR/U10.0.11-84
EAN:
Part number:
Item no:
Technical specifications
- Mounting type: Flush-mounted
- Material: Plastic
- Colour: Studio white
- Protection class (IP) IP20
- Surface protection: Untreated
- Surface design: Glossy
- KNX bus system: Yes
- Bus system LON: No.
- Bus system Powernet: No.
- Other bus systems: Without
- Bus system KNX radio: No.
- Bus system wireless bus: No.
- With LED display: Yes
- With bus connection: No.
- Min Depth of the device socket 30.69999999 mm
- Material quality: Thermoplastic
- RAL number (similar): 9016
- With theft/dismantling protection: Yes
- With display: Yes
- Assembly: Operating element
- External sensor: No.
- Manual setpoint adjustment: Yes
- Presence switch: Yes
- Parallel operation possible: Yes
- Temperature controller class: I.
- Product type
Room thermostat
- Series
KNX
- Data transfer (Smart Home)
Wired
- Mounting type
Flush mount
- Width
100 mm
- Height
50 mm
- Dim
(L x W x H) 150 cm x 100 mm x 50 mm
- Hub
Not required, optional for remote access
- Weight
280 g
- Features
Dimmer function
- Length
150 cm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3548905 Busch-Jaeger KNX 2CKA006330A0007 Room thermostat SBR/U10.0.11-84
Description
Freely configurable multifunctional control element.
With integrated KNX bus coupler.
With labeling field.
Support for KNX functions with innovative color concept (yellow=illumination, blue=blind, orange=RTR, magenta=scene and white=neutral/no function assignment) or standard lighting red/green.
Button function: Switch / dim / blind / send value / light scenes etc.
For controlling HVAC actuators.
Master-/slave operation.
With base load operation
The fan stage can be switched manually or into automatic mode.
Thermostat class:1
Contribution to room heating energy efficiency: 1.0%.
Number of bus nodes: 1.
Design line: Busch-TenTon®
Product line: KNX
This text is machine translated.
With integrated KNX bus coupler.
With labeling field.
Support for KNX functions with innovative color concept (yellow=illumination, blue=blind, orange=RTR, magenta=scene and white=neutral/no function assignment) or standard lighting red/green.
Button function: Switch / dim / blind / send value / light scenes etc.
For controlling HVAC actuators.
Master-/slave operation.
With base load operation
The fan stage can be switched manually or into automatic mode.
Thermostat class:1
Contribution to room heating energy efficiency: 1.0%.
Number of bus nodes: 1.
Design line: Busch-TenTon®
Product line: KNX
This text is machine translated.
