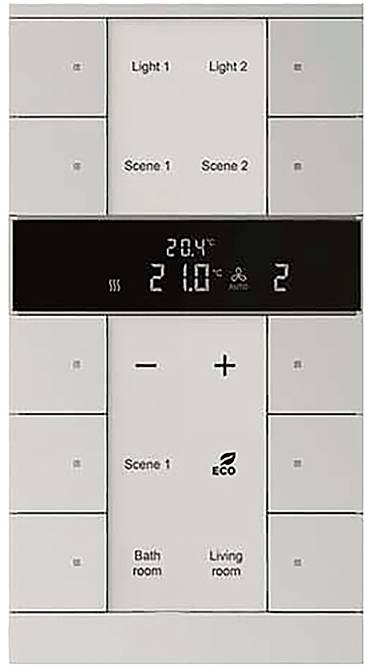

Image similar
Busch-Jaeger KNX 2CKA006330A0056 Room thermostat SBR/U10.0.1-83
EAN:
Part number:
Item no:
Technical specifications
- Mounting type: Flush-mounted
- Material: Plastic
- Colour: Aluminium
- Protection class (IP) IP20
- Surface protection: Painted
- Design of surface: Matt
- KNX bus system: Yes
- Bus system LON: No.
- Bus system Powernet: No.
- Bus system wireless bus: No.
- With LED display: Yes
- With bus connection: Yes
- Material quality: Thermoplastic
- RAL number (similar): 9006
- With theft/dismantling protection: Yes
- With display: Yes
- Assembly: Operating element
- External sensor: No.
- Manual setpoint adjustment: Yes
- Presence switch: Yes
- Parallel operation possible: Yes
- Product type
Room thermostat
- Series
KNX
- Data transfer (Smart Home)
Wired
- Mounting type
Flush mount
- Factory colour
Aluminium
- Hub
Not required, optional for remote access
- Features
Dimmer function
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3551951 Busch-Jaeger KNX 2CKA006330A0056 Room thermostat SBR/U10.0.1-83
Description
Freely configurable multifunctional control element. With integrated KNX bus coupler. With labeling field. Support for KNX functions with innovative color concept (yellow=illumination, blue=blind, orange=RTR, magenta=scene and white=neutral/no function assignment) or standard lighting red/green. Button function: Switch / dim / blind / send value / light scenes etc. Master-/slave mode. With base load operation The controller is a constant room temperature controller for fan convection heaters (fan coil) in 2- and 4-pipe systems and conventional heating or cooling systems The fan stage can be switched manually or into automatic mode Class of temperature controller: 1 Contribution to room heating energy efficiency: 1.0%. Number of bus nodes: 1
