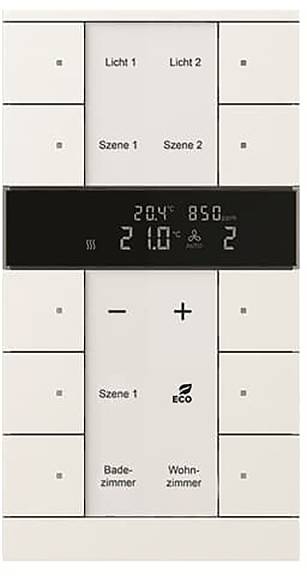

Busch-Jaeger KNX 2CKA006330A0063 Room thermostat hygrostat combo SBC/U10.0.11-884
EAN:
Part number:
Item no:
Technical specifications
- Design: CO2-sensor
- Mounting type: Flush-mounted
- Colour: white
- Protection class (IP) IP20
- KNX bus system: Yes
- Bus system LON: No.
- Bus system Powernet: No.
- Other bus systems: Without
- Bus system KNX radio: No.
- Bus system wireless bus: No.
- With bus connection: No.
- RAL number (similar): 9016
- Product type
Room thermostat hygrostat combo
- Series
KNX
- Used at
Indoors
- Data transfer (Smart Home)
Wired
- Mounting type
Flush mount
- Hub
Not required, optional for remote access
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3549616 Busch-Jaeger KNX 2CKA006330A0063 Room thermostat hygrostat combo SBC/U10.0.11-884
Description
Control element with room temperature control function and CO2/humidity sensor.
With integrated KNX bus coupler.
With labeling field.
Support for KNX functions with innovative color concept (yellow=illumination, blue=blind, orange=RTR, magenta=scene and white=neutral/no function assignment) or standard lighting red/green.
Button function: Switch / dim / blind / send value / light scenes etc.
For controlling HVAC actuators.
Master-/slave operation.
With base load operation
The fan stage can be switched manually or into automatic mode.
Temperature controller class: 1
Contribution to room heating energy efficiency: 1.0%.
Number of bus nodes: 2.
Design line: Busch-TenTon®
Product line: KNX
This text is machine translated.
With integrated KNX bus coupler.
With labeling field.
Support for KNX functions with innovative color concept (yellow=illumination, blue=blind, orange=RTR, magenta=scene and white=neutral/no function assignment) or standard lighting red/green.
Button function: Switch / dim / blind / send value / light scenes etc.
For controlling HVAC actuators.
Master-/slave operation.
With base load operation
The fan stage can be switched manually or into automatic mode.
Temperature controller class: 1
Contribution to room heating energy efficiency: 1.0%.
Number of bus nodes: 2.
Design line: Busch-TenTon®
Product line: KNX
This text is machine translated.
