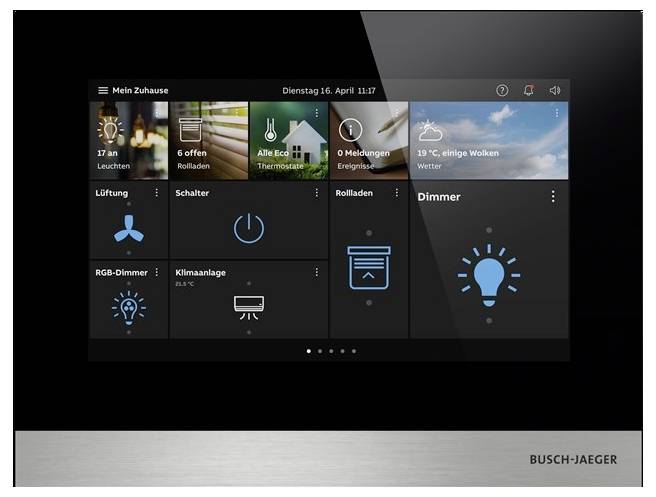

Busch-Jaeger KNX 2TMA130050B0068 Console H8236-5B-03
EAN:
Part number:
Item no:
Technical specifications
- Height: 150 mm
- Width: 199 mm
- Depth: 17 mm
- Mounting type: Surface-mounted
- Material: Other
- Colour, black
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- Interface type: Other
- Screen size 177.8 mm (17")
- Screen size in inches: 7 inches
- Installation technology: Other
- Hearing aid compatible: Yes
- PTZ Function (Pan/Tilt/Zoom): No.
- Image system PAL
- Image system property: Color
- With video: Yes
- Bug-proof: Yes
- Smartphone connection possible: Yes
- Internal communication: Yes
- Hands-free: Yes
- With memory function: Yes
- Operation door opener: Yes
- Switching functions: Yes
- Function lamps: Yes
- With automatic door opener: Yes
- Call cut-off: Yes
- Call differentiation: Yes
- Additional unit can be stacked end-to-end: Yes
- Volume control: Yes
- With touch-screen: Yes
- Product type
Console
- Series
KNX
Manufacturer-specific
- Operating voltage
24 V DC
- Data transfer (Smart Home)
Wired
- Mounting type
Surface-mount
- Factory colour
Multicolour
- Width
199 mm
- Height
150 mm
- Depth
17 mm
- Dim
(W x H x D) 199 x 150 x 17 mm
- Hub
Not required, optional for remote access
- Features
Dimmer function
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3547968 Busch-Jaeger KNX 2TMA130050B0068 Console H8236-5B-03
Description
Central control panel for Busch-Welcome® IP and optional Busch-free@home® or KNX.
For central control of up to 64 freely configurable KNX control elements. The programming is done by means of ETS DCA.
Functions of type: Switching, dimming, blinds, RTR, scene, Philips HUE
Note: KNX connection is performed by means of KNXnetIP tunneling. A KNX IP router or KNX IP interface is required in the system.
Alternatively, automatic display of all Busch-free@home® control frames with room structure.
An individual operator side with up to 18 freely configurable control frames.
Two dashboard pages with up to 12 control frames.
With integrated room temperature controller and temperature sensor.
Representation of the video image of the external station.
During the call, a picture of the visitor can be taken and stored in the image memory.
In case of door calls in absence, three images of the visitor are automatically saved in the picture memory.
Different adjustable ringtones for door and floor calls, five polyphonic ring tones are available for selection.
Equipped with an audio loop for connecting the audio signal to hearing aids.
Individual ring tones (can be integrated via SD card)
Adjustable ring volume.
SD-card slot for extending the picture memory.
Capacitive display with glass surface (1024 x 600 resolution).
With hands-free function
Hands-free volume adjustable.
Individual audio absence function
For flush mounting with 42361F-03 .
For integration in the myBUSCH-JAEGER portal.
Allows you to integrate tablet or smartphone with installed Busch-free@home® next APP or Busch-Welcome® APP as a mobile indoor location for audio and video communication.
Up to 4 mobile devices can be combined in each case.
Please refer to our my.Busch-Jaeger license model.
For more information, please visit my.busch-jaeger.de
Rated current 440 mA (24 V DC).
Power supply via Power over Ethernet (PoE) 802.3af.
Alternative power supply via plug mains adapter 53011PS-03.
Product line: Busch-free@home®, KNX, Busch-Welcome® IP
