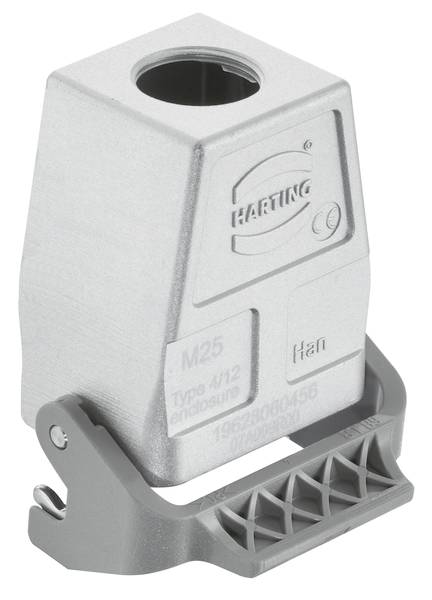

Bush enclosure 19 62 806 0456 19628060456 HARTING 1 pc(s)
EAN:
Part number:
Item no:
Product type
Bush enclosure
Series
Han® B
Thread size
M25
Case material
Aluminium, die cast
Type
19 62 806 0456
Datasheet (PDF)
Technical specifications
- Locking type: Longitudinal brace (bush-side)
- Temperature limit: -40 ... +125 °C
- Net weight: 150 g
- Material locking: Polycarbonate (PC);stainless steel
- Protection class according to IEC 60529:IP65;IP66
- Design size 6 B
- Approvals DNV GL
- Casing type: Sleeve casing
- Design: Straight cable input
- Cable input: 1x M25
- Housing series: HAN® EMC/B.
- Material housing: Aluminium die-cast
- Surface housing: Uncoated
- Colour of housing: Unpainted
- Limit temperature note: When used as a connector in accordance with IEC 61984.
- Design: High design
- Protection class according to UL 50 / UL 50E:4;12
- Colour locking: RAL 7037 (dust gray)
- Material flammability class to UL 94 (locking bar): V-0
- Type
19 62 806 0456
- Product type
Bush enclosure
- Series
Han® B
- Manufacturer part #
19628060456
- Features
Longitudinal brace
- Thread size
M25
- Type
Straight cable input
- Case material
Aluminium, die cast
- Series
EMV/B
- Content
1 pc(s)
IP65
IP66
- Max. temperature
125 °C
- Min. temperature
-40 °C
TRUE
FALSE
Other
Single locking lever
1
FALSE
FALSE
Aluminium
Uncoated
-40-125 °C
Other
FALSE
FALSE
Plug case
IP65
Above
Cover
Metric
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3007090 Bush enclosure 19 62 806 0456 19628060456 HARTING 1 pc(s)
Datasheet 3007090 Bush enclosure 19 62 806 0456 19628060456 HARTING 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3007090 Bush enclosure 19 62 806 0456 19628060456 HARTING 1 pc(s)
Description
Sleeve housing, size: 6 B, high profile, longitudinal clamp (nozzle-end), polycarbonate (PC), Stainless steel, straight cable input, 1x M25
