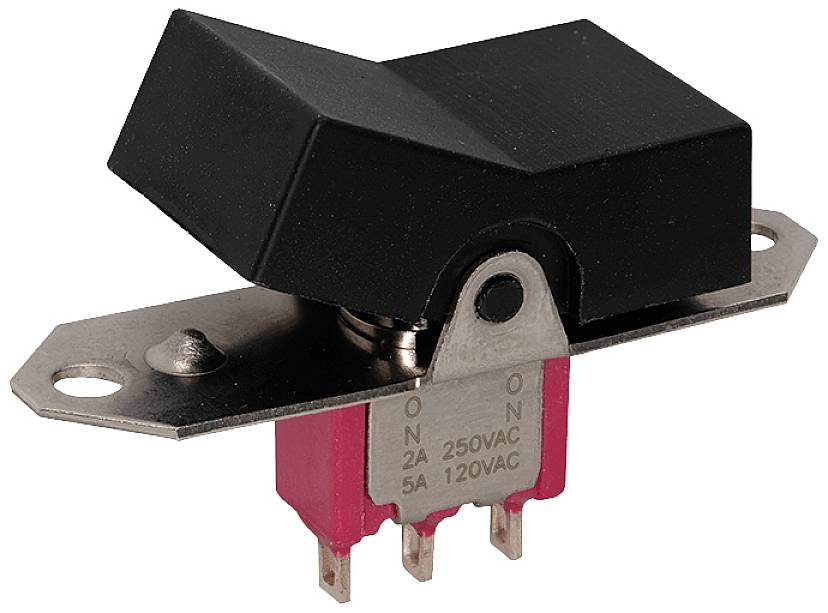

C & K Switches 7101J3AV2BE2 Flip switch 20 V AC, 20 V DC 1 x On/On latch 1 pc(s) Bulk
Packaging type
Bulk
Product type
Flip switch
Casing/button colour
Black
Functions
latch
Switch position
1 x On/On
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
C & K COMPONENTS 7101J3AV2BE2
- Multi-pole and multi-positionWide variety of actuator and termination optionsEpoxy terminal-seal compatible with bottom wash cleaningTelecommunicationsInstrumentationMedical equipment
Our service for you
Technical specifications
- Packaging type
Bulk
- Product type
Flip switch
- Switch/button features
+ lever
- Casing/button colour
Black
- Functions
latch
- Switch position
1 x On/On
- Connection
Print (right-angle)
- Number of pins
3
- Switching voltage
20 V AC
20 V DC
- Min. temperature
-30 °C
- Max. temperature
+85 °C
- Electrical lifespan
100000
- Content
1 pc(s)
- RoHS-compliant
Yes
- Type
7101J3AV2BE2
Documents & Downloads
Datasheet
Datasheet 2577602 C & K Switches 7101J3AV2BE2 Flip switch 20 V AC, 20 V DC 1 x On/On latch 1 pc(s) Bulk
User & Safety Instructions
User & Safety Instructions 2577602 C & K Switches 7101J3AV2BE2 Flip switch 20 V AC, 20 V DC 1 x On/On latch 1 pc(s) Bulk
Description
Rocker Switch, SPDT, On-on, Latched, 0.02A, 20VDC, 3 PCB Hole Cnt, Solder Terminal, Long Rocker Actuator, Through Hole-right Angle
This text is machine translated.
This text is machine translated.
Hints
Re switch position: content in parentheses describes the n/o and n/c contact constellation
