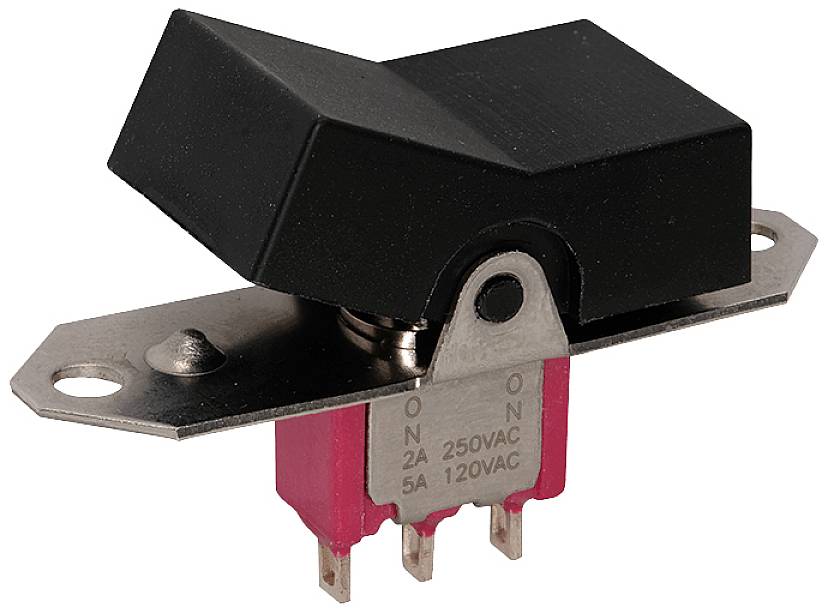

Image similar
C & K Switches 7108J16ZQE22 Flip switch 120 V AC, 28 V DC 5.00 A 1 x On/(On) latch/momentary 1 pc(s) Bulk
Packaging type
Bulk
Product type
Flip switch
Casing/button colour
Black
Functions
latch/momentary
Switch position
1 x On/(On)
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
C & K COMPONENTS 7108J16ZQE22
- Multi-pole and multi-positionWide variety of actuator and termination optionsEpoxy terminal-seal compatible with bottom wash cleaningTelecommunicationsInstrumentationMedical equipment
Our service for you
Technical specifications
- Packaging type
Bulk
- Product type
Flip switch
- Switch/button features
Recess mount
- Casing/button colour
Black
- Functions
latch/momentary
- Switch position
1 x On/(On)
- Connection
Soldering
- Number of pins
1
- Switching voltage
120 V AC
28 V DC
- Switching current (max.)
5.00 A
- Min. temperature
-30 °C
- Max. temperature
+85 °C
- Width
20.32 mm
- Height
12.70 mm
- Electrical lifespan
40000
- Content
1 pc(s)
- Dim
(W x H) 20.32 mm x 12.70 mm
- RoHS-compliant
Yes
- Switching current (inductive)
5.00 A
- Type
7108J16ZQE22
Documents & Downloads
Datasheet
Datasheet 2578043 C & K Switches 7108J16ZQE22 Flip switch 120 V AC, 28 V DC 5.00 A 1 x On/(On) latch/momentary 1 pc(s) Bulk
User & Safety Instructions
User & Safety Instructions 2578043 C & K Switches 7108J16ZQE22 Flip switch 120 V AC, 28 V DC 5.00 A 1 x On/(On) latch/momentary 1 pc(s) Bulk
Description
Rocker Switch, SPDT, Latched And Momentary, 5A, 28VDC, Solder Terminal, Rocker With Frame Actuator, Panel Mount
This text is machine translated.
This text is machine translated.
Hints
Re switch position: content in parentheses describes the n/o and n/c contact constellation
