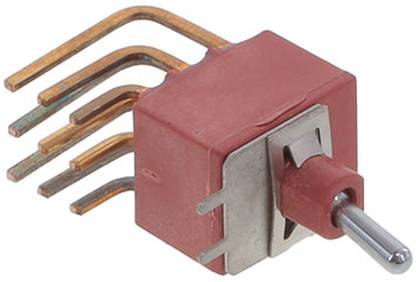

Image similar

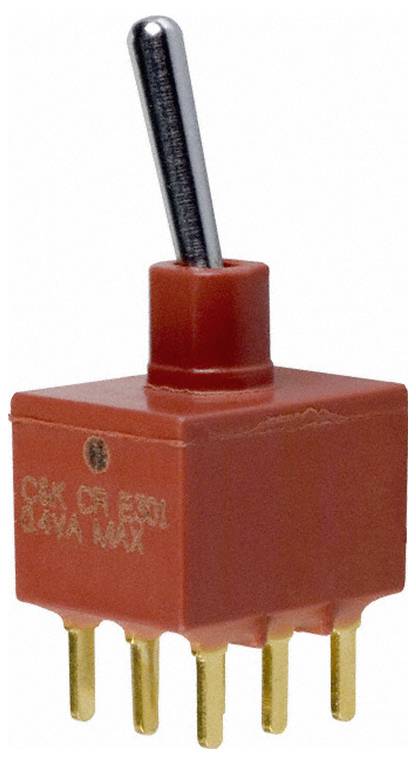

C & K Switches E301SD1CBE Toggle switch 20 V AC, 20 V DC 0.4 A 3 x On/On IP57 momentary/momentary 1 pc(s) Bulk
Packaging type
Bulk
Product type
Toggle switch
Functions
momentary/momentary
Switch position
3 x On/On
Connection
Solder lug
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
C & K COMPONENTS E301SD1CBE
- ()
Our service for you
Technical specifications
- Packaging type
Bulk
- Product type
Toggle switch
- Functions
momentary/momentary
- Switch position
3 x On/On
- Material
Nylon
- Connection
Solder lug
- Switching voltage
20 V AC
20 V DC
- Switching current (max.)
0.4 A
- Min. temperature
-30 °C
- Max. temperature
+85 °C
- Length
12.70 mm
IP57
- RoHS-compliant
Yes
- Type
E301SD1CBE
Documents & Downloads
Datasheet
Datasheet 2579732 C & K Switches E301SD1CBE Toggle switch 20 V AC, 20 V DC 0.4 A 3 x On/On IP57 momentary/momentary 1 pc(s) Bulk
User & Safety Instructions
User & Safety Instructions 2579732 C & K Switches E301SD1CBE Toggle switch 20 V AC, 20 V DC 0.4 A 3 x On/On IP57 momentary/momentary 1 pc(s) Bulk
Description
Toggle Switch, Momentary, Solder Terminal, Toggle Actuator, Through Hole-straight
Hints
Re switch position: content in parentheses describes the n/o and n/c contact constellation
