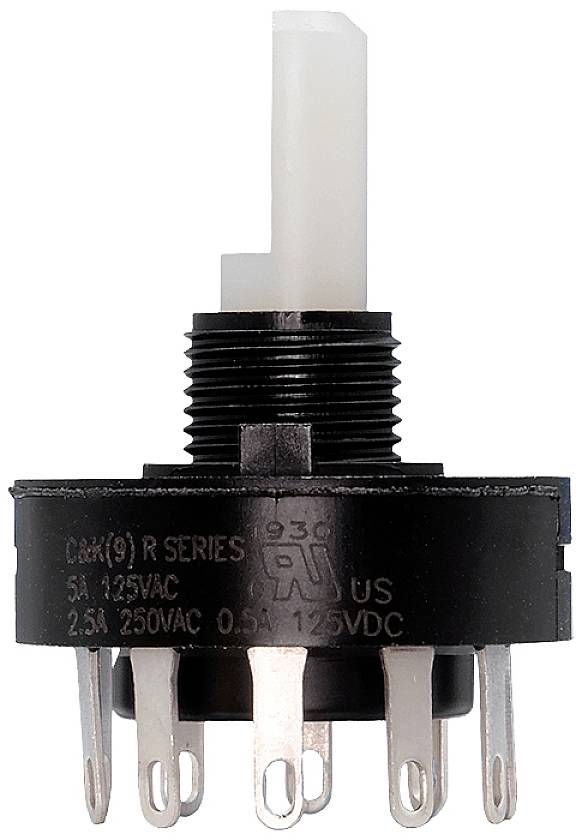

C & K Switches R20307RR01Q Rotary switch 125 V, 250 V 5 A Switch postions 3 1 pc(s) Piece
Packaging type
Piece
Product type
Rotary switch
Operation type
Rotary switch
Switch postions
3
Switching voltage
125 V
250 V
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
C & K COMPONENTS R20307RR01Q
- Multi-pole and multi-positionPositive detentPanel and PCB mountingIndustrial equipmentPortable toolsCeiling fans
Our service for you
Technical specifications
- Index Stops: Fixed
- Contact Timing: Non-shorting contacts
- Packaging type
Piece
- Product type
Rotary switch
- Switch/button features
Planar
- Functions
latch
- Operation type
Rotary switch
- Lighting type
None
- Switch position
2 x On/Off
- Switch postions
3
- Contact material
Copper alloy
- Connection
Soldering
- Switching voltage
125 V
250 V
- Switching current (max.)
5 A
- Min. temperature
-30 °C
- Max. temperature
+95 °C
- Content
1 pc(s)
- Type
R20307RR01Q
- RoHS-compliant
Yes
Documents & Downloads
Datasheet
Datasheet 2580803 C & K Switches R20307RR01Q Rotary switch 125 V, 250 V 5 A Switch postions 3 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 2580803 C & K Switches R20307RR01Q Rotary switch 125 V, 250 V 5 A Switch postions 3 1 pc(s) Piece
Description
Rotary Switch, 3 Positions, DP3T, Latched, 0.5A, 125VDC, Solder Terminal, Flat Type Actuator, Panel Mount-threaded
