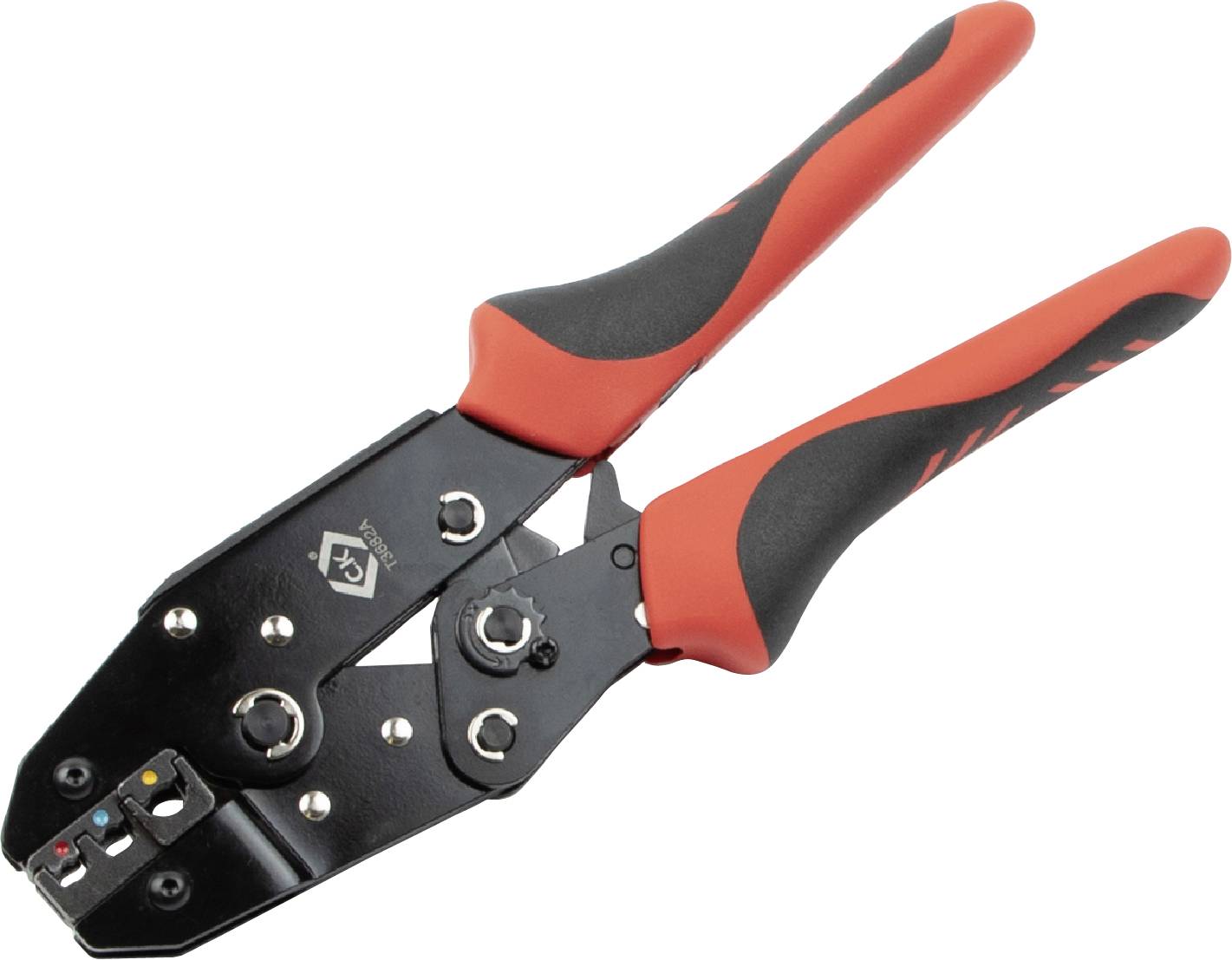

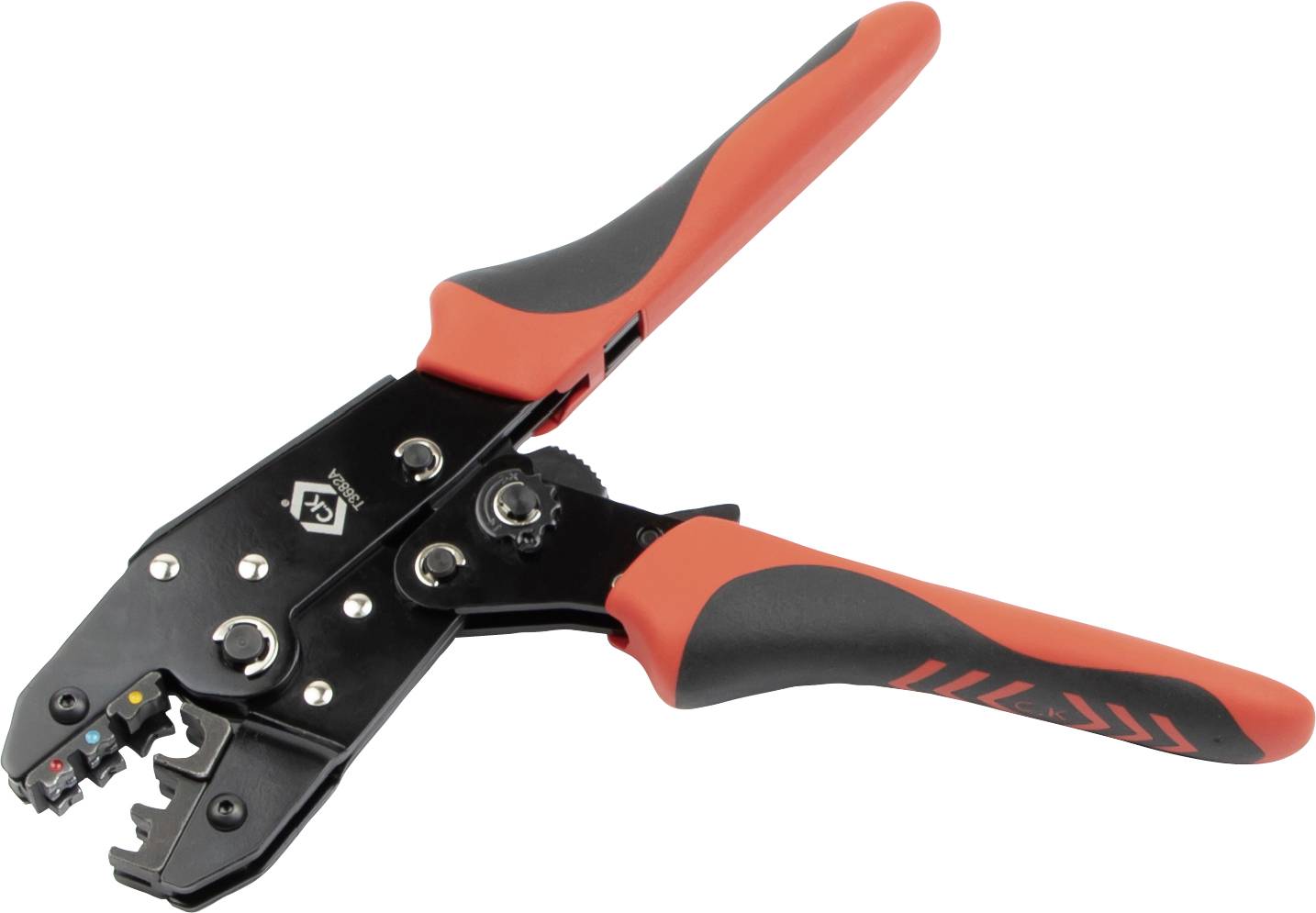

C.K T3682A Crimper Insulated wire connectors 0.5 up to 6 mm²
EAN:
Part number:
Item no:
Highlights & Details
Crimping pliers with ratchet mechanism for insulated cable connectors 0.5-6.0 mm²
- Capacity 0.5-6.0 mm² / 20-10 AWGVery robust, tested up to 40,000 applications Ergonomic two-component handles for easy and comfortable working
Technical specifications
- Manufacturer part #
T3682A
- Range of uses
Insulated wire connectors
- Crimp area
0.5 up to 6 mm²
- Crimp area AWG
20 up to 10 awg
- Crimp area (min.)
0.5 mm²
- Crimp area (max.)
6 mm²
- Crimp area AWG (min.)
10 awg
- Crimp area AWG (max.)
20 awg
- Length
250 mm
- Material
Carbon steel
- Material properties
alloyed
- Width
80 mm
- Height
25 mm
- Weight
0.604 kg
- Product type
Crimper
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2533439 C.K T3682A Crimper Insulated wire connectors 0.5 up to 6 mm²
Description

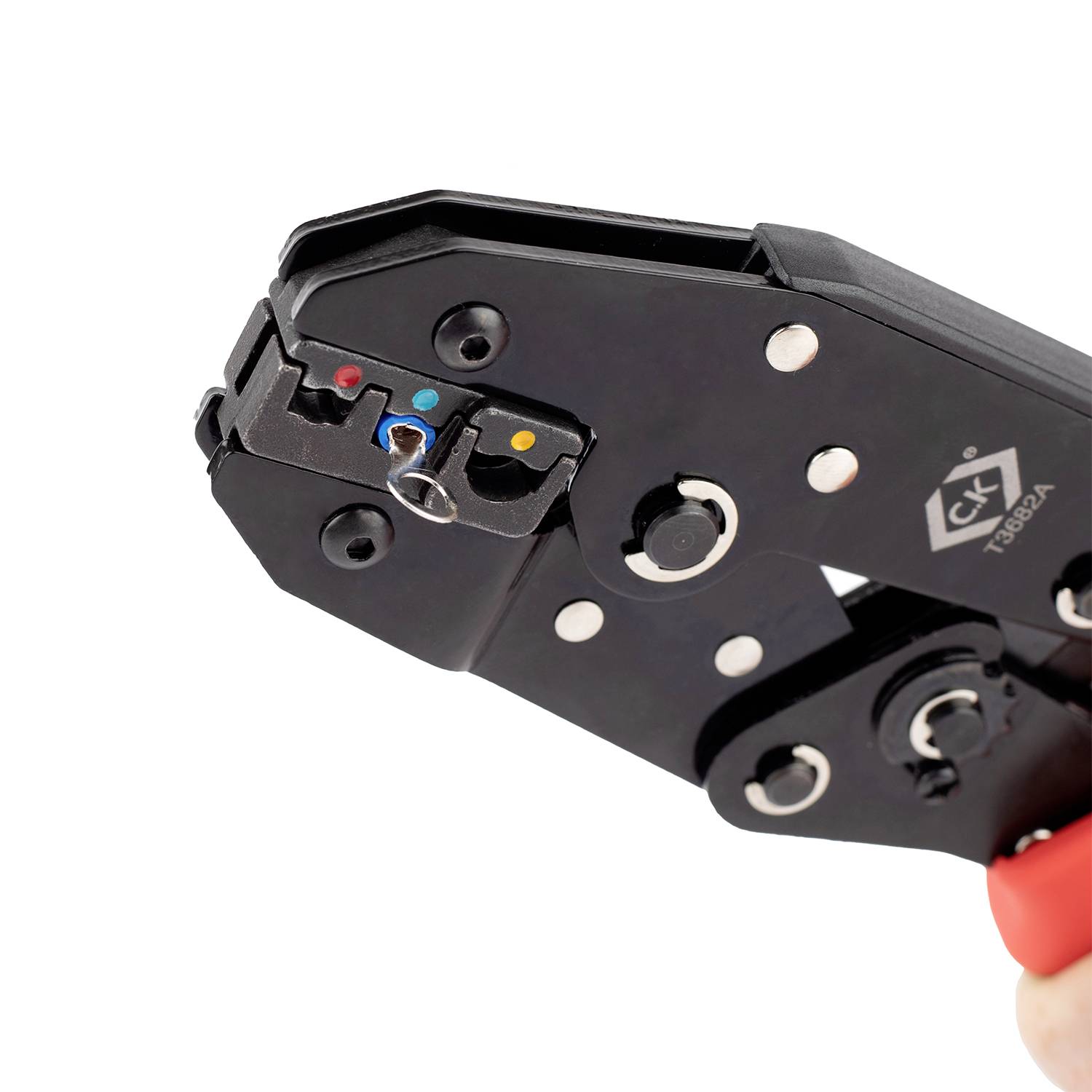

Designed for secure and secure crimping of green, red and blue insulated cable connectors. Ratchet system with automatic quick release, which releases the pliers again when the correct pressure is reached, in order to ensure precise crimping. Precision machined crimping jaws for qualitative crimping and secure connections. Made of fully hardened carbon steel for strength and durability.
This text is machine translated.
This text is machine translated.
