TOOLCRAFT PZ-506 430461 Crimper set 6-piece Insulated cable lugs, Non-insulated closed end cable lugs, Non-insulated ope
EAN:
Part number:
Item no:
Number
Total (€ 68.90 / piece)
€ 82.34
-16 %
€
Highlights & Details
439-pcs crimper set
- Interchangeable Crimping
- 10 years manufacturer guarantee
Technical specifications
- 12-stage torque setting:
- Storage box dimensions: 280 x 195 x 50 mm
- Manufacturer part #
430461
- Range of uses
Insulated cable lugs
Non-insulated closed end cable lugs
Non-insulated open end cable lugs
D-Sub plugs
Spark plug sockets
- Crimp area
- Crimp area AWG
- Length
225 mm
- Suitable for
Insulated cable shoe of 0.5 - 6.0 mm² (AWG 22-10)/closed, insulated cable lugs 1.5 - 10.0 mm² (AWG 20-8)/open, non-insulated cable lugs 0.5 - 6.0 mm² (AWG 20-10)/pin and socket contacts (D-Sub) from 0.5 - 10 mm² (AWG 22-6)/spark plugs and distributor 1 mm² (AWG 17)
- Product type
Crimper set
Variants(All information is without VAT, plus shipping costs)
Range of uses
Product type
TOOLCRAFT PZ-506 430461 Crimper set 6-piece Insulated cable lugs, Non-insulated closed end cable lugs, Non-insulated open end cable lugs, D-Sub plugs, Spark plug sockets
This article
Insulated cable lugs
Crimper set
Minimum order quantity: 1
Multiple: 1
€ 68.90*
TOOLCRAFT PZ-507 1365635 Crimper set 439-piece Cable lugs, Blade terminals, Blade terminal receptacles, Butt connectors, Ferrules 0.5 up to 16 mm²
Cable lugs
Crimper set
Minimum order quantity: 1
Multiple: 1
€ 82.34*
TOOLCRAFT PZ-500 Crimper w/o crimp inset, incl. hard case
Crimper
Minimum order quantity: 1
Multiple: 1
€ 27.72*
TOOLCRAFT 2-i-1 818644 Crimper Insulated blade terminals, Cable lugs, Butt connectors 0.5 up to 10 mm²
Insulated blade terminals
Crimper
Minimum order quantity: 1
Multiple: 1
€ 35.29*
TOOLCRAFT PZ-505 818645 Crimper 7-piece BNC, TNC coax connectors, FOC plugs RG6, RG8, RG11, RG58, RG59, RG62, RG174, RG179, RG213, RG8218
BNC, TNC coax connectors
Crimper
Minimum order quantity: 1
Multiple: 1
€ 73.94*

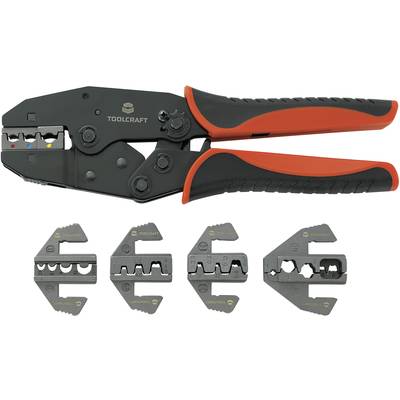

TOOLCRAFT PZ-504 820927 Crimper set 1004-piece Coax connector, Non-insulated crimp contacts, Insulated crimp contacts RG6, RG58, RG59, RG62
Coax connector
Crimper set
Minimum order quantity: 1
Multiple: 1
€ 67.22*
TOOLCRAFT PZ-501 1647552 Crimp set Incl. crimp set and case
Crimp set
Minimum order quantity: 1
Multiple: 1
TOOLCRAFT PZ-502 1672279 Crimp set incl. exchangeable crimp insets
Crimp set
Minimum order quantity: 1
Multiple: 1
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 430461 TOOLCRAFT PZ-506 430461 Crimper set 6-piece Insulated cable lugs, Non-insulated closed end cable lugs, Non-insulated ope
Information
Information 430461 TOOLCRAFT PZ-506 430461 Crimper set 6-piece Insulated cable lugs, Non-insulated closed end cable lugs, Non-insulated ope
Warranty Terms
Warranty Terms 430461 TOOLCRAFT PZ-506 430461 Crimper set 6-piece Insulated cable lugs, Non-insulated closed end cable lugs, Non-insulated ope
Description

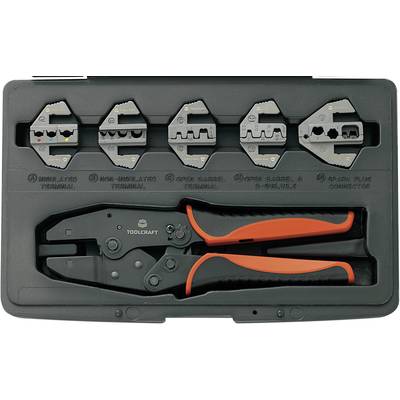

With 5 changeable crimping insets:
crimp insert A: for insulated cable shoe of 0.5 - 6.0 mm² (AWG 22-10)
crimp insert B: for closed, non-insulated cable lugs 1.5 - 10.0 mm² (AWG 20-8)
crimp insert C: for open, non-insulated cable lugs 0.5 - 6.0 mm² (AWG 20-10)
crimp insert H: for pin and socket contacts (D-Sub plug) 0.5 - 10mm² (AWG 22-6)
crimp insert H1: spark plugs and distributor 1 mm² (AWG 17)

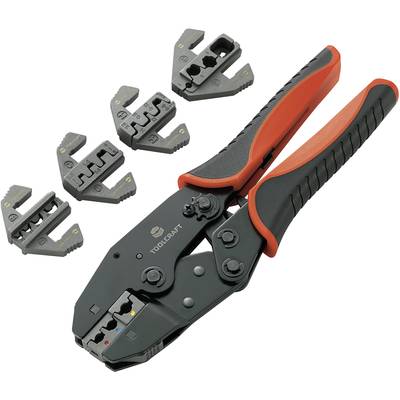

With the crimping-pliers-system PZ-500, you can use the interchangeable crimp inserts to process different applications with one crimping-plier. Please note the matching crimp sets, which we offer as optional accessories.
crimp insert A: for insulated cable shoe of 0.5 - 6.0 mm² (AWG 22-10)
crimp insert B: for closed, non-insulated cable lugs 1.5 - 10.0 mm² (AWG 20-8)
crimp insert C: for open, non-insulated cable lugs 0.5 - 6.0 mm² (AWG 20-10)
crimp insert H: for pin and socket contacts (D-Sub plug) 0.5 - 10mm² (AWG 22-6)
crimp insert H1: spark plugs and distributor 1 mm² (AWG 17)
With the crimping-pliers-system PZ-500, you can use the interchangeable crimp inserts to process different applications with one crimping-plier. Please note the matching crimp sets, which we offer as optional accessories.
Features
- Anti-slip handles
- Ratchet mechanism
- Adjustable crimping pressure (via dial and locking screw)
- Quick-release interchangeable jaws - no tools required
- Unlock mechanism (in case of incorrect operation)

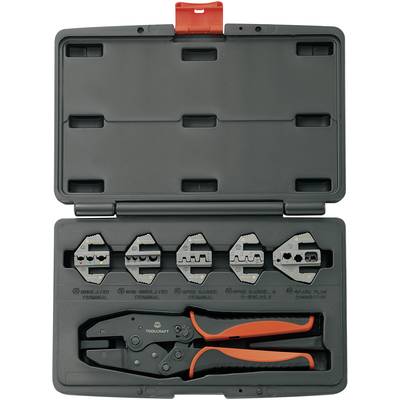

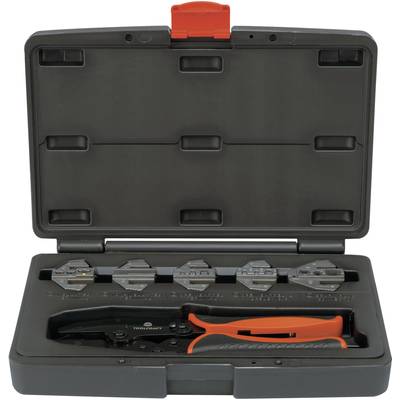

Scope of delivery
- Crimping pliers
- 5x crimp inserts
- Storage box.
Hints
This text is machine translated.
Frequently Bought Together
(*All information is plus legal VAT) This article
-16%
TOOLCRAFT PZ-506 430461 Crimper set 6-piece Insulated cable lugs, Non-insulated closed end cable lugs, Non-insulated ope
Conrad Electronic
€ 82.34
€ 68.90*
-11%
TOOLCRAFT PLE-0A1 Crimping Bits Heatshrink terminals Crimp area: 0.5 up to 10 mm² Suitable for brand (pliers): TOOLCRAFT
Conrad Electronic
€ 15.96
€ 14.28*

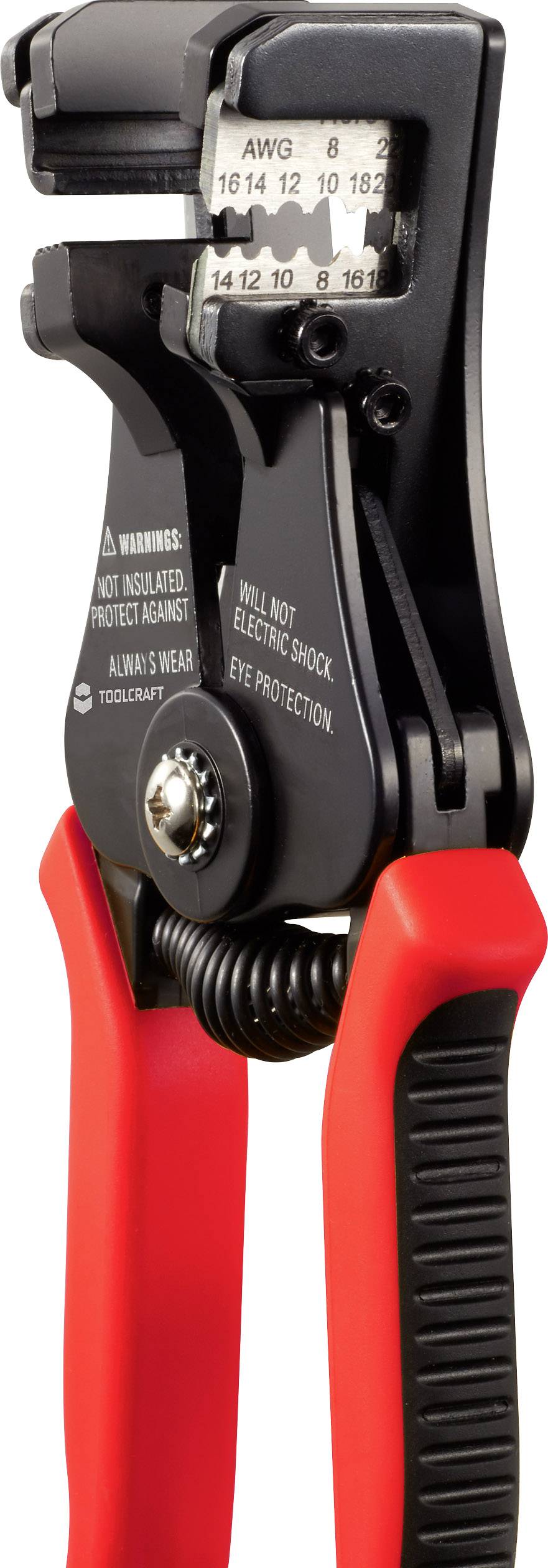

TOOLCRAFT TO-5017527 Cable stripper 0.5 up to 6 mm² 0.5 up to 6 mm
