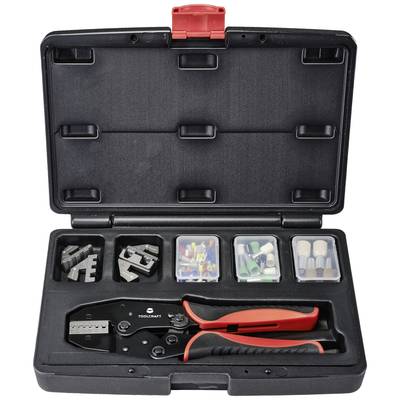

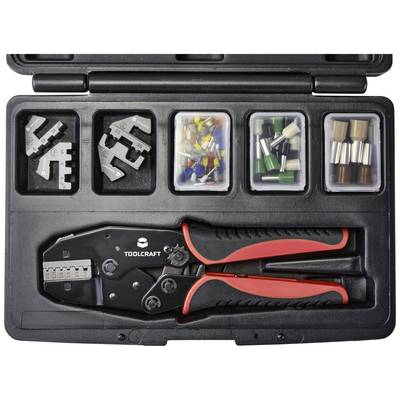

TOOLCRAFT TO-7703463 Crimper set 83-piece Ferrules 0.5 up to 35 mm² Incl. ferrule set and case, incl. exchangeable crimp
EAN:
Part number:
Item no:
Number (Package size 83 Parts)
Total (€ 47.05 / piece)
€
Highlights & Details
83-piece crimping tool set for wire-end sleeves from 0.5 to 35 mm2 with interchangeable crimping insets
- Ferrule terminal & tool box ideal for use on odular terminal block with in push in connection
Technical specifications
- It has high fatigue strength, abrasion and impact resistance, toughness, and torsional strength
- 1. Crimp area XX mm2 (min and max):

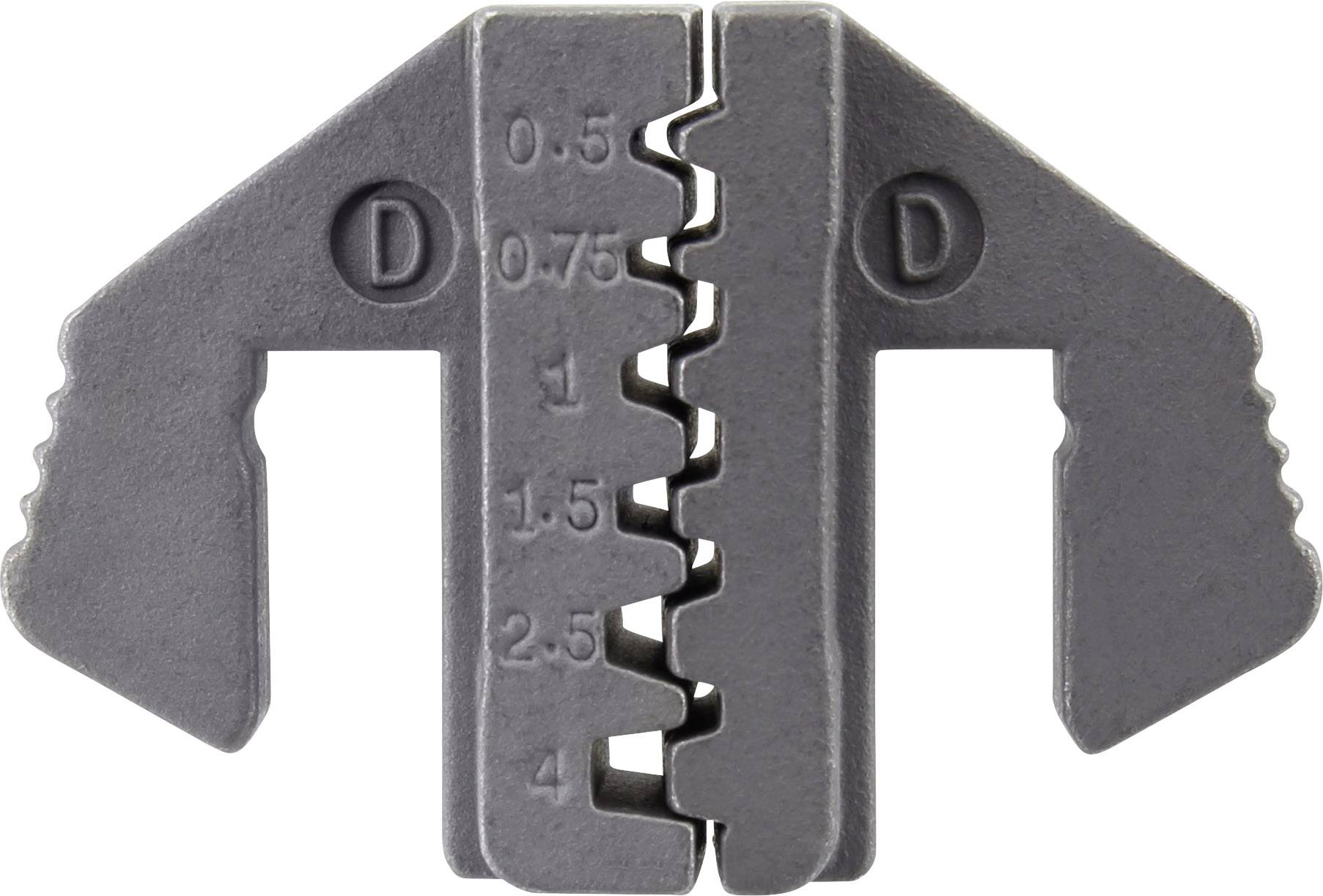

- Jaw D for Cord End Terminal (0.5-4.0mm2) (J12-D)

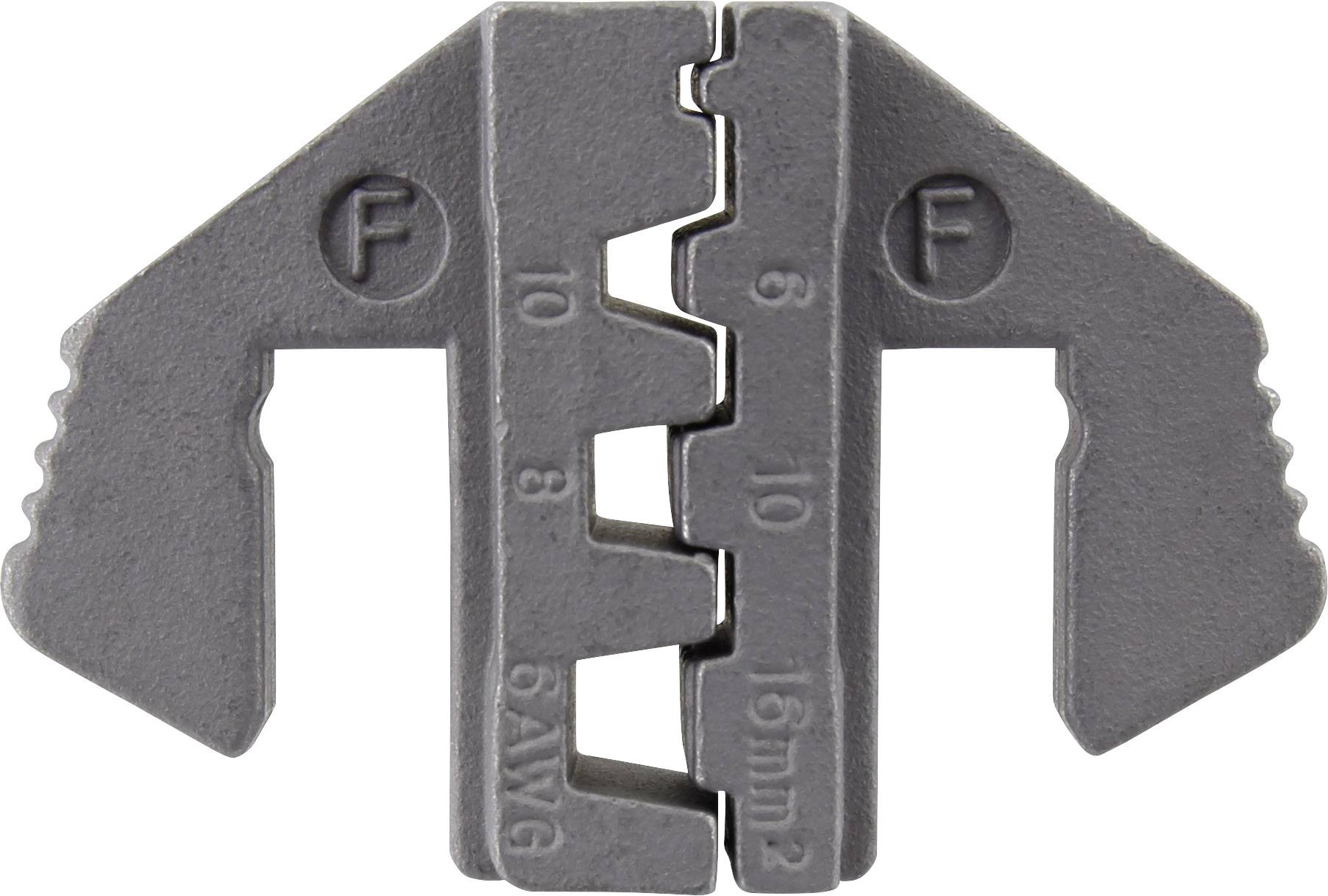

- Jaw F for Cord End Terminal (6.0-16mm2) (J12-F)
- Jaw F1 for Cord End Terminal (25-35mm2) (J12-F1)
- 2. Material
- Jaw:
- Material: AISI-4140
- Procedure: Precision and Wax-Lost Casting
- Treatment: Finished with Heat treatment
- Surface Treatment: Zinc Phosphate

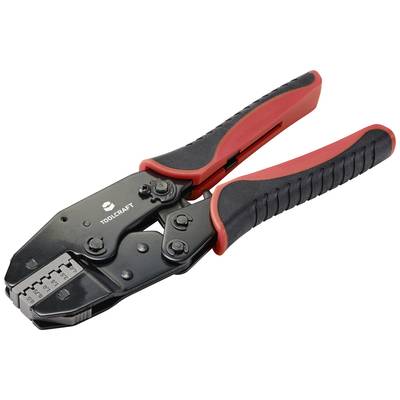

- Quick Change Ratchet Crimper:
- Material:
- Body: Carbon Steel
- Handle: PP+TPR(PAHs Approved)
- Cord End Terminal:
- Terminal Material: Copper Tube
- Plating: Electro Tin Plated
- Insulated Material: Nylon
- Manufacturer part #
TO-7703463
- Range of uses
Ferrules
- Crimp area
0.5 up to 35 mm²
- Crimp area AWG
- Crimp area (min.)
0.5 mm²
- Crimp area (max.)
35 mm²
- Length
280 mm
- Width
205 mm
- Height
50 mm
- Weight
1085 g
- Features

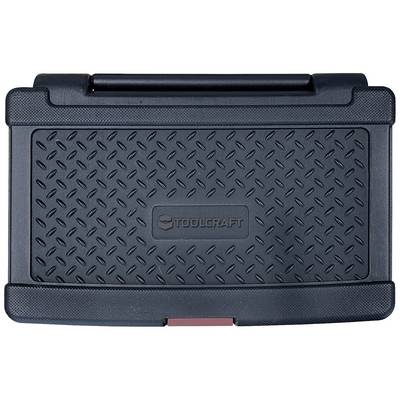

Incl. ferrule set and case
incl. exchangeable crimp insets
- Plastic free packaging
Plastic-free packaging
- Product type
Crimper set
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2567821 TOOLCRAFT TO-7703463 Crimper set 83-piece Ferrules 0.5 up to 35 mm² Incl. ferrule set and case, incl. exchangeable crimp
Warranty Terms
Warranty Terms 2567821 TOOLCRAFT TO-7703463 Crimper set 83-piece Ferrules 0.5 up to 35 mm² Incl. ferrule set and case, incl. exchangeable crimp
Description
The crimp pliers are intended for the crimping of crimp-type connectors that are suitable for this purpose. The replaceable inserts included provide different options for the use and application of the product. Suitable for crimping uninsulated wire-end sleeves to DIN 46228/1 as well as insulated wire-end sleeves and insulated double-wire-end sleeves to DIN 46228/4.With the TOOLCRAFT crimping pliers system PZ-500 you can use pliers to work on various applications. Please note the appropriate crimp sets, which we offer as an optional accessory.
This text is machine translated.
This text is machine translated.
Features
- Terminal blocks for the transmission of I/O signals
- Terminal blocks for power distribution
- Terminal blocks for motor connections - including single-phase and three-phase motors for various uses
- Terminal blocks to serve as ground blocks - designed specifically to
- make connecting to ground
- Terminal blocks to serve as fuse blocks - in which two wires make a connection to a fuse for circuit protection.
Scope of delivery
- 83 x Cord End Terminal
- 1 x Tool kit
Frequently Bought Together
(*All information is plus legal VAT) This article
TOOLCRAFT TO-7703463 Crimper set 83-piece Ferrules 0.5 up to 35 mm² Incl. ferrule set and case, incl. exchangeable crimp
Conrad Electronic
€ 47.05*
-46%

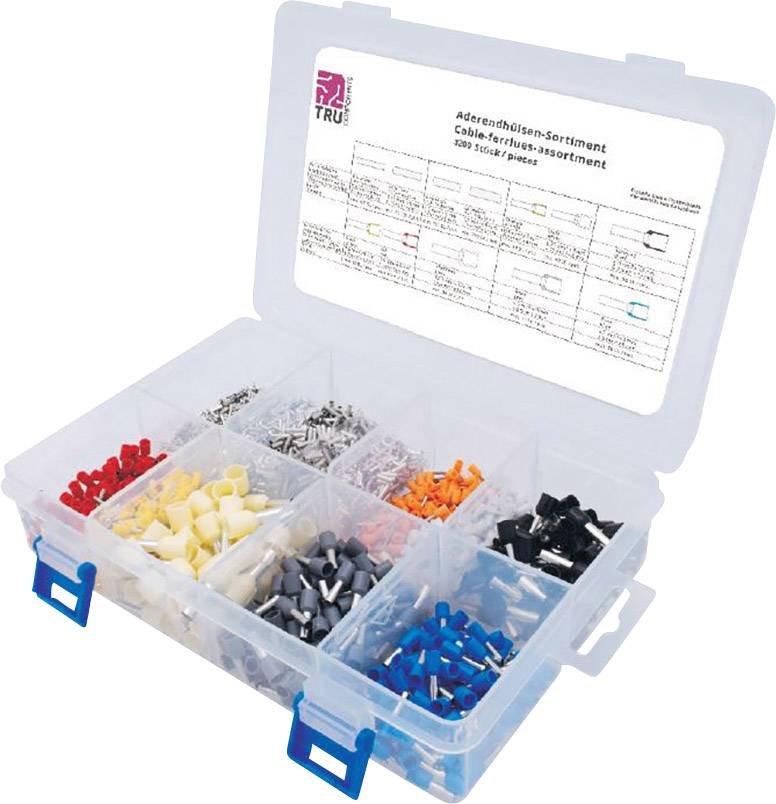

TRU COMPONENTS T1711C002 Ferrule set 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm², 4 mm², 6 mm², 10 mm² 3200 pc(s)
Conrad Electronic
€ 38.65
€ 21.00*
TOOLCRAFT 2180571 Crimping Bits Ferrules Crimp area: 0.5 up to 4 mm² Suitable for brand (pliers): TOOLCRAFT PZ-500
Conrad Electronic
€ 23.52*

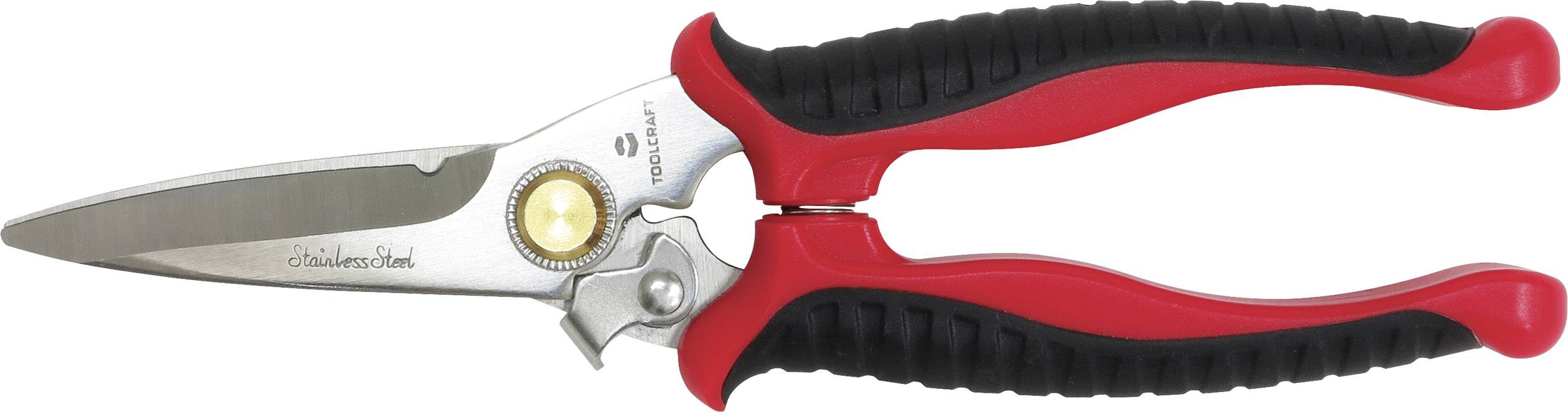

TOOLCRAFT Combination shears 200 mm 2180448 TO-6541344
