Buy TOOLCRAFT TO-9625893 Crimp inset Sumitomo 2.3II / TS90II-Series Terminal , Yazaki Terminal 7116-1471 0.35 up to 0.5 mm²

Metal part with fluted edges and several circular indentations in the centre. Labelled with 'Y6' and AWG numbers.

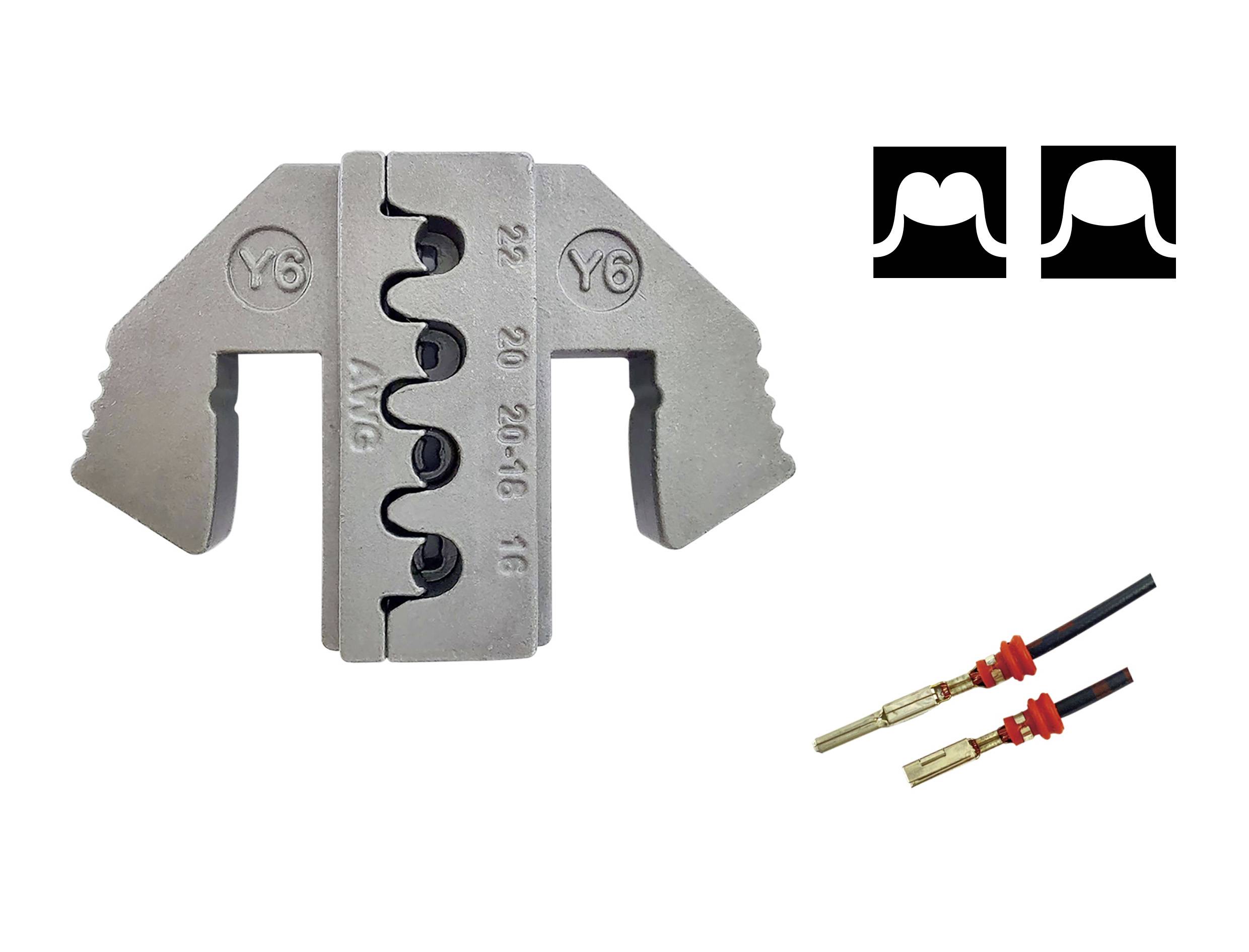

Wire stripper for cable clamps. Beside it, two symbols with patterns and two wires with plug connections. Main tool in the foreground.

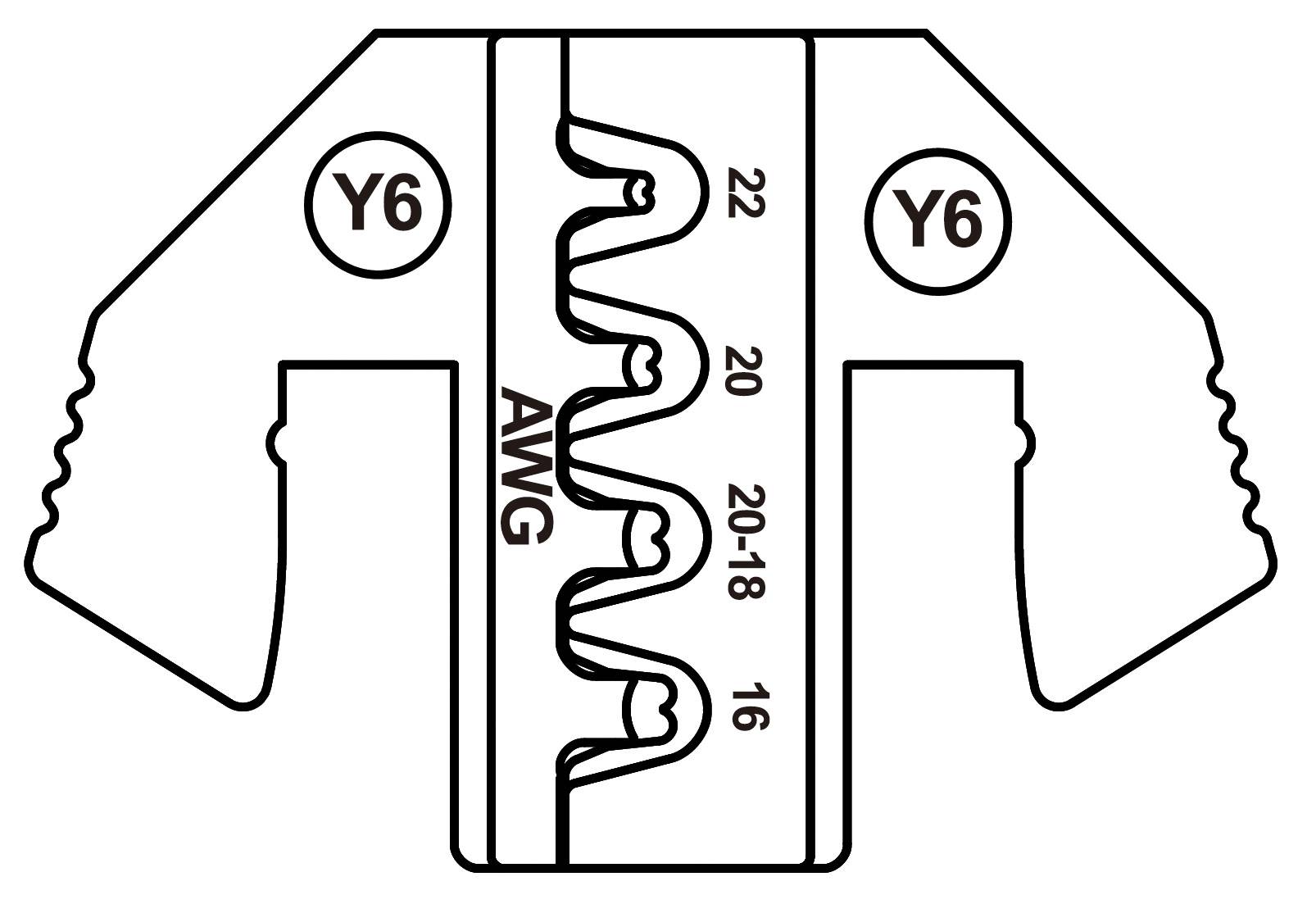

'Crimping pliers for AWG wire sizes 22 to 16. Corrugated notches for cable connection. Y6 designation visible top left and right.'

1/3

Our service for you

20 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 17.64 / piece)

€

Report legal concerns

Highlights & Details

TOOLCRAFT Crimping insert for Yazaki & Sumitomo 2.3II/ TS90II-Series Terminal

Precision and wax-lost casting
Treatment: Finished with heat treatment
Zinc phosphate surface treatment

Technical specifications

Material: AISI 4140 steel 1.7225 42CrMo4 SCM440

Manufacturer part #: TO-9625893

Range of uses: Sumitomo 2.3II / TS90II-Series Terminal
Yazaki Terminal 7116-1471

Crimp area AWG: 22 up to 16 awg

Crimp area (min.): 0.35 mm²

Crimp area (max.): 0.5 mm²

Crimp area AWG (min.): 16 awg

Crimp area AWG (max.): 22 awg

Length: 50.7 mm

Material properties: zinc phosphate coating
alloyed

Width: 10 mm

Height: 34 mm

Weight: 63 g

Suitable for: TOOLCRAFT

Crimp area: 0.35 up to 0.5 mm²

Plastic free packaging: Plastic-free packaging

Product type: Crimp inset

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3208631 TOOLCRAFT TO-9625893 Crimp inset Sumitomo 2.3II / TS90II-Series Terminal , Yazaki Terminal 7116-1471 0.35 up to 0.5 mm²

Warranty Terms

Warranty Terms 3208631 TOOLCRAFT TO-9625893 Crimp inset Sumitomo 2.3II / TS90II-Series Terminal , Yazaki Terminal 7116-1471 0.35 up to 0.5 mm²

Description

Crimping inserts for TOOLCRAFT crimping pliers

Features

AWG 22/20/20-18/16
Suitable for Yazaki & Sumitomo 2.3II/ TS90II-Series Terminal

Scope of delivery

1 Crimp insert

Hints

For operating the TOOLCRAFT system pliers Order No. 1423556 or identical model necessary!
