TOOLCRAFT TO-9625875 Crimp inset Yazaki YES/YESC 1.5 Sealed Terminal 0.35 up to 1 mm² Suitable for brand (pliers) TOOLCR
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 22.68
3
4% = € 0.98
€ 21.70
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 22.68 / piece)
€
Highlights & Details

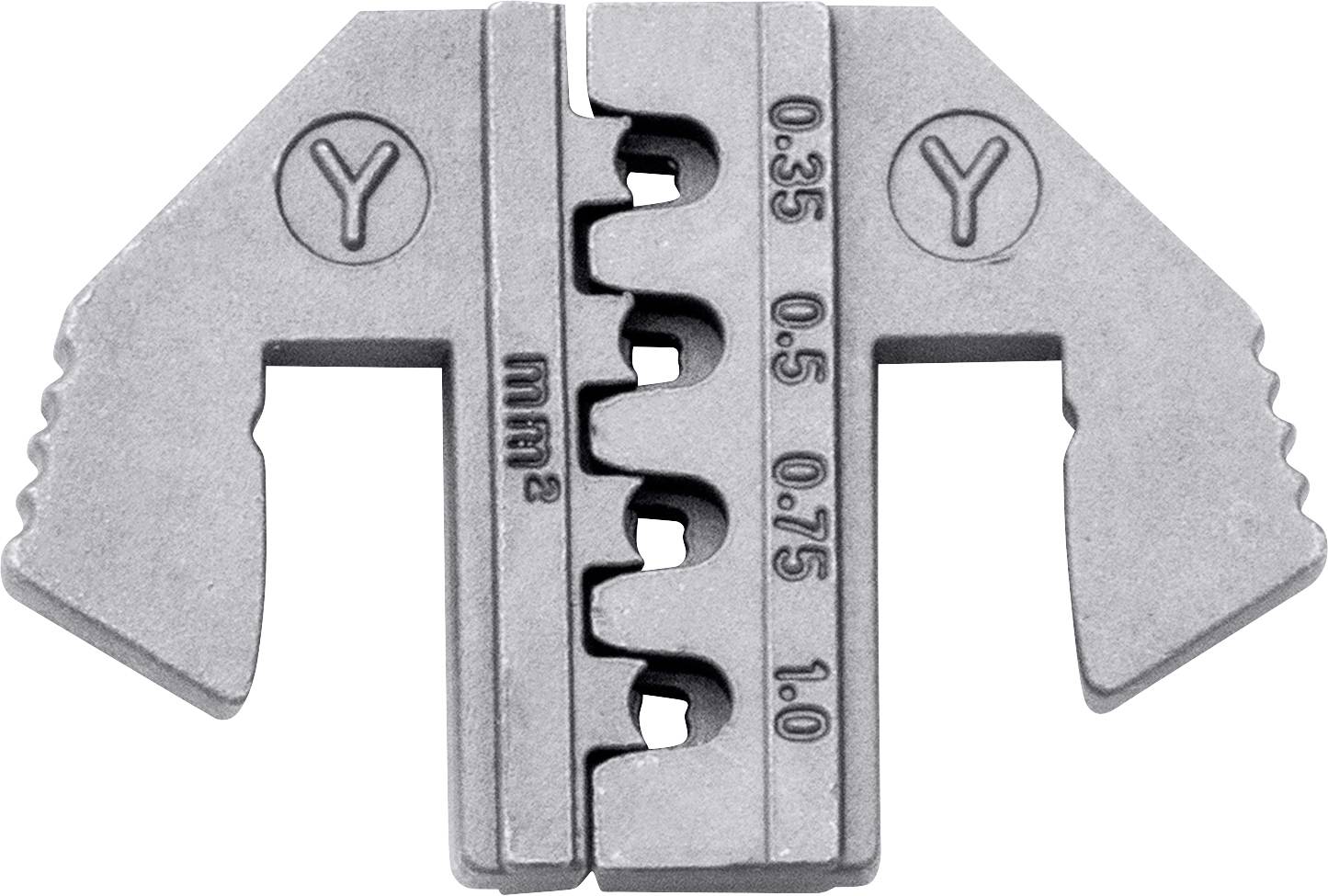

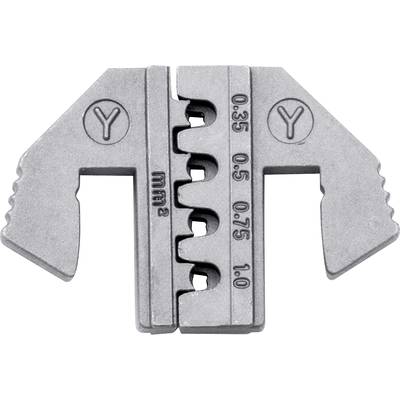

TOOLCRAFT Crimping insert for 0.35-1.0 mm2 Yazaki YES/YESC 1.5 Sealed Terminal
- Precision and wax-lost casting
- Treatment: Finished with heat treatment
- Zinc phosphate surface treatment
Technical specifications
- Material: AISI 4140 steel 1.7225 42CrMo4 SCM440
- Manufacturer part #
TO-9625875
- Range of uses
Yazaki YES/YESC 1.5 Sealed Terminal
- Crimp area AWG
22 up to 16 awg
- Crimp area (min.)
0.35 mm²
- Crimp area (max.)
1 mm²
- Crimp area AWG (min.)
16 awg
- Crimp area AWG (max.)
22 awg
- Length
50.7 mm
- Material properties
zinc phosphate coating
alloyed
- Width
10 mm
- Height
34 mm
- Weight
65.7 g
- Suitable for
TOOLCRAFT
- Crimp area
0.35 up to 1 mm²
- Plastic free packaging
Plastic-free packaging
- Product type
Crimp inset
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3208625 TOOLCRAFT TO-9625875 Crimp inset Yazaki YES/YESC 1.5 Sealed Terminal 0.35 up to 1 mm² Suitable for brand (pliers) TOOLCR
Warranty Terms
Warranty Terms 3208625 TOOLCRAFT TO-9625875 Crimp inset Yazaki YES/YESC 1.5 Sealed Terminal 0.35 up to 1 mm² Suitable for brand (pliers) TOOLCR
Description
Crimping inserts for TOOLCRAFT crimping pliers
Features

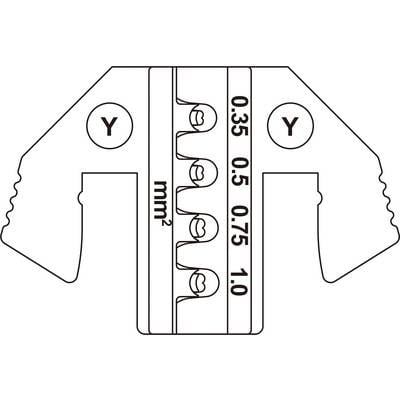

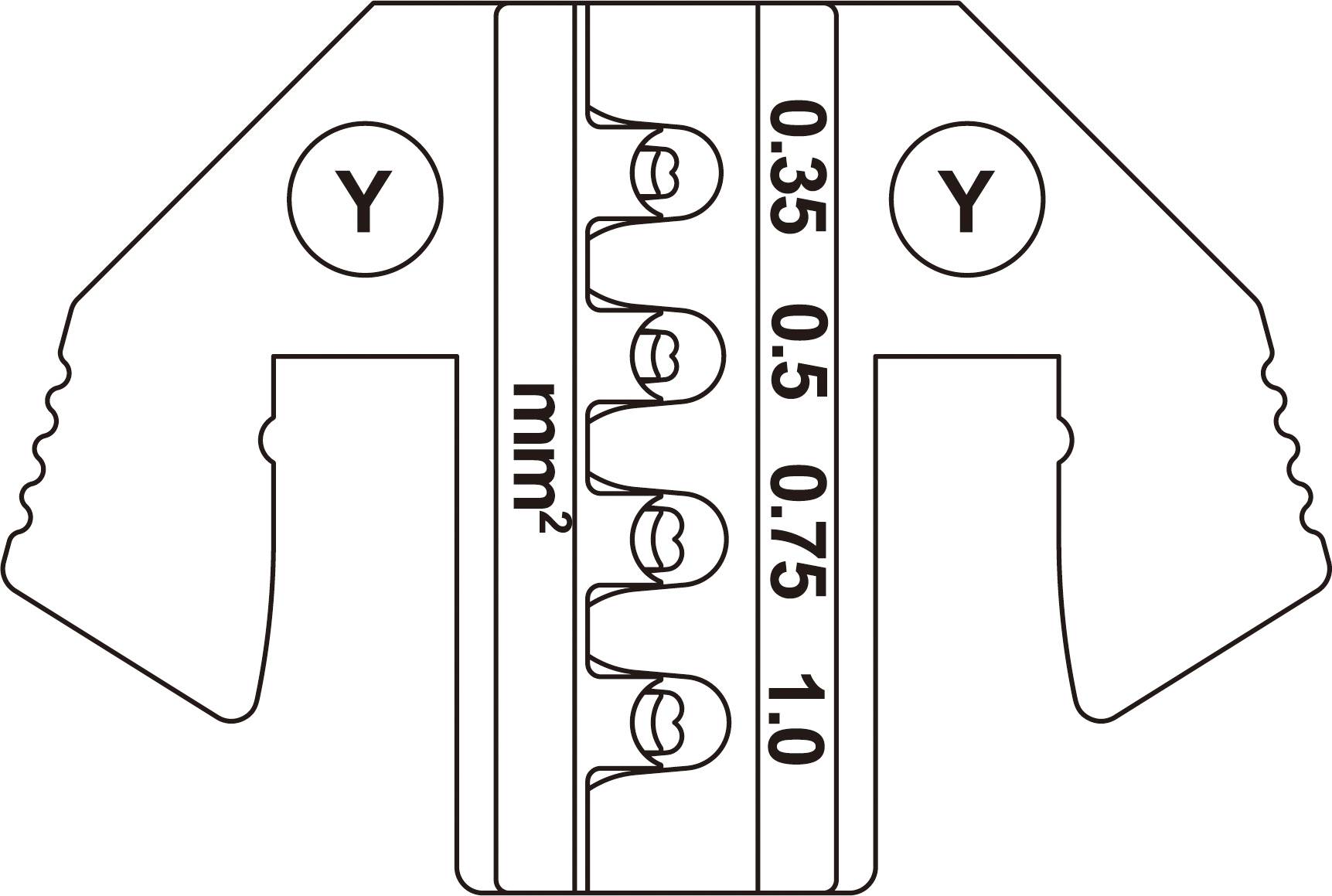

- Crimping range: 0.35/0.5/0.75/1.0 mm²
- AWG 22/20/18/16

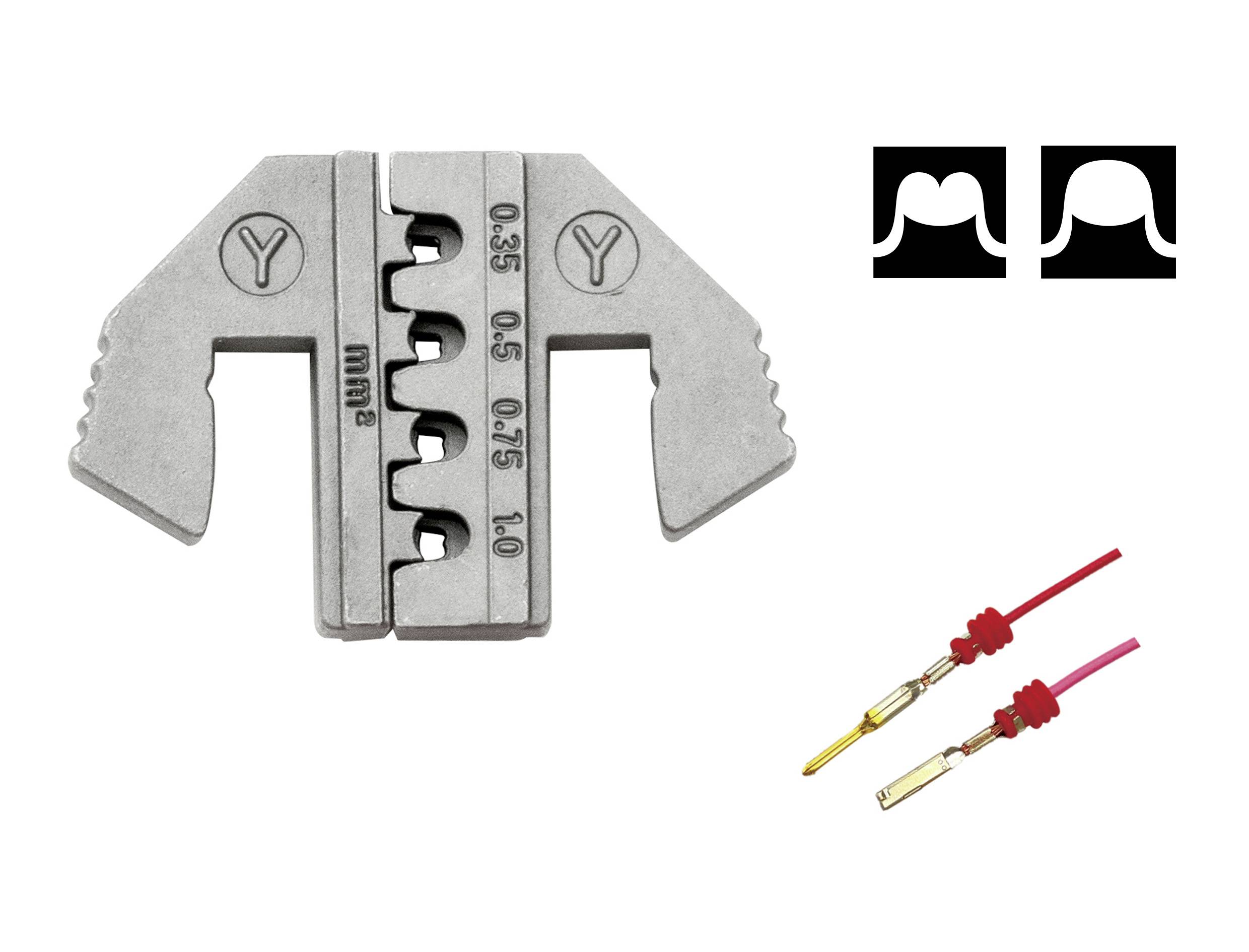

- Suitable for Yazaki YES/YESC 1.5 Sealed Terminal
Scope of delivery
- 1 Crimp insert
Hints
For operating the TOOLCRAFT system pliers Order No. 1423556 or identical model necessary!
