C.K T3684 Crimper Ferrules 0.25 up to 6 mm²
EAN:
Part number:
Item no:
Number
Total (€ 57.13 / piece)
€
Only 8 Piece(s) available
Highlights & Details

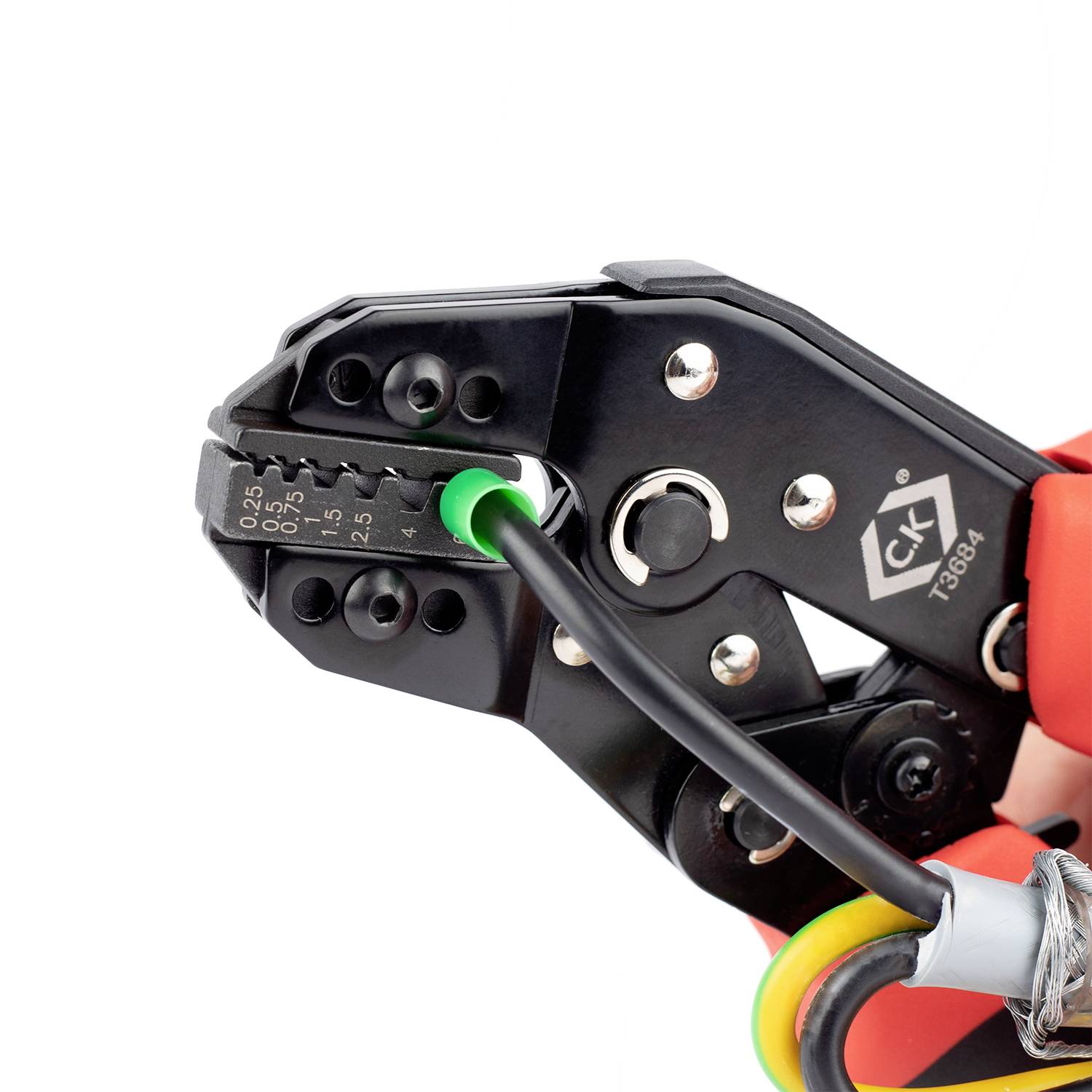

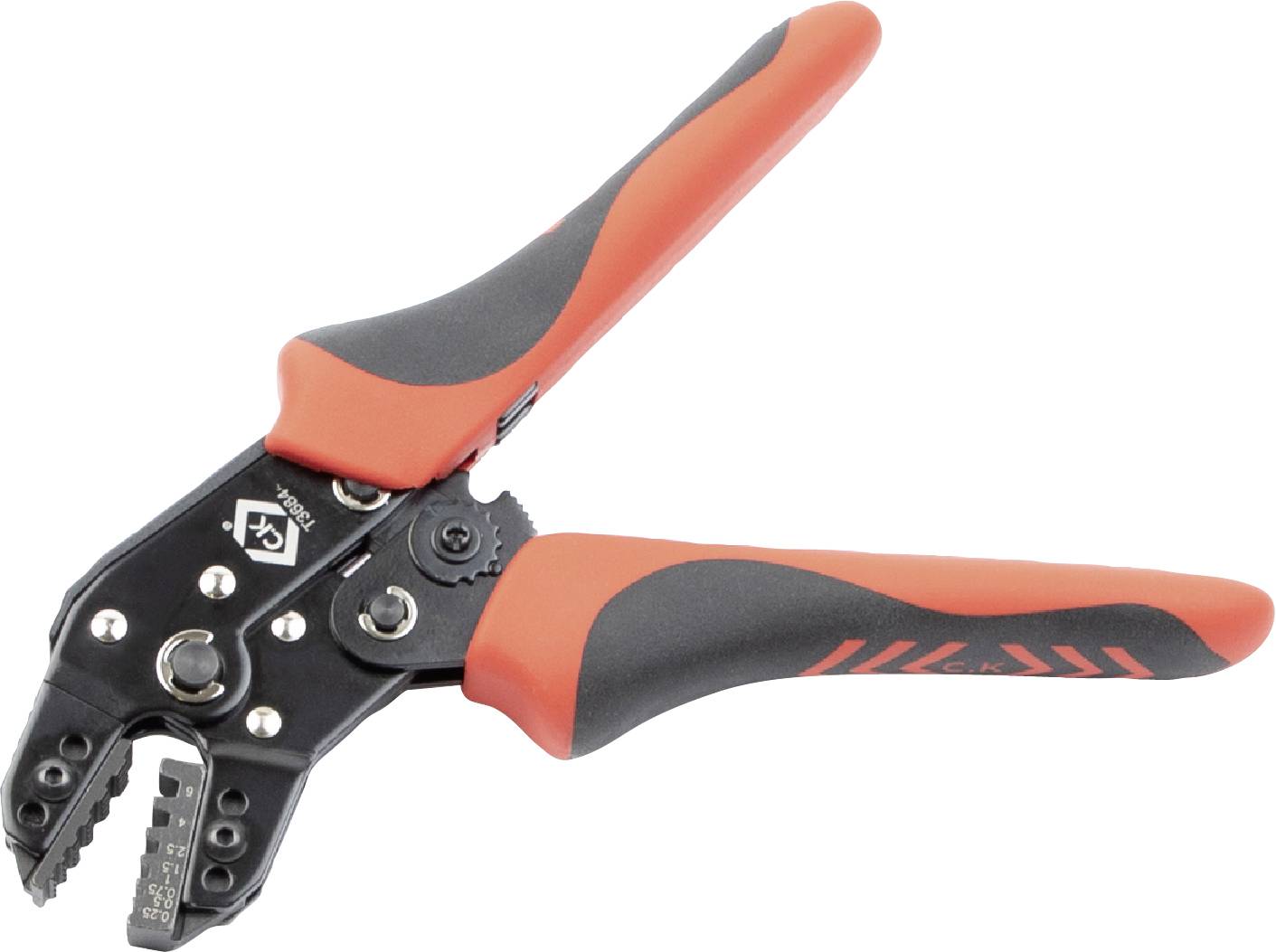

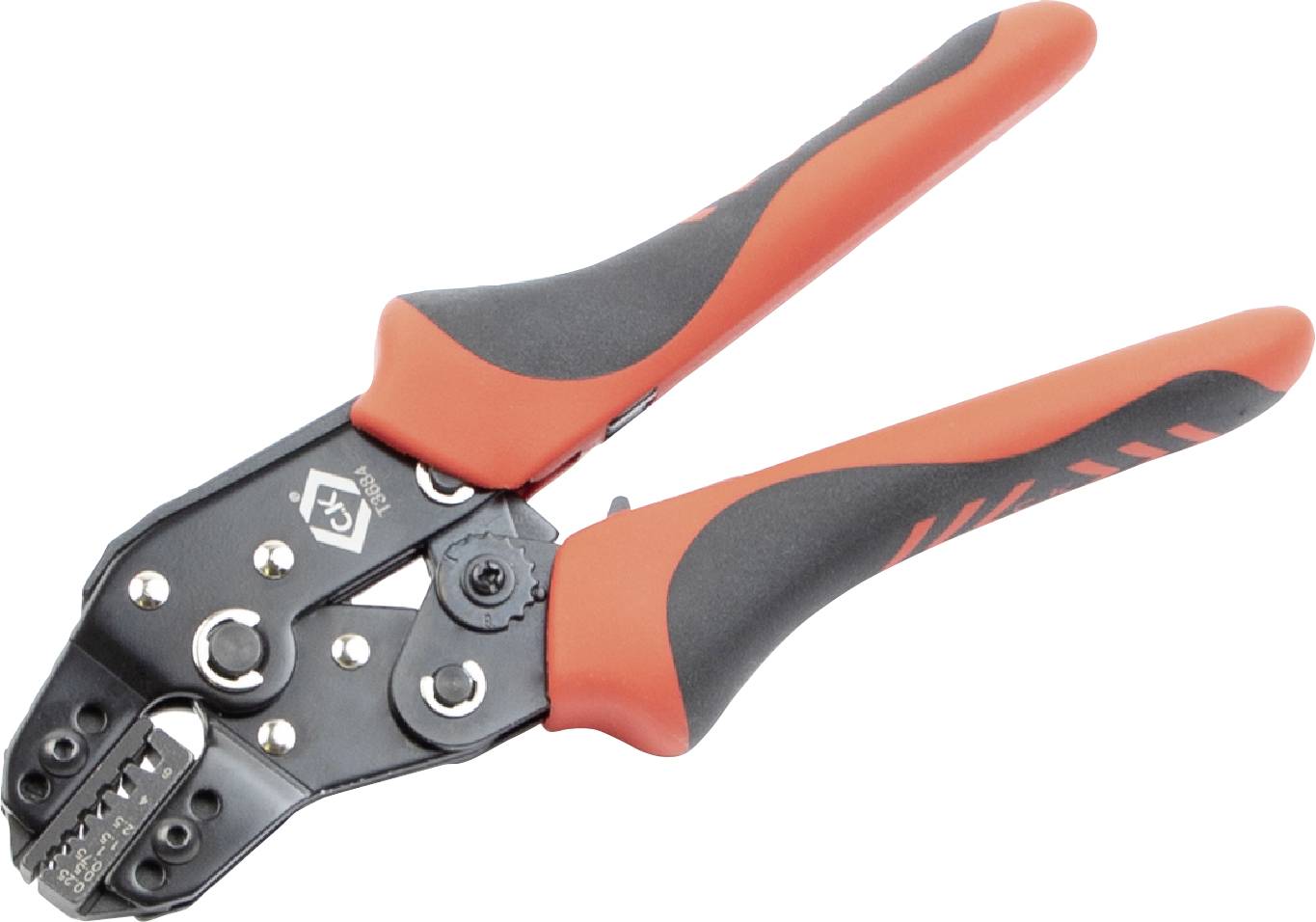

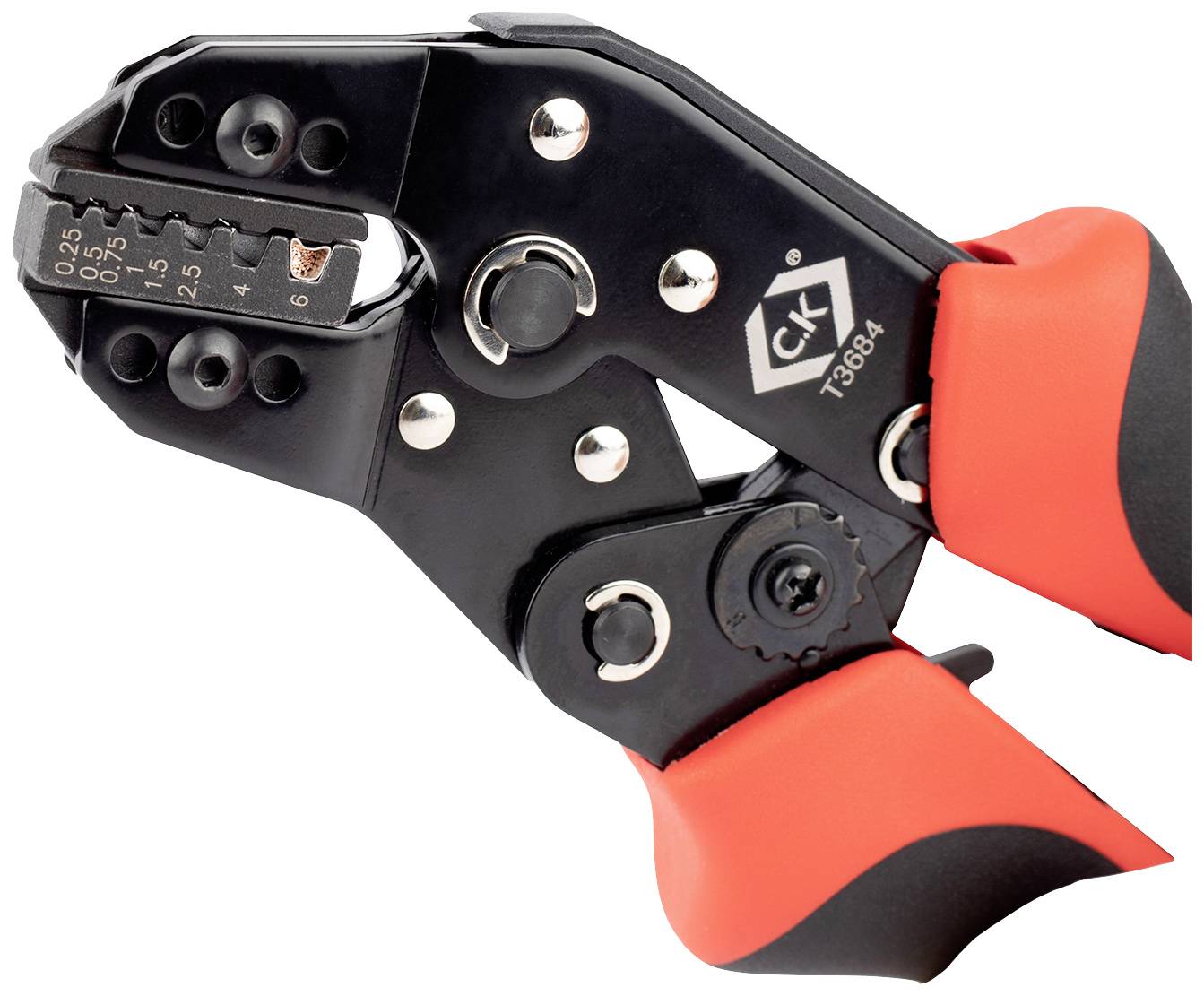

Crimping pliers with ratchet mechanism for wire-end sleeves 0.25-6.0 mm²
- Capacity: 0.25 - 6mm² / 20 - 10 AWGVery robust, tested up to 40,000 applications Ergonomic two-component handles for easy and comfortable working
Technical specifications
- Manufacturer part #
T3684
- Range of uses
Ferrules
- Crimp area
0.25 up to 6 mm²
- Crimp area AWG
20 up to 10 awg
- Crimp area (min.)
0.25 mm²
- Crimp area (max.)
6 mm²
- Crimp area AWG (min.)
10 awg
- Crimp area AWG (max.)
20 awg
- Length
210 mm
- Material
Carbon steel
- Material properties
alloyed
- Width
80 mm
- Height
25 mm
- Weight
390 g
- Product type
Crimper
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2533441 C.K T3684 Crimper Ferrules 0.25 up to 6 mm²
Description
Designed for secure and secure crimping of medium-sized wire end sleeves. Ratchet system with automatic quick release, which releases the pliers again when the correct pressure is reached, in order to ensure precise crimping. Precision machined crimping jaws for qualitative crimping and secure connections. Made of fully hardened carbon steel for strength and durability.
