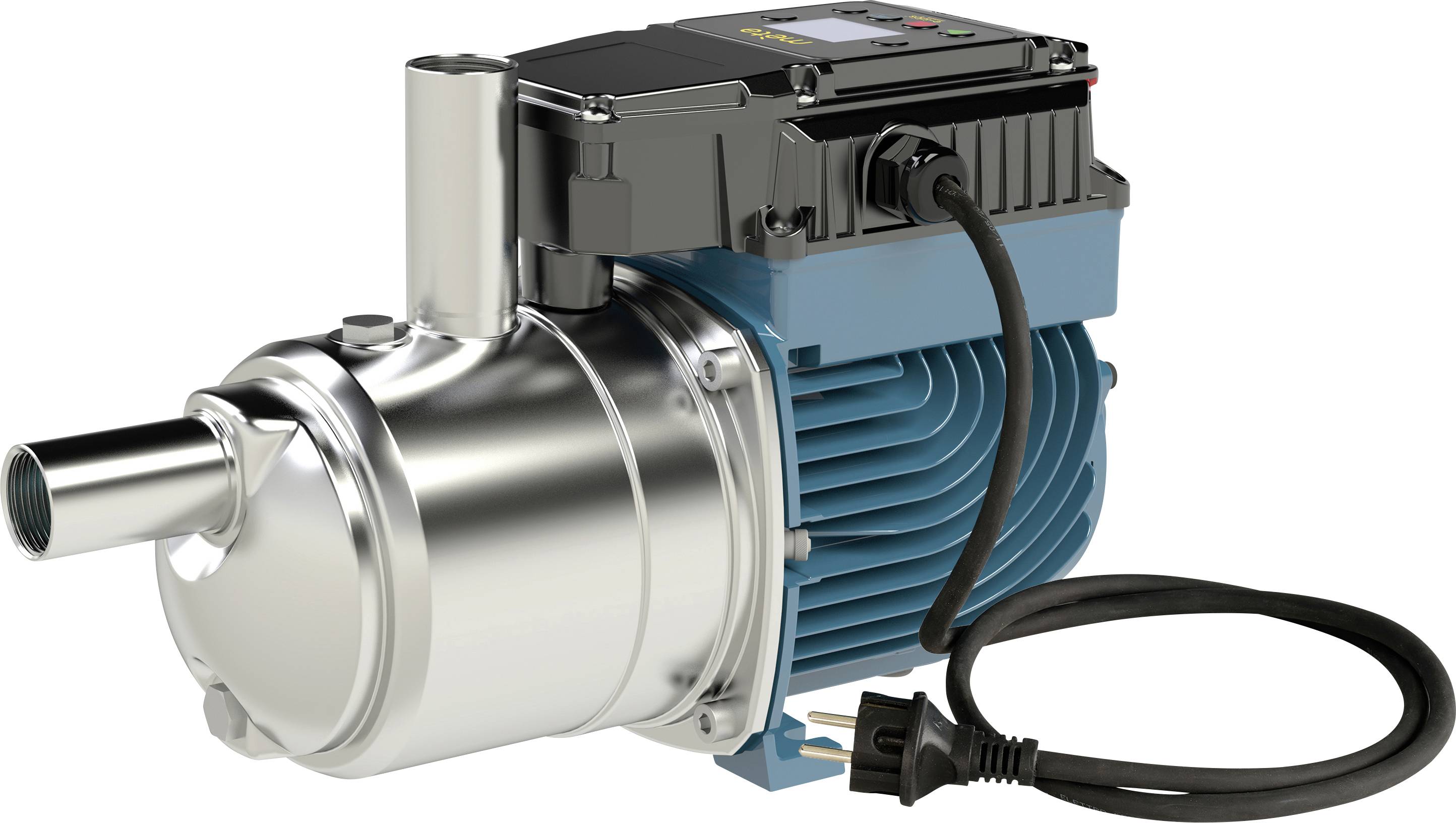

Calpeda Meta small T663A00200S0 Inverter pump 230 V 83.3 l/min
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Calpeda META SMALL - Digital water supply system with pump META SMALL
- Integrated frequency converter; Built-in expansion tank; Easy installation and operation; Adjustable operating and start-up pressure; Motor monitoring; Low hydraulic losses; Voltage and motor current monitoring; Maximum starting current monitoring
Technical specifications
- Product type
Inverter pump
- Operating voltage
230 V
- Max. feed rate
83.3 l/min
- Max. delivery head
55 m
- Max. discharge pressure
5.5 bar
- Connection
G 1" (suction and pressure side)
- Type
Self-priming water supply system with frequency converters
- Float switch
No
- Overload protection
Yes
- Max. cable length
1.5 m
- Dim
(W x H x D) 161 x 235 x 387 mm
- Width
161 mm
- Height
235 mm
- Depth
387 mm
- Weight
9.8
Doesn't apply
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 3733464 Calpeda Meta small T663A00200S0 Inverter pump 230 V 83.3 l/min
User & Safety Instructions
User & Safety Instructions 3733464 Calpeda Meta small T663A00200S0 Inverter pump 230 V 83.3 l/min
Description
Self-priming water supply system with integrated frequency converter, in compact and robust design, with a large power range and motor according to efficiency class IE4.
MÈTA SMALL is an easy-to-install plug and play solution, with a frequency converter, pressure sensor, LCD display, check valve and an integrated expansion tank.
This text is machine translated.
MÈTA SMALL is an easy-to-install plug and play solution, with a frequency converter, pressure sensor, LCD display, check valve and an integrated expansion tank.
This text is machine translated.
Features
- Multi-stage self-priming rotary pump; with LCD display, pressure sensor, check valve, integrated membrane container; P1 = 0.65 kW, 230 V, 50Hz, 5.9A; IPX4, max. 4,500 RPM, IE4; slide ring seal: carbon/ceramic/NBR; completely assembled for connection with cable and shock-proof plug
Hints
Max. Flow rate 140.0 /min
Max. Delivery height (H max.): 55.0m
Max. Power consumption (P1): 1.35kW
Voltage 230 V/50 Hz
Nominal current: 5.9A
Pressure connection G 1"
