Camille Bauer DACT-60 600:1 181256 LVDT Primary current 10 A Secondary current 0.0167 A Line feed-through (H x W):60 x 6
EAN:
Part number:
Item no:
Highlights & Details
Differential current transformer type A for the detection of differential current in grounded AC networks, primary conductor opening 60 mm
- Input current (current) 10 A
- Output current 0.0167 A
- Line feed-through diameter 60 mm
Technical specifications
- Product type
LVDT
- Primary current
10 A
- Secondary current
0.0167 A
0.05 W
- Line feed-through diameter
60 mm
- Type
DACT-60 600:1
- Output current
0.0167 A
- Input current
10 A
- Line feed-through (W)
60 mm
- Line feed-through (H x W)
60 x 60 mm
- Line feed-through (H)
60 mm
Through-feed current converter
60 mm
FALSE
10 A
TRUE
0.05 VA
0.0167 A
TRUE
FALSE
Plug-in connection
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3531986 Camille Bauer DACT-60 600:1 181256 LVDT Primary current 10 A Secondary current 0.0167 A Line feed-through (H x W):60 x 6
Conformity certificate
Conformity certificate 3531986 Camille Bauer DACT-60 600:1 181256 LVDT Primary current 10 A Secondary current 0.0167 A Line feed-through (H x W):60 x 6
Description

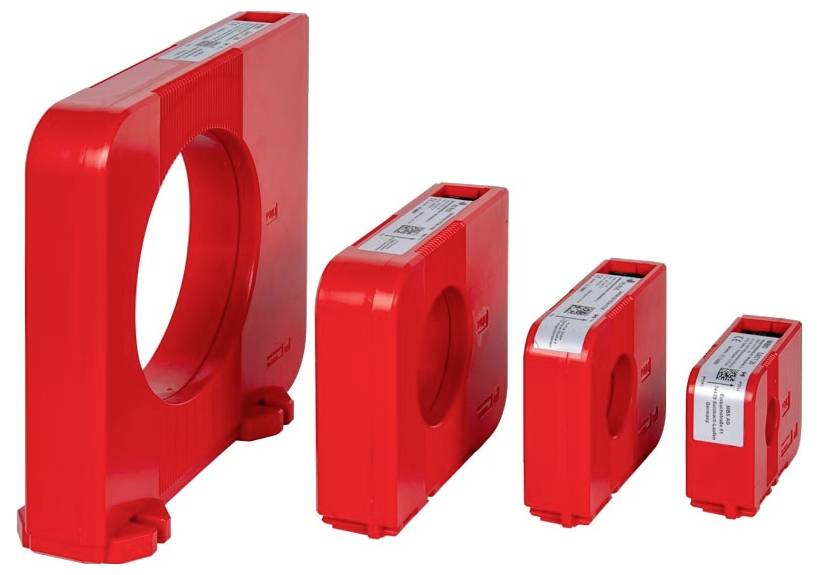

Differential current transformer attachment. The plug-in differential current transformers of the series "DACT" type A detect very small currents. In conjunction with our SINEAX DM5000, AMx000, CENTRAX CUX000 and LINAX PQx000 device variants, they can be used for the differential and fault current monitoring of machines and plants. Highly sensitive current sensor for detecting the smallest residual currents Simple connection using 4-pin WAGO® spring-loaded terminals High safety, thanks to integrated surge protection Flexible use due to a large frequency range Simple and fast mounting. Transmission ratio: 600/1 Primary current: 10 A Accuracy class: 1 round conductors: ⌀ 60 mm.
