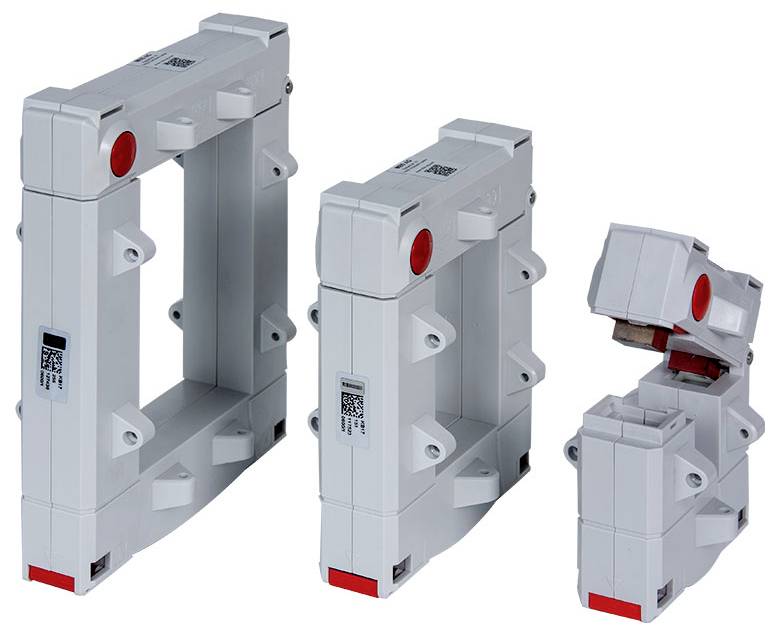

Camille Bauer KBU-58D 600:1 181280 Current transformer attachment Primary current 10 A Secondary current 0.0167 A Line f
EAN:
Part number:
Item no:
Highlights & Details
Cable conversion differential current transformer, for use in awkward spaces, primary conductor opening 50 x 80 mm
- Input current (current) 1000 A
- Output current 1 A
- Line feed-through diameter 50 mm
Technical specifications
- Product type
Current transformer attachment
- Fitting type
Flip mount
- Primary current
10 A
- Secondary current
0.0167 A
0.05 W
- Line feed-through diameter
50 mm
- Type
KBU-58D 600:1
- Output current
1 A
- Input current
1000 A
- Line feed-through (W)
80 mm
- Line feed-through (H x W)
50 x 80 mm
- Line feed-through (H)
50 mm
Cable rebuilding current converter
50 mm
FALSE
10 A
TRUE
0.05 VA
0.0167 A
TRUE
FALSE
Screw connection
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3531965 Camille Bauer KBU-58D 600:1 181280 Current transformer attachment Primary current 10 A Secondary current 0.0167 A Line f
Conformity certificate
Conformity certificate 3531965 Camille Bauer KBU-58D 600:1 181280 Current transformer attachment Primary current 10 A Secondary current 0.0167 A Line f
Description
Cable conversion differential current transformer. Thanks to their compact design, easy installation and the divisible core halves, the cable conversion differential current transformers of the series "KBU" type A are particularly suitable for use in inaccessible places and with limited space. . These converters are the right choice for applications where interruption of the current path is problematic or need to be retrofitted easily. They cover very small currents. In conjunction with our SINEAX DM5000, AMx000, CENTRAX CUX000 and LINAX PQx000 device variants, they can be used for the differential and fault current monitoring of machines and plants. Highly sensitive current sensor for capturing the smallest fault currents Manipulation protection of the connections with sealable covers Ideal for subsequent installation in existing systems without interruption of the current supply Flexible use due to a large frequency range Simple and quick mounting thanks to separable core halves. Transmission ratio: 600/1 Primary current: 1000 A Secondary current: 1A Accuracy class: 1 Output: 0.05 VA Primary conductor: 50 x 80 mm.
