Camille Bauer PQ5000-Mobile CLM Network diagnostics Ballast testing

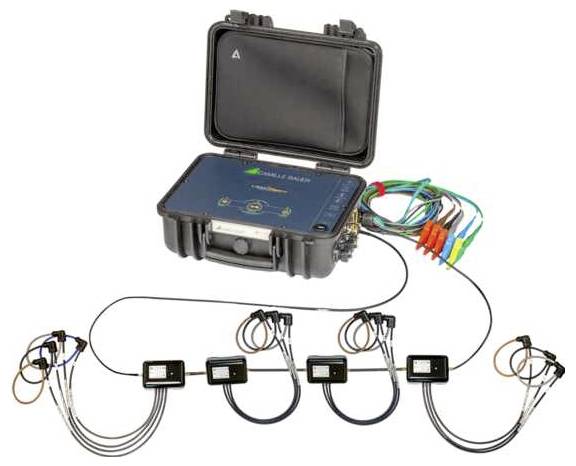

Multi-channel Power quality and load flow for line level 7 (low voltage). The LINAX® PQ5000 MultiPQ portable Power quality and load-flow meter for simultaneous and output-sharp recording of all load cycles, including power quality analysis per outlet. The extremely compact design saves a lot of weight It requires significantly less material for storage and transport Instead of having to calibrate nine individual devices only one measuring device The very efficient installation thanks to innovative technology ensures valuable time An evaluation instead of nine individual reports The budget is considerably less burdened as for nine individual purchases It is the ideal replacement device for the MULTI-QUANT (HAAG). Comprehensive analysis of the power supply quality for all exits Time-synchronous recording and analysis of up to 9 exits simultaneously Only one measuring device saves money Instead of nine expensive single devices Only one measuring device reduces the installation effort enormously and saves time Only one evaluation instead of nine individual reports increases the effectiveness. Portable PQI multi-channel meter according to IEC 61000-4-30 Ed. 3 of the Class A Comprehensive PQ analysis for all voltages and currents Metrological certification IEC 61000-4-30 of MEAS according to IEC 62586-2 Integrated WebGUI as HMI, incl. comprehensive Cyber Protection hard shell case with IP65 with closed housing Auxiliary power 100 to 230V AC/DC by means of power adapter 300V CAT IV Safety requirement 600V CAT IV. (Measurement inputs current & voltage) Up to 36 current measurement inputs per device (9 x L1/L2/L3/N) Voltage drop-off L1/L2/L3/N/PE by means of voltage measuring lead Fault writer for current and voltage events: RMS1/2-values of all voltages and up to 36 currents as well as curve form recording of the voltages fault recording up to 3 minutes after the event list with trigger source, event type, Event duration Current values are time-synchronous to voltage Harmonics/interharmonics for all 4 streams of each channel Display and evaluation via WEB interface of the device Zoom options & data points for on-site analysis Load profile recording Data export via CSV files Data communication via LAN or WLAN access Point to various end devices Evaluation via PQIS®.

This text is machine translated.
