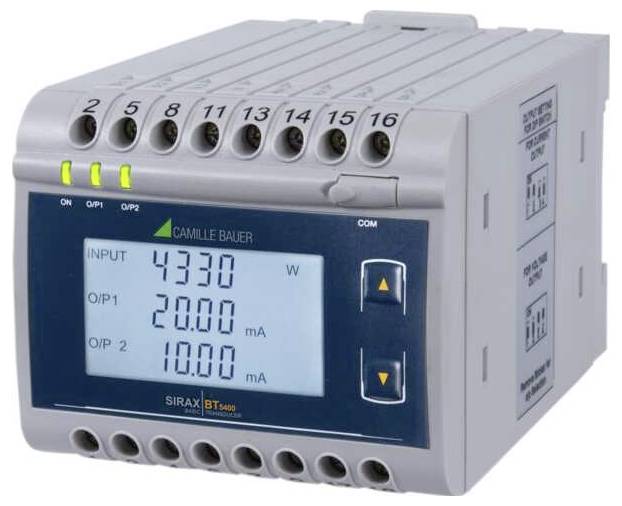

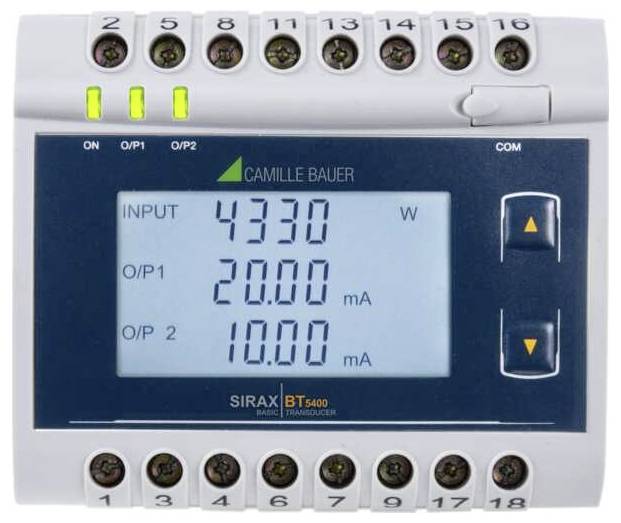

Camille Bauer SIRAX BT5400 175316 Transducer 1 pc(s)

Measuring transducer for power, phase angle and power factor The SIRAX BT5400 is used for measuring and converting active power, apparent power, reactive power, phase angle and power factor of single-phase or three-phase AC-systems with symmetric or asymmetric load in a proportional DC or direct current output signal. Connection type single-phase, or 3-phase 3-conductor direct or unladen, or 3-phase 4-conductor direct or unladen measuring input for power rated voltage up to 500 V, Nominal current 1 / 5 A 2 configurable analog outputs linear or with kink and an area unipolar of 0...20 mA / 4...20 mA or 0...10 V or bipolar of -20...0 mA or -10...0...+10 V fast local programming by push buttons or via software easy device operation on site Clear and well readable Representation of the measurement data via LCD display Flexible communication and remote reading via the integrated Modbus RTU interface DIN rail basic accuracy 0.2 %, basic accuracy phase angle, power factor 0.5 %. Basic unit: With LCD display, DIN rail mounting Input range: AC 3P / 3PN Frequency range: 25-60 Hz Measurement input Current over current: Without measuring input Current over voltage: Without measuring input Voltage: 100...500 VL-L Auxiliary power: 60…300 V AC/DC Bus connection: RS485 (RTU) Standard protocol: Modbus Outputs: Unipolar & Bipolar Measurement size: Standard test protocol: With test protocol (only in English).

This text is machine translated.
