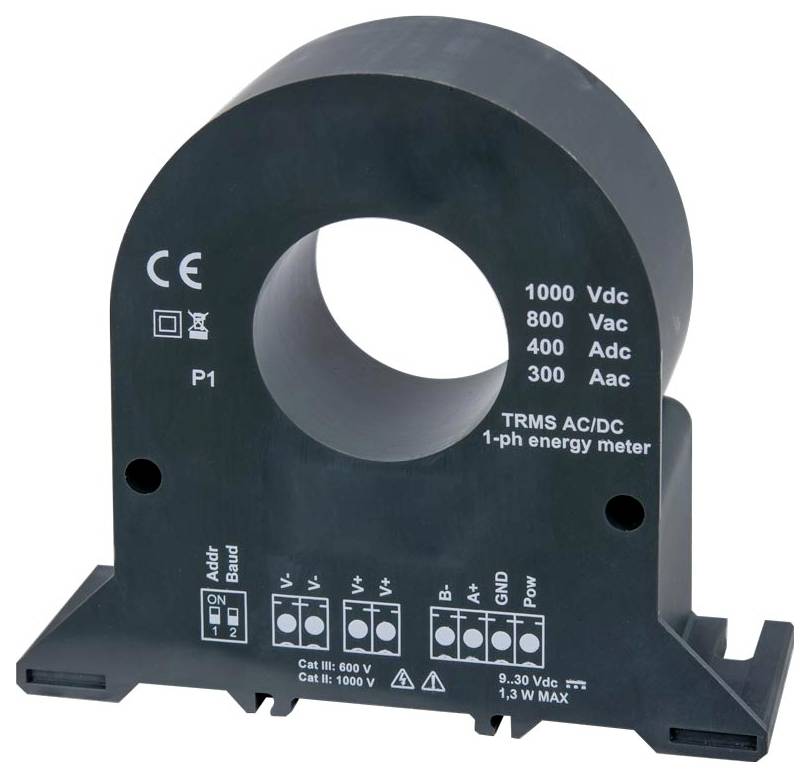

Camille Bauer SIRAX BT7250 Network diagnostics 1-phase Power testing

AC/DC current transformer with energy meter functionality: Nominal current 50 A AC/DC. SIRAX BT7200/BT7250 current transformer with integrated energy meter functionality for monitoring of 1-phase AC- and DC-applications. The large number of measured variables, the maximum current from up to 50 A AC/DC at up to 800 V AC / 1000 V DC, allow a wide range of applications from the devices. . Unbreakable plastic casing made from PBT Hardly flammable and self-extinguishing according to UL94 V0 Bi-directional energy measurement Max. Current range up to 50 A AC/DC Max. Voltage range up to 800 VAC / 1000 VDC Electrical isolation from the measurement circuit Configuration by means of configuration software Serial RS485 Modbus / RTU output DIN rail or wall mounting for vertical or horizontal position. Basic unit: Without display, for rail mounting Input range: AC/DC 1P 50A Frequency range: 20...200 Hz or DC Measuring input Current over voltage: Without measuring input Voltage: 80 VAC / 100 VDC Auxiliary power: 12…30 V DC Bus connection: RS485 (RTU) Standard protocol: Modbus output: Without measuring variables: Standard test protocol: None.
