Camille Bauer SIRAX CT230-A12 178675 Current transformer attachment Primary current 1500 A Secondary current 5 A Line fe
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details

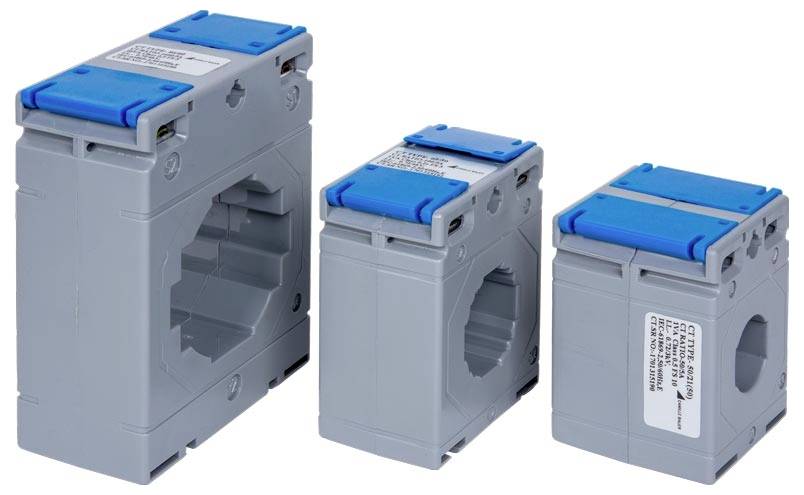

Current transformer attachment
- Input current (current) 1500 A
- Output current 5 A
- Line feed-through diameter 51 mm
Technical specifications
- Product type
Current transformer attachment
- Fitting type
DIN rail mount
- Primary current
1500 A
- Secondary current
5 A
10 W
- Line feed-through diameter
51 mm
- Accuracy class
0.2
- Type
SIRAX CT230-A12
- Output current
5 A
- Input current
1500 A
- Line feed-through (W)
60 mm
- Line feed-through (H x W)
51 x 60 mm
- Line feed-through (H)
51 mm
Attachable current transformer
10 W
51 mm
1
FALSE
1500 A
TRUE
10 VA
5 A
FS 5
TRUE
FALSE
0.2
12-30 mm
50-60 mm
Screw connection
Documents & Downloads
Datasheet
Datasheet 3531953 Camille Bauer SIRAX CT230-A12 178675 Current transformer attachment Primary current 1500 A Secondary current 5 A Line fe
User & Safety Instructions
User & Safety Instructions 3531953 Camille Bauer SIRAX CT230-A12 178675 Current transformer attachment Primary current 1500 A Secondary current 5 A Line fe
Conformity certificate
Conformity certificate 3531953 Camille Bauer SIRAX CT230-A12 178675 Current transformer attachment Primary current 1500 A Secondary current 5 A Line fe
Description
Current transformers for indirect measurement of sinusoidal AC. Plug-in current transformers are used wherever high currents have to be detected and processed. They are attached directly through the opening onto the primary conductor (conductor rail or cable). . The secondary side (usually a measuring device, an energy meter or a display) is connected via the terminals on the front and rear side. The clip-on current transformer is the most reliable, accurate and cost-effective execution of current transformers. However, the primary conductor must be disconnected during installation. For this reason, they are more suitable for the construction of new plants. Safe housing with Hohem Flame protection Manipulation protection by lead-sealable covers Protection against contamination through optimized housing Closed coil body High measuring accuracy up to class 0.2S Large selection of rated sizes and dimensions Simple and fast mounting Secure connection technology via screw terminals Suitable for round conductors, copper rails, mounting rails Various mounting possibilities like wall mounting, cable mounting, Rail mounting or DIN rail mounting is available free of maintenance. Primary current: 1500 A Secondary current: 5 A Accuracy class: 0.2 Output: 10 VA Primary conductor: 60 x 12 mm, 50 x 20 mm, 50 x 30 mm Round conductor: 51 mm.
