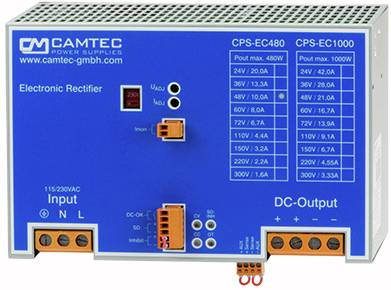

Name: Camtec CPS-EC480.036(R2) AC/DC industrial PSU module 480 W
Brand: Camtec
SKU: 3558239

Highlights & Details

Camtec AC/DC- industrial power supply unit 480W 36V 36V 14.000A

Output /
Power 480 W

Technical specifications

INSULATION VOLTAGE I/P-O/P 3,000 V
INSULATION VOLTAGE I/P-FG 2,500 V
INSULATION VOLTAGE O/P-FG 500 V

Product type: AC/DC industrial PSU module

Input voltage (max.): 264 V AC
375 V DC

Min. input voltage: 184 V AC
250 V DC

Dim: (L x W x H) 130 x 114.5 x 200 mm

: 480 W

Input frequency: 47 - 63 Hz

Efficiency to: 92 %

: IP20

Protection class: I

Output voltage 1: 36 V

Output current 1: 14.000 A

Operating temperature (max.): 70 °C

Operating temperature (min.): -25 °C

Weight: 2.900 g

Width: 114.5 mm

Height: 200 mm

Length: 130 mm

Type: CPS-EC480.036(R2)

Documents & Downloads

Datasheet

Datasheet 3558239 Camtec CPS-EC480.036(R2) AC/DC industrial PSU module 480 W

User & Safety Instructions

User & Safety Instructions 3558239 Camtec CPS-EC480.036(R2) AC/DC industrial PSU module 480 W

Description

The Camtec CPS-EC series is a high-precision switching power supply for enhanced demands. The device is C/V adjustable. It is developed and manufactured by Camtec in Germany. The device is designed for demanding applications such as railway, complex drives, battery charging for DC-UPS, test stands, mechanical engineering and professional LED-lighting. The power supply offers a low residual ripple, a precise load control and a high degree of efficiency of up to 94%. High-quality long life capacitors ensure a long bridging time and an extraordinary life of the power supply. The circuit design easily switches complex loads into operation. The internal control loop manages illegal operating conditions to protect your system from damage. The CPS-EC-series possesses an active protection against high input transients with suppressor diodes, X2-capacitors and varistors. All inputs, outputs and function connections are electrically isolated. The design rules place great emphasis on enhanced immunity and safety. The device is designed in accordance with the standards EN60950-1, EN62368-1, EN61010-1, EN61010-2-201 and EMC compatibility according to EN55022. - Camtec

This text is machine translated.
