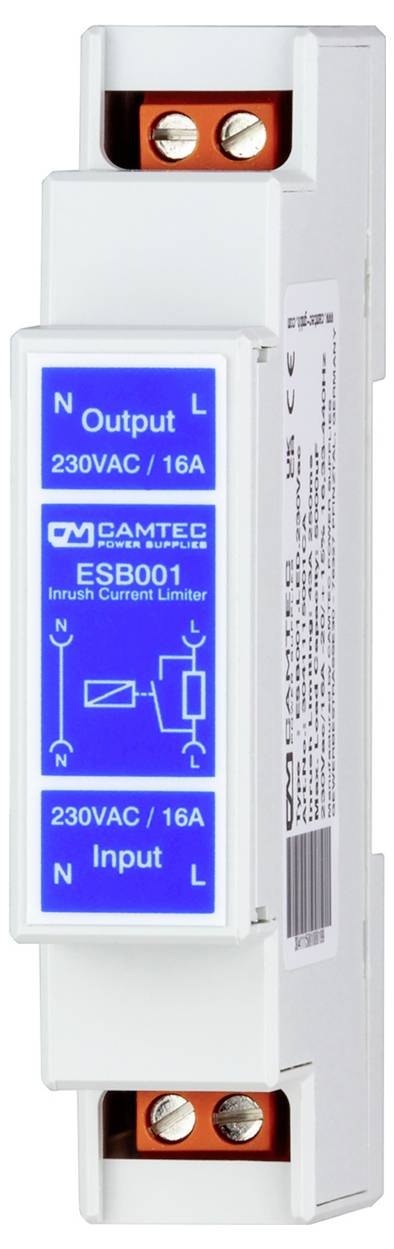

Camtec ESB001.24.230VAC Camtec switch-on current limiter 24A 250ms 2.200µF DIN rail IP20
Part number:
Item no:
Sales and shipping:
Conrad ElectronicTerms & Conditions
Technical specifications
- Peak current limit 24 A
- Limit time 250 ms
- Capacity load, max. 2,200 µF
- Input voltage
184 V AC
264 V AC
- Dim
(W x H x D) 17.9 x 89.5 x 62.8 mm
- Weight
70 g
- Type A
Screw terminals
- Type B
Screw terminals
- Width
17.9 mm
- Height
89.5 mm
- Depth
62.8 mm
IP20
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3558325 Camtec ESB001.24.230VAC Camtec switch-on current limiter 24A 250ms 2.200µF DIN rail IP20
Description
The ESB001 is an affordable inrush current limiter for high loads in LED applications, complex automation systems and in mechanical engineering. The ESB001 offers an effective and trouble free operation with capacitive loads. It is easy to integrate into existing plants. The ESB001 is self-powered and does not require any external power supply.
