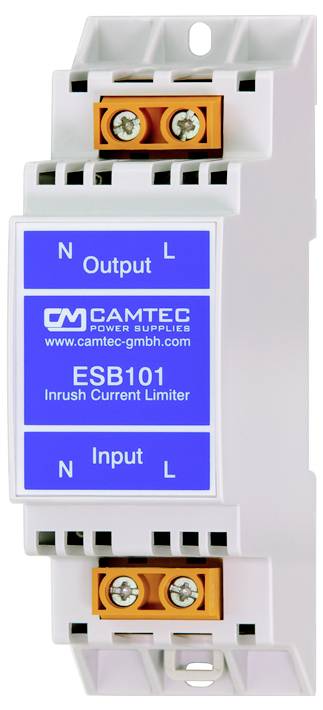

Camtec ESB101.05UPS(R2) Camtec switch-on current limiter 5A 300ms 1.000µF DIN rail IP20
Part number:
Item no:
Datasheet (PDF)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Technical specifications
- Peak current limit 5 A
- Limit time 300 ms
- Capacity load, max. 1,000 µF
- Input voltage
184 V AC
264 V AC
- Dim
(W x H x D) 36.5 x 110 x 62 mm
- Weight
120 g
- Type A
Screw terminals
- Type B
Screw terminals
- Width
36.5 mm
- Height
110 mm
- Depth
62 mm
IP20
Documents & Downloads
Datasheet
Datasheet 3558331 Camtec ESB101.05UPS(R2) Camtec switch-on current limiter 5A 300ms 1.000µF DIN rail IP20
User & Safety Instructions
User & Safety Instructions 3558331 Camtec ESB101.05UPS(R2) Camtec switch-on current limiter 5A 300ms 1.000µF DIN rail IP20
Description
The ESB is a low-cost inrush current limiter for high loads in LED applications, complex automation systems and in mechanical engineering. The ESB101 offers effective and trouble free operation with capacitive loads. It can be easily integrated into existing plants. The ESB101 is self-sufficient and does not require external power supply.
