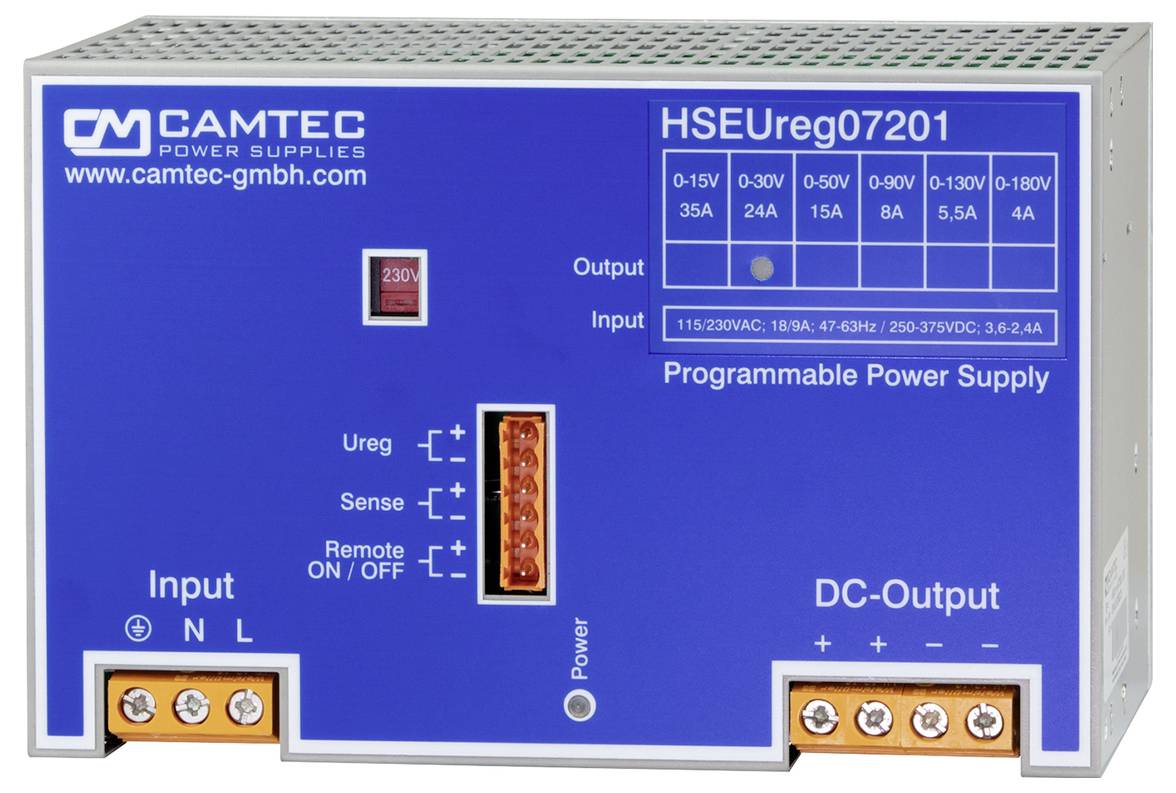

Camtec HSEUREG07201.180(R2) Rail mounted PSU (DIN) 180 V 720 W Content 1 pc(s)
Datasheet (PDF)
Part number:
Item no:
Sales and shipping:
Conrad ElectronicTerms & Conditions
Highlights & Details
Camtec AC/DC- Industrial power supply 720W 180V 4A 0-10 Volt 0-20 mA
- Programmable output voltage
- DC compatible
- REMOTE Function
- Remote sense
Technical specifications
- INSULATION VOLTAGE I/P-O/P 3,000 V
- INSULATION VOLTAGE I/P-FG 2,500 V
- INSULATION VOLTAGE O/P-FG 2,000 V
- Product type
Rail mounted PSU (DIN)
- Min. input voltage
90 V AC
250 V DC
- Input voltage (max.)
264 V AC
375 V DC
720 W
- Output type (power supply units)
Adjustable
- Phases
1
- Output voltage (nominal)
180 V
- Connection
Screw terminal
- Dim
(L x W x H) 115 x 200 x 130 mm
- Weight
3.000 g
- Output voltage (max.)
180 V
- Operating temperature (max.)
70 °C
- Operating temperature (min.)
-25 °C
- Manufacturer part #
HSEUREG07201.180(R2)
- Content
1 pc(s)
- PSU features
Adjustable voltage output
- Width
200 mm
- Height
130 mm
- Length
115 mm
IP20
- Type
HSEUREG07201.180(R2)
- Efficiency
90 %
